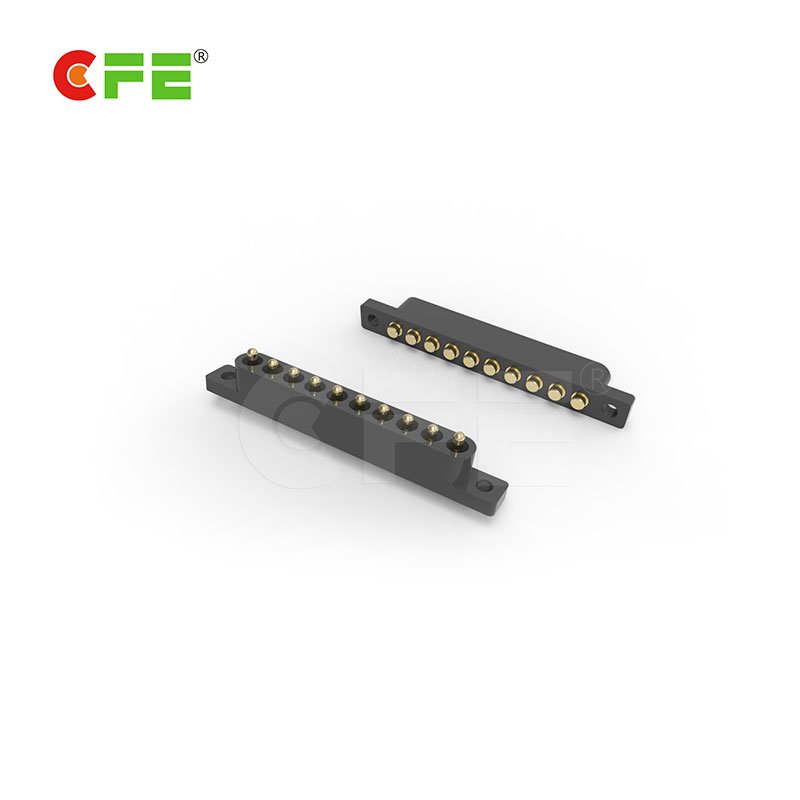

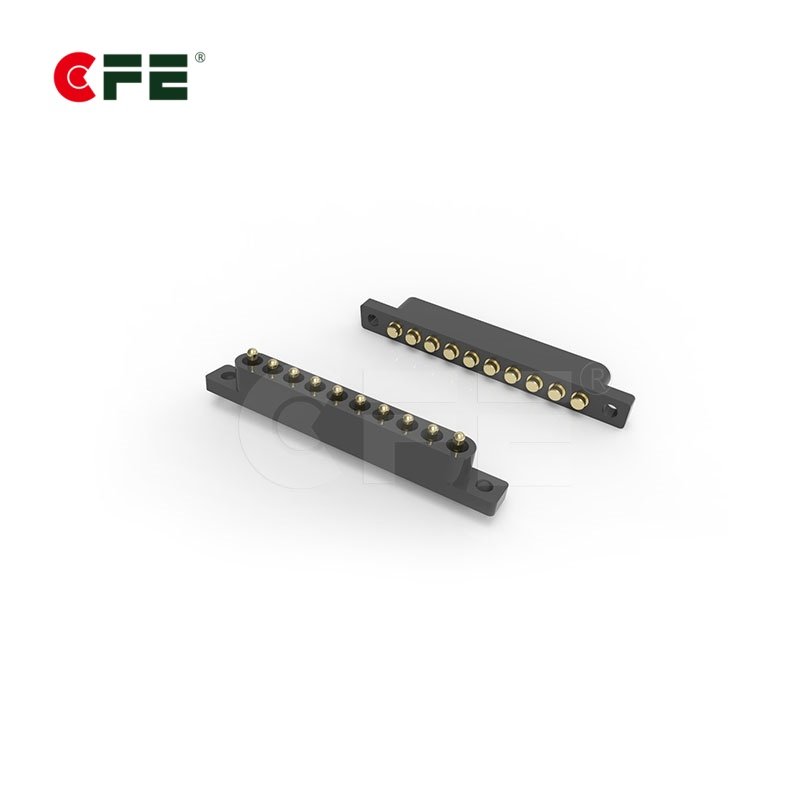

[BP30061-10250H0A] 10 pin smt smd pogo pin spring connector

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze
  • Plating: Gold plated (According to customer requirements)
  • Spring: SUS surface treatment
  • Life test:20,000 cycles
  • Rated current & voltage: DC 12V; 1A
Inquiry Now

Description

10 pin smt smd pogo pin spring connector supplier in China. Flat SMT pogo pin type with stable quality. The bottom of barrel is designed as flat shape, easy to be mounted on PCB. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

CFE Pogo Pin Connector Advantages

  • We have 14 years experience for pogo pin connector, high current connection, high life cycles, low impedance,corrosion resistance and other reliability.
  • Customize high current pogo pin more 1600 items(2A-30A).
  • Customize Pogo pin connector more 300 items(2pin-30pin).
  • Development 1.27Pitch 2-40pin standard products(6mm-15mm height).
  • 2.54mm pitch 2.5mm & 4.0mm housing,1-68pin standard products, 2-128pin double row standard pogo pin connector products (4.5mm-15mm height) SMT/DIP/Right Angle/Solder Cup.
  • Development low height pogo pin 1.3mm-4.4mm for customer options.

Specification of 10 pin smt smd pogo pin spring connector


10 pin smt smd pogo pin spring connector

PDF download

Part No. BP30061-10250H0A
Materials Plunger Brass 0.075um Au over Ni
Barrel Brass 0.075um Au over Ni
Spring SUS surface treatment
Mechanical Contact force 45g±20g at 1.5mm working stroke
Full stroke 1.7mm
Life test 20,000 cycles
Electrical Rated current and voltage DC 12V; 1A
Contact-resistance 50 milliohm Max

Drawing of 10 pin smt smd pogo pin spring connector

10 pin smt smd pogo pin spring connector

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us



Application of pogo pin connector

CFE pogo pin connector & spring loaded connector

Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details

  • Consumer electronics products/PCB board
  • Digital camera/Medical products/ Printer cartridges
  • Golf handle/ Electric vehicles/ Telephony applications
  • Cardiac defibrillator/Car charging /Air purifier
  • LED flat luminaries/LED flash light/Tablet/Laptop/PC
  • Power bank/ Digital product/ Small household electrical application
  • Charging products/Signal transmission products etc

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread

You may like our customized pogo pin connector

Contact us

Dongguan CFE Electronic Co., Ltd. is a China leading precision spring-loaded connector manufacturing company. We focused on the development and manufacture of Pogo Pin & connector 9 years long.  As the leading electronic components manufacturer in China,  CFE has accomplished over 300 customized Pogo Pin chargers range from 2 pins to 30 pins. We also achieved the innovation of Pogo Pin product, which is the first invention in the Asian, the second invention around the world. What’s more, CFE also provides the short delivery times and competitive price for our clients. Learn more about us
