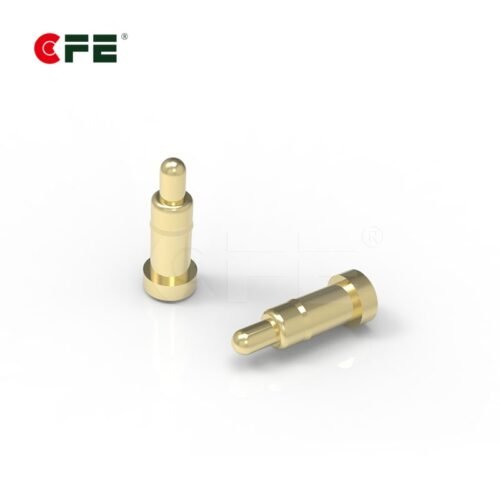

[BP77031]12V 10A Waterproof spring loaded contact pin

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze
  • Plating: Gold plated (According to customer requirements)
  • Spring: SUS surface treatment
  • Life test:50,000 cycles
  • Rated current & voltage: DC 12V; 3A
Inquiry Now

Description

12V 10A Waterproof spring loaded contact pin manufacturer in China. Our spring Pogo pin or spring loaded pins, is reliable quality and quick to install. Bending tail design of barrel of these right angle Pogo pin offers engineers to have more choices on space adjustment. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

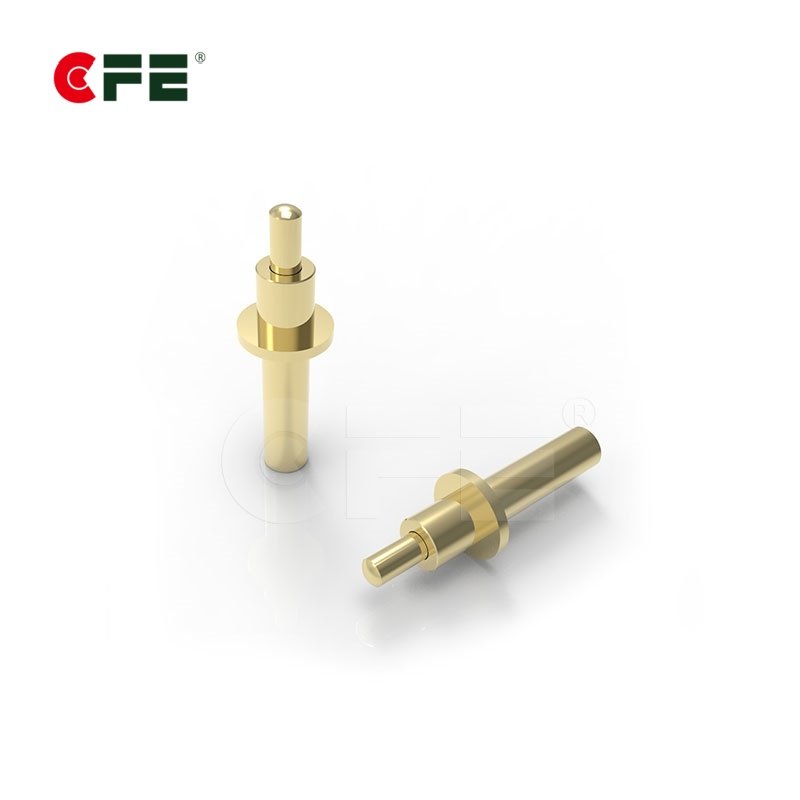

12V 10A Waterproof spring loaded contact pin


12V 10A waterproof spring loaded contact pin

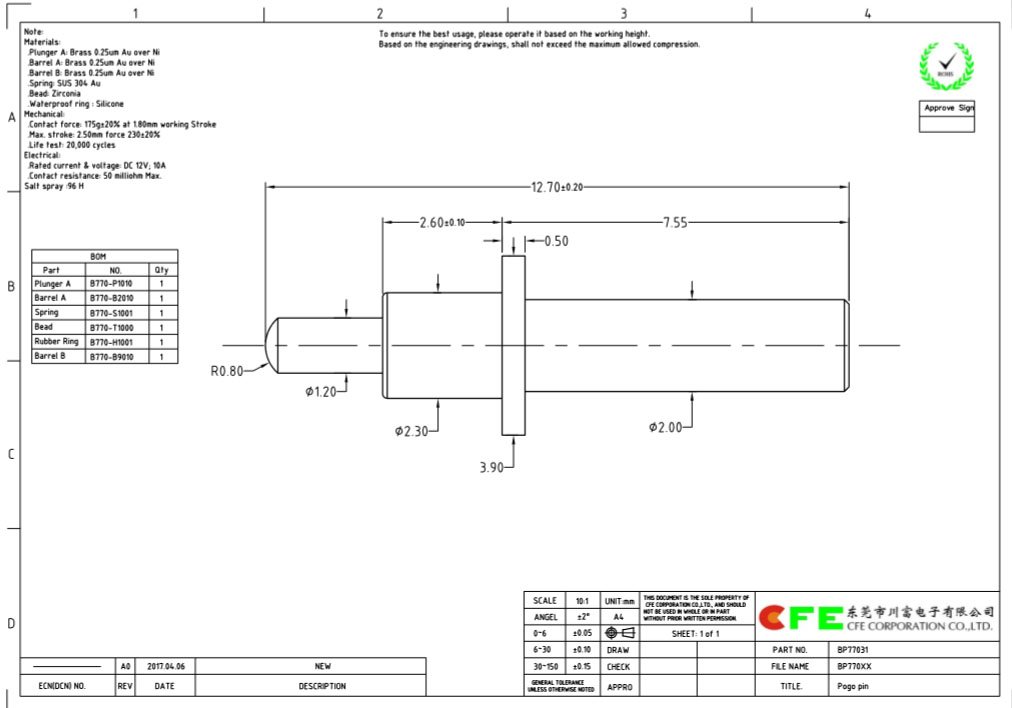

PDF download

Part No. BP77031
Materials Plunger Brass 0.125um Au over Ni
Barrel Brass 0.125um Au over Ni
Spring SUS surface treatment
Mechanical Contact force 175g±20% at 1.8mm working stroke
Full stroke 2.5mm
Life test 20,000 cycles
Electrical Rated current and voltage DC 12V;10A
Contact-resistance 50 milliohm Max



12V 10A Waterproof spring loaded contact pin

 High current spring loaded contacts for sale

The unit of  A, B, C, D, E, F, G and Stroke is mm

Part NO.A B C D E F G H Stroke(mm)Force(g)Current(A)PDF
BP003116.804.800.804.503.002.001.85/1.503002
BP003226.804.800.804.503.002.001.85/1.00903
BP094017.104.001.003.502.501.807.5014.003.001201
BP094027.104.001.003.502.501.805.009.003.001201
BP101115.002.85//2.001.500.5015.951.201102
BP101215.002.85//2.501.900.5017.551.501102
BP101314.902.85//2.001.500.5010.351.201202
BP30841-06254E0A8.005.30///1.002.005.001.00703
BP32011-04508E0A7.005.30///1.002.003.001.00703
BP416115.504.300.401.801.481.002.008.001.00703
BP43401-06254H0B3.602.90/1.501.80/2.004.50//1
BP43411-06254H0A6.104.600.801.501.501.002.003.001.00701
BP478118.006.800.401.801.481.002.003.001.00703

Learn more about How to order special pogo pin, If you have special requirements please contact us

You may like our customized pogo pin connector

Application of 12V 10A Waterproof spring loaded contact pin



Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details

  • Consumer electronics products/PCB board
  • Digital camera/Medical products/ Printer cartridges
  • Golf handle/ Electric vehicles/ Telephony applications
  • Cardiac defibrillator/Car charging /Air purifier
  • LED flat luminaries/LED flash light/Tablet/Laptop/PC
  • Power bank/ Digital product/ Small household electrical application
  • Charging products/Signal transmission products etc
