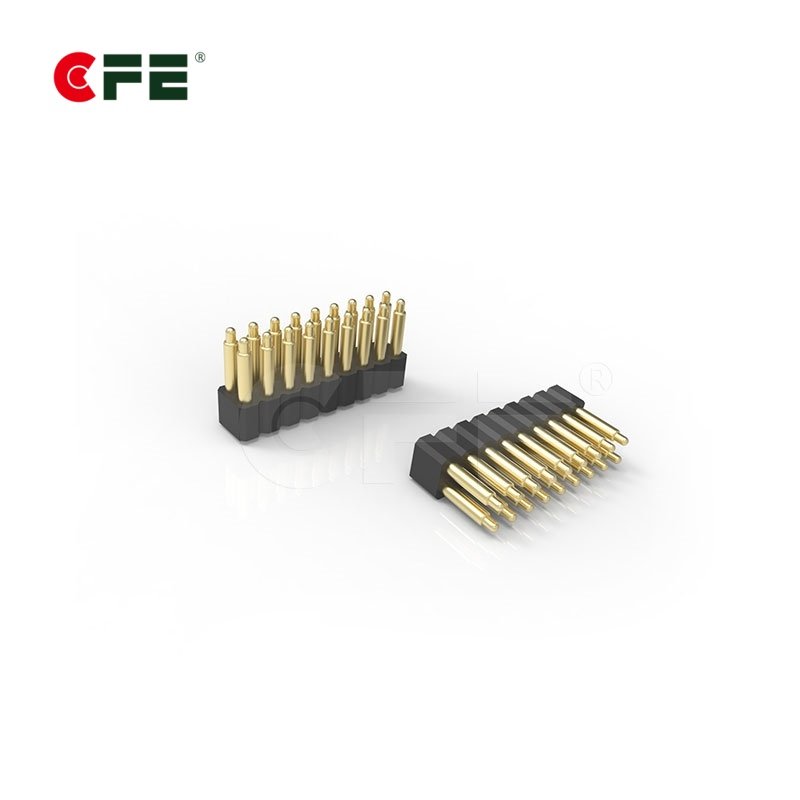

[BF83911-18254F0A] 18 pin customize pogo pin factory China

Description

18 pin customize pogo pin factory China. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

CFE Pogo Pin Connector Advantages

• We have 14 years experience for pogo pin connector, high current connection, high life cycles, low impedance,corrosion resistance and other reliability.
• Customize high current pogo pin more 1600 items(2A-30A).
• Customize Pogo pin connector more 300 items(2pin-30pin).
• Development 1.27Pitch 2-40pin standard products(6mm-15mm height).
• 2.54mm pitch 2.5mm & 4.0mm housing,1-68pin standard products, 2-128pin double row standard pogo pin connector products (4.5mm-15mm height) SMT/DIP/Right Angle/Solder Cup.
• Development low height pogo pin 1.3mm-4.4mm for customer options.

Specification of 18 pin customize pogo pin

	Part No.	BF83911-18254F0A
	Materials	Plunger	Brass Au 3u” over Ni
		Barrel	Brass 0.125um Au over Ni
		Spring	SUS surface treatment
	Mechanical	Contact force	90g±20g at 1.0mm working stroke
		Full stroke	1.4mm
		Life test	50,000 cycles
	Electrical	Rated current and voltage	DC 12V; 1A (Can be customized)
		Contact-resistance	50 milliohm Max

Application of 9 pin SMT SMD customized pogo pin China

Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details

• Consumer electronics products/PCB board
• Digital camera/Medical products/ Printer cartridges
• Golf handle/ Electric vehicles/ Telephony applications
• Cardiac defibrillator/Car charging /Air purifier
• LED flat luminaries/LED flash light/Tablet/Laptop/PC
• Power bank/ Digital product/ Small household electrical application
• Charging products/Signal transmission products etc

Learn more type of Pogo pin

SMT/SMD		DIP		Right angle		Double head		Solder cup		Screw thread
