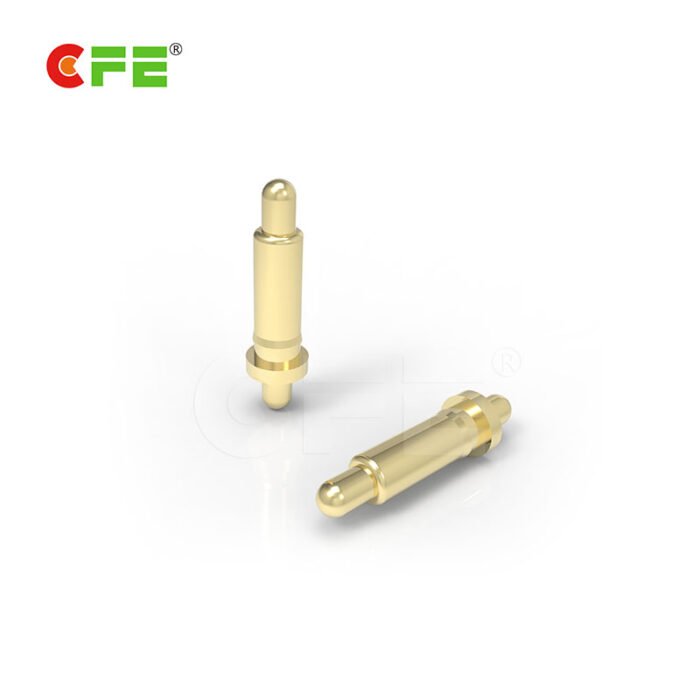

[BD46711] 1a double head spring loaded contacts

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze
  • Plating: Gold plated (According to customer requirements)
  • Spring: SUS surface treatment
  • Life test:20,000 cycles
  • Rated current & voltage: DC 12V; 1A
Inquiry Now

Description

1a double head spring loaded contacts manufacturer in China. Double Head design offers engineers to have more choices of flexible space adjustment on board-to-board connection. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

Specification of Double head pogo pin

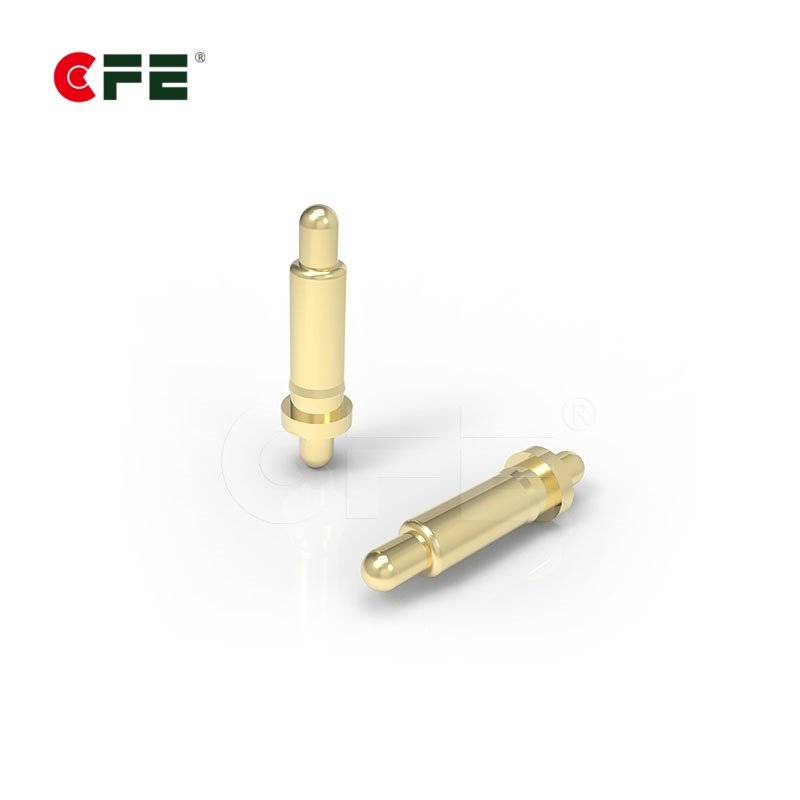

1a double head spring loaded contacts

PDF download

Part No. BD46711
Materials Plunger Brass 0.25um Au over Ni
Barrel Brass 0.125um Au over Ni
Spring SUS 304 surface treatment
Mechanical Contact force 90g±20g at 1.4mm working stroke
Full stroke 1.8mm
Life test 20,000 cycles
Electrical Rated current and voltage DC 12V; 1A
Contact-resistance 50 milliohm Max



Drawing of 1a double head spring loaded contacts

1a double head spring loaded contacts



To ensure the best usage, please operate it based on the working height. Based on the engineering drawings, shall not exceed the maximum allowed compression.

Customized service

Double Head Pogo Pin

The unit of  A, B, C, D, E, F, G and Stroke is mm

Part NO.ABCDEFGStroke(mm)Force(g)Current(A)PDF
BD021118.505.20//1.500.900.901.71201
BD075113.452.450.301.000.800.400.400.6451
BD132119.206.20//3.002.002.002.01201
BD1411110.005.80//1.501.001.00/501
BD141219.705.80//1.501.001.002.8501
BD159117.003.10/2.001.500.800.802.0501
BD186116.403.500.502.001.500.900.900.7801
BD453118.105.500.502.001.501.001.001.6701
BD453227.306.000.502.001.501.001.001.6701
BD467117.704.70/2.001.481.001.001.4901
BD477118.506.00/2.001.481.001.002.0801
BD480116.103.70/1.801.501.001.001.61001
BD597219.907.900.501.801.481.001.002.0803

Learn more about How to order special pogo pin, If you have special requirements please contact us

You may like our customized pogo pin connector

Application of 1a double head spring loaded contacts



Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details

  • Consumer electronics products/PCB board
  • Digital camera/Medical products/ Printer cartridges
  • Golf handle/ Electric vehicles/ Telephony applications
  • Cardiac defibrillator/Car charging /Air purifier
  • LED flat luminaries/LED flash light/Tablet/Laptop/PC
  • Power bank/ Digital product/ Small household electrical application
  • Charging products/Signal transmission products etc

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread

Contact us
