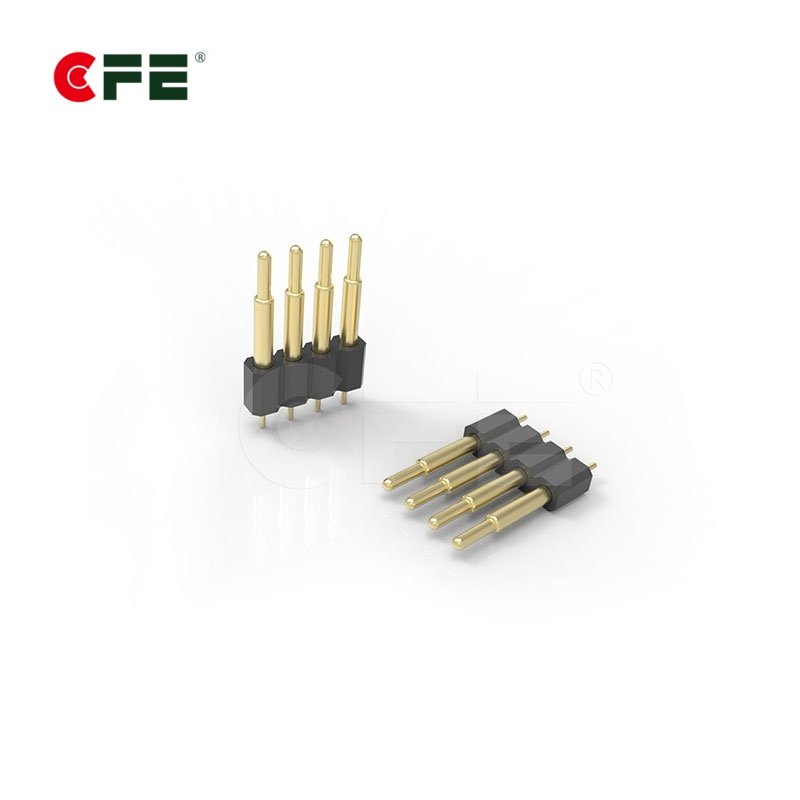

[MP512-3122-E04100A] 2.54 mm 4 pin pogo pin electrical spring connectors

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze
  • Plating: Gold plated (According to customer requirements)
  • Spring: SUS surface treatment
  • Life test:100,000 cycles
  • Rated current & voltage: DC 12V; 3A
Inquiry Now

Description

DIP type 2.54 mm 4 pin pogo pin electrical spring connectors supplier in China. DIP type pogo pin with positioning pin on the bottom of barrel. Hard to shift after mounted on PCB Good performance on positioning. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

Advantages of our factory

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Specification of 2.54 mm 4 pin pogo pin electrical spring connectors


2.54 mm 4 pin pogo pin electrical spring connectors

PDF download

Part No. MP512-3122-E04100A
Materials Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70g±20g at 1.0mm working stroke
Full stroke 1.4mm
Life test 100,000 cycles
Electrical Rated current and voltage DC 12V; 3A
Contact-resistance 50 milliohm Max

Drawing of the 2.54 mm 4 pin pogo pin electrical spring connectors

2.54 mm 4 pin pogo pin electrical spring connectors

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us



Application of 2.54 mm 4 pin pogo pin electrical spring connectors

CFE pogo pin connector & spring loaded connector

Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details

  • Consumer electronics products/PCB board
  • Digital camera/Medical products/ Printer cartridges
  • Golf handle/ Electric vehicles/ Telephony applications
  • Cardiac defibrillator/Car charging /Air purifier
  • LED flat luminaries/LED flash light/Tablet/Laptop/PC
  • Power bank/ Digital product/ Small household electrical application
  • Charging products/Signal transmission products etc
