[MP320-1111-E03100A] 2.54 mm pich right angle pogo pin connector supplier

Home/POGO PIN CONNECTORS/POGO PIN CONNECTOR/2.54mm Pitch Right Angle Pogo Pin Connector/[MP320-1111-E03100A] 2.54 mm pich right angle pogo pin connector supplier

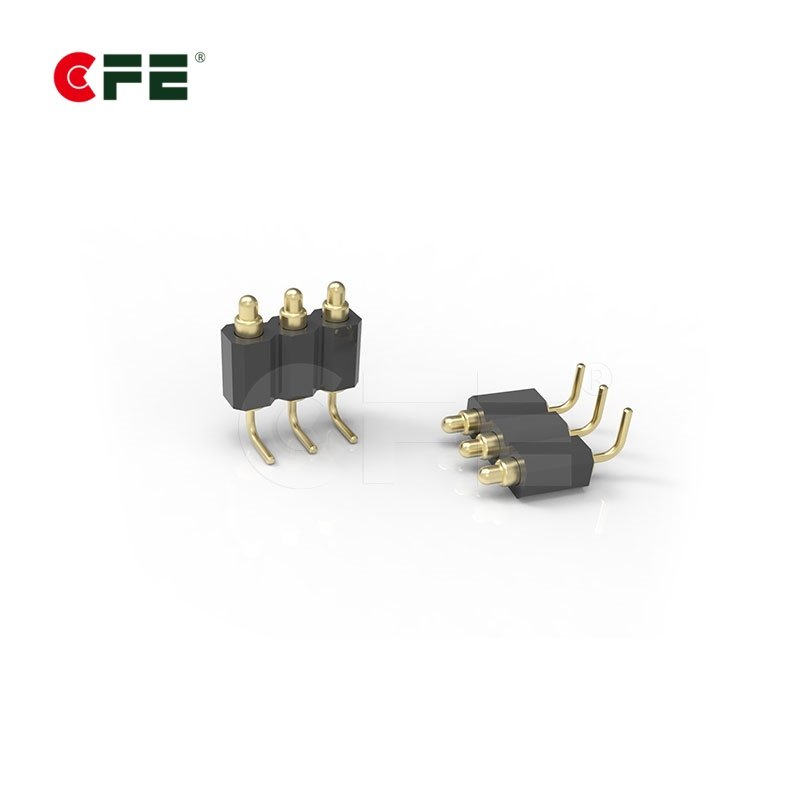

[MP320-1111-E03100A] 2.54 mm pich right angle pogo pin connector supplier

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze

  • Plating: Gold plated (According to customer requirements)

  • Spring: SUS surface treatment

  • Life test:100,000 cycles

  • Rated current & voltage: DC 12V; 3A

Inquiry Now

Description

2.54 mm pich right angle pogo pin connector supplier in China. Right angle Type Pogo pin can be bending tail of barrel offers engineers to have more choices on space adjustment. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

Advantages of our factory

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Specification of 2.54 mm pich right angle pogo pin connector


2.54 mm pich right angle pogo pin connector supplier

PDF download

Part No. MP320-1111-E03100A
Materials Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70g±20g at 1.0mm working stroke
Full stroke 1.4mm
Life test 100,000 cycles
Electrical Rated current and voltage DC 12V; 3A
Contact-resistance 50 milliohm Max

Drawing of the 2.54 mm pich right angle pogo pin connector

2.54 mm pich right angle pogo pin connector supplier

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us



Application of 2.54 mm pich right angle pogo pin connector

CFE pogo pin connector & spring loaded connector

Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details

  • Consumer electronics products/PCB board
  • Digital camera/Medical products/ Printer cartridges
  • Golf handle/ Electric vehicles/ Telephony applications
  • Cardiac defibrillator/Car charging /Air purifier
  • LED flat luminaries/LED flash light/Tablet/Laptop/PC
  • Power bank/ Digital product/ Small household electrical application
  • Charging products/Signal transmission products etc

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread

You may like our customized pogo pin connector

Contact us
