[MF501-1155-E04100A] 2.54 mm pitch SMT spring loaded electrical connectors

[MF501-1155-E04100A] 2.54 mm pitch SMT spring loaded electrical connectors

  • 2.54 mm pitch spring loaded electrical connectors
  • Easily adapted to customer needs
  • Spring strength can be measured and regulated
  • Excellent performance and specially suitable for high-frequency application
Inquiry Now

Description

2.54 mm pitch SMT spring loaded electrical connectors.The headers feature a round stub-tail termination providing the benefit of a reduced solder footprint inside the package outline. Pins are gold-plated in high temperature thermoplastic that providing a highly reliable and durable connection. All of our CFE spring loaded connector have a high durability, exceeding 10,000 mating cycles.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

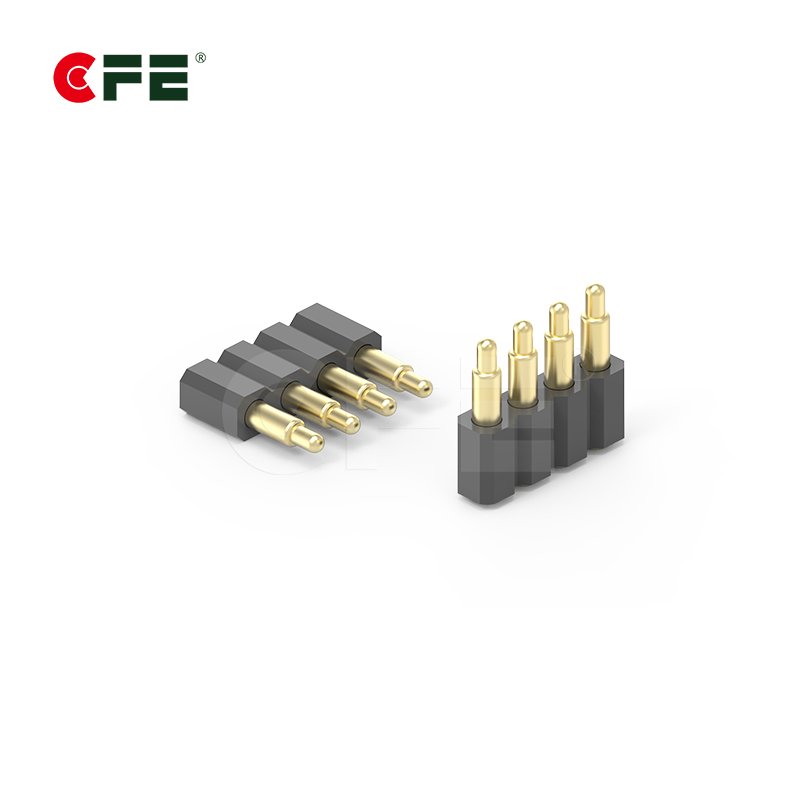

Details of 2.54 mm pitch SMT spring loaded electrical connectors


 2.54 mm pitch SMT spring loaded electrical connectors

Download PDF

Part No. MF501-1155-E04100A
Materials Insulator Black high (265℃) plastics UL94 V-0
Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70g+20% at 1.0mm working stroke
Full stroke 1.40mm
Life test 100,000 cycles
Electrical Rated current and voltage DC 12V,3A max
Contact-resistance 50  milliohms max .The contact is more stable and the conductivity will be better

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us
