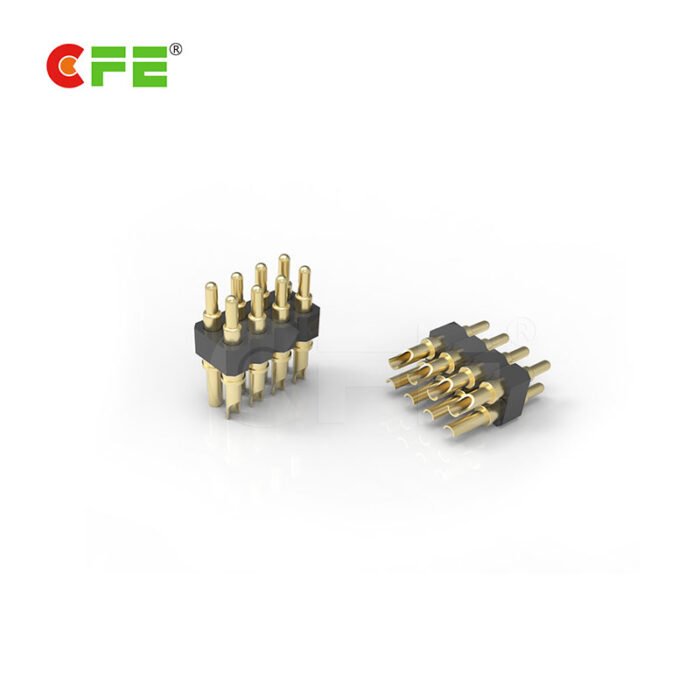

[MS330-4111-B08100A] 2.54 mm pitch solder cup spring loaded contacts connector

[MS330-4111-B08100A] 2.54 mm pitch solder cup spring loaded contacts connector

  • 2.54 mm pitch spring loaded contactors

  • Maximum Continuity: Precision-machined gold-plated components

  • A low-resistance spring maintain a consistent electrical path

  • Maximum Endurance: 100,000 cycles and still electrically silent

Inquiry Now

Description

2.54 mm pitch solder cup spring loaded contacts connector. These connectors feature pins and receptacles with soldercups that can accept high current solid wires. They are a convenient and reliable method to make connections between discrete wires or cables and mating components such as PC boards or other cable assemblies.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

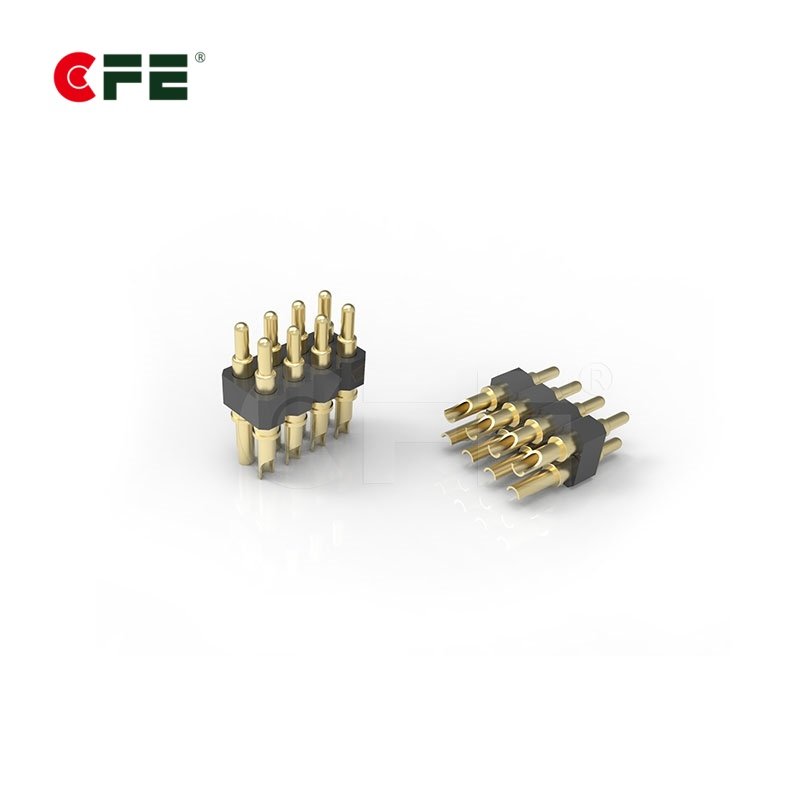

Details of 2.54 mm pitch solder cup spring loaded contacts connector


 2.54 mm pitch solder cup spring loaded contacts connector

Download PDF

Part No. MS330-4111-B08100A
Materials Insulator Black plastics(265℃) UL94 V-0
Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70g+20g at 1.0mm working stroke
Full stroke 1.40mm
Life test 100,000 cycles
Electrical Rated current and voltage DC 12V;3A max
Contact-resistance 50  milliohms max .The contact is more stable and the conductivity will be better



Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
