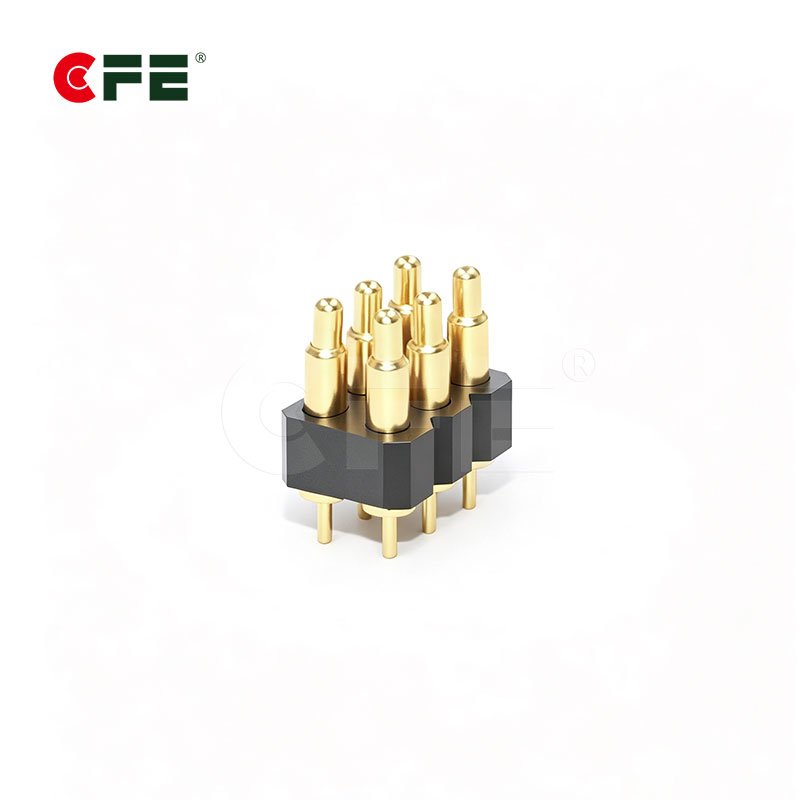

[MP315-2111-B06100A] 2.54 mm pitch spring loaded pcb pin connector

  • Insulator:Black high temperature plastic  UL94 V-0
  • Contact force: 70g±20% at 1.0mm working storke
  • Full stroke:1.40mm,Rated current & voltage: DC 12V
  • Contact resistance:50 milliohm Max,Life test:100,000 ~1,000,000 cycles
Inquiry Now

Description

2.54 mm pitch spring loaded pcb pin connector for sale has delivered excellent mechanical and electrical performance in a highly compliant. Small specific of spring loaded pcb pin connectors can be customized. The product is also high durability, can up to 1,00,000 life cycles.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

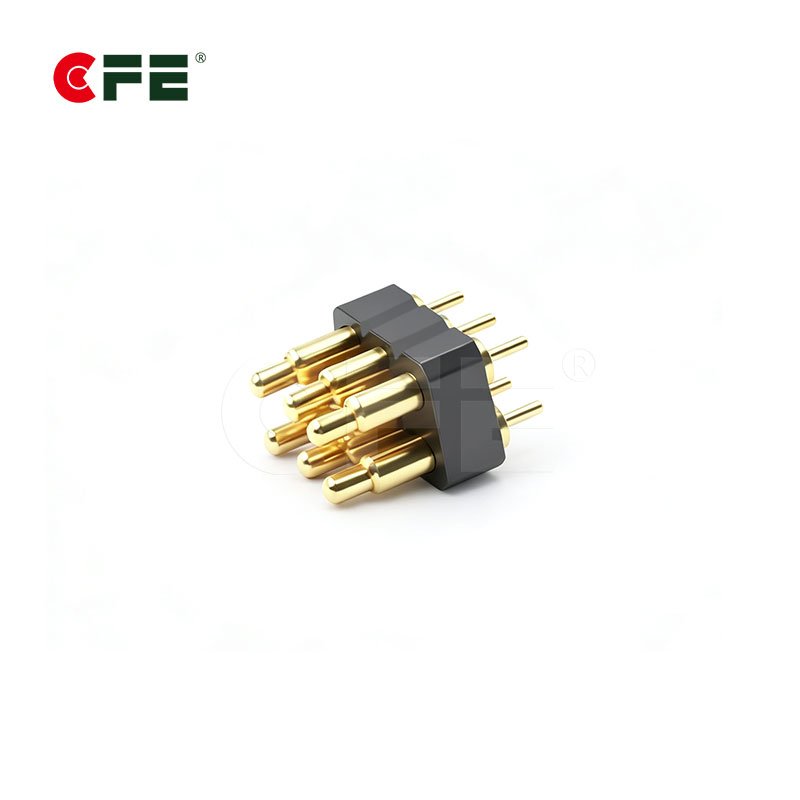

Details of 2.54 mm pitch spring loaded pcb pin connector




Download PDF

Part No. MP315-2111-B06100A
Materials Insulator Black high temperature plastics UL94 V-0
Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70g+20g at 1.0mm working stroke
Full stroke 1.40mm
Life test 100,000 cycles
Electrical Rated current and voltage DC 12V
Contact-resistance 50  milliohms max .The contact is more stable and the conductivity will be better

Type of 2.54 mm pitch spring loaded pcb pin connector

Learn more details, download our drawings

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
