- Barrel & plunger: Brass/Be-Cu/Phosphor bronze
- Plating: Gold plated (According to customer requirements)
- Spring: SUS surface treatment
- Life test:100,000 cycles
- Rated current & voltage: DC 12V; 3A

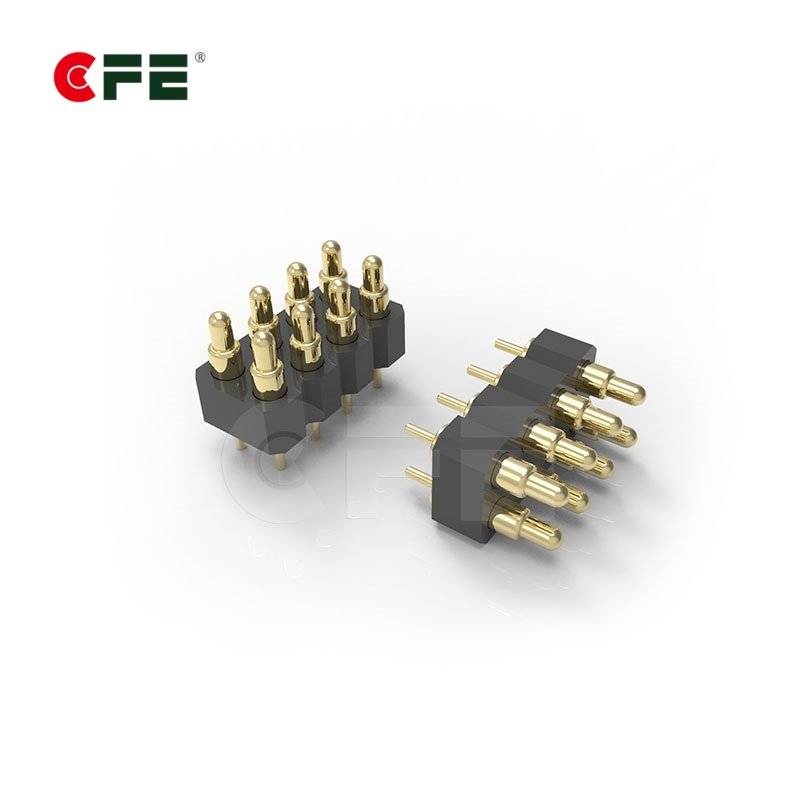

[MP210-2155-B08100A] 2.54mm DIP pogo pin spring electrical connectors
2.54mm DIP pogo pin spring electrical connectors manufacturer in China. DIP type pogo pin with positioning pin on the bottom of barrel. Hard to shift after mounted on PCB Good performance on positioning. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses
CFE Pogo Pin Connector Advantages
- We have 14 years experience for pogo pin connector, high current connection, high life cycles, low impedance,corrosion resistance and other reliability.
- Customize high current pogo pin more 1600 items(2A-30A).
- Customize Pogo pin connector more 300 items(2pin-30pin).
- Development 1.27Pitch 2-40pin standard products(6mm-15mm height).
- 2.54mm pitch 2.5mm & 4.0mm housing,1-68pin standard products, 2-128pin double row standard pogo pin connector products (4.5mm-15mm height) SMT/DIP/Right Angle/Solder Cup.
- Development low height pogo pin 1.3mm-4.4mm for customer options.
Specification of 2.54mm DIP pogo pin spring electrical connectors
|Materials||Plunger||Brass Au over Ni|
|Barrel||Brass Au over Ni|
|Spring||SUS surface treatment|
|Mechanical||Contact force||70g±20g at 1.0mm working stroke|
|Life test||100,000 cycles|
|Electrical||Rated current and voltage||DC 12V; 3A|
|Contact-resistance||50 milliohm Max|
Drawing of the 2.54mm DIP pogo pin spring electrical connectors
Application of 2.54mm DIP pogo pin spring electrical connectors
Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details
- Consumer electronics products/PCB board
- Digital camera/Medical products/ Printer cartridges
- Golf handle/ Electric vehicles/ Telephony applications
- Cardiac defibrillator/Car charging /Air purifier
- LED flat luminaries/LED flash light/Tablet/Laptop/PC
- Power bank/ Digital product/ Small household electrical application
- Charging products/Signal transmission products etc
