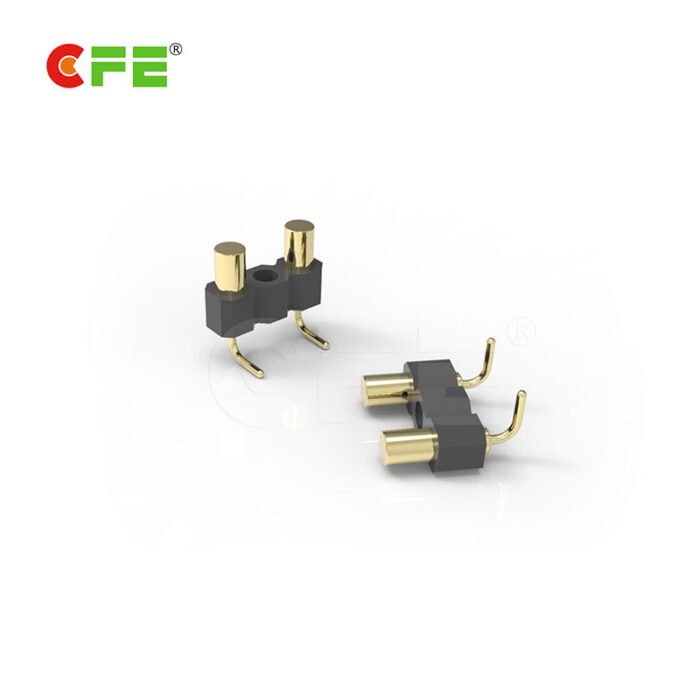

[BP84331-02254A0C] 2.54mm pitch right angle spring loaded probe pin connector

  • Maximum Endurance: 1,000,000 cycles and still electrically silent

  • Spring strength can be measured and regulated

  • Space-saving in comparison with plugs

  • RoHs Compliant and Halogen-free

Inquiry Now

Description

2.54mm pitch right angle spring loaded probe pin connector.Right angle pogo pin is typically made of 3 machined components and assembled with an internal spring to provide the range of movement required. Pogo pin contacts are availability of 2 to 64 positions (higher pin counts available upon request). Right angle pogo pin  is a device used in electronics to establish a (usually temporary) connection between two printed circuit boards.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of 2.54mm pitch right angle spring loaded probe pin connector

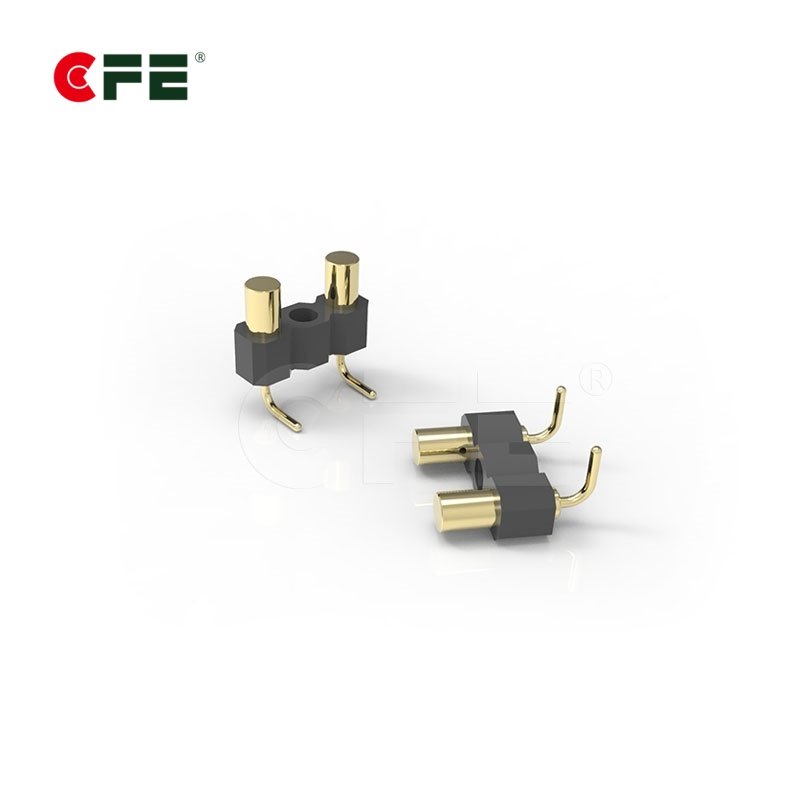

 2.54mm pitch right angle spring loaded probe pin connector

Download PDF

Part No. BP84331-02254A0C
Materials Insulator Black high temperature plastics UL94 v-0
plunger Brass Au 0.25um over Ni
Mechanical Salt spray test  48 hours
plating Au-5u”
Life test  100,000 cycles
Process CNC Turning

Application of 2.54mm pitch right angle spring loaded probe pin connector

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
