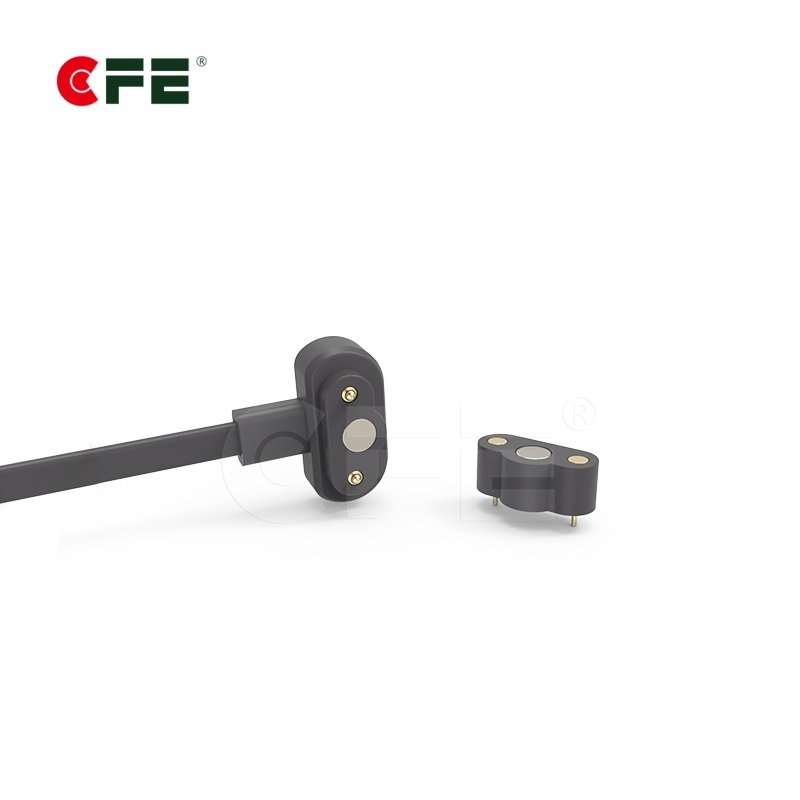

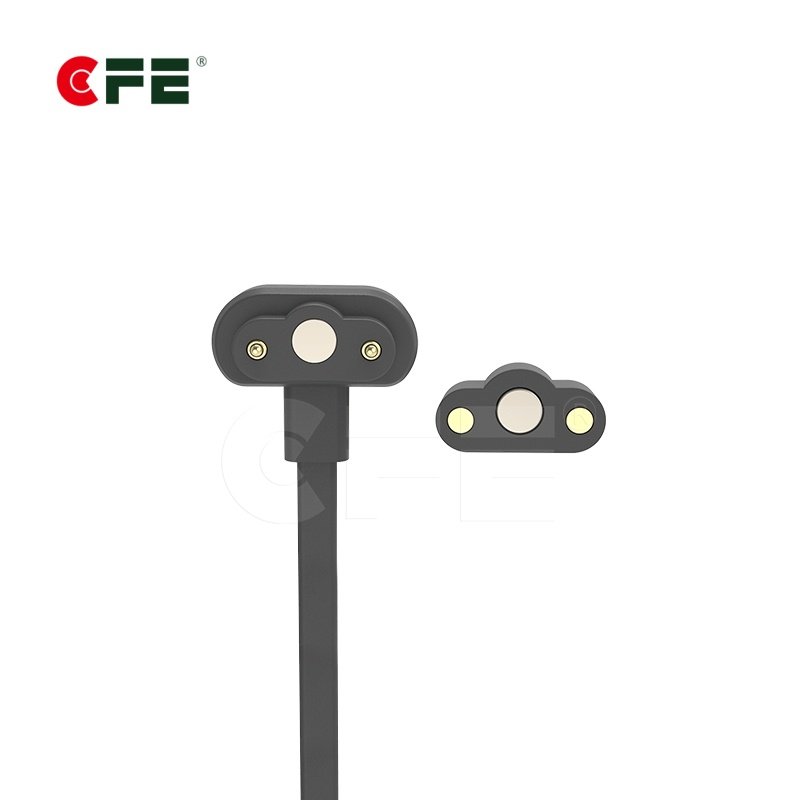

2 pin male & female magnetic connections for smart watch

[CXA-0033] 2 pin male & female magnetic connections for smart watch

P/N: CXA-0033
Magnetic force: 2.2N
Rated Voltage&Current: DC 12 V, 2 A
Life test: 20,000 cycles ,Long life
Environment: anti-corrosion,48 hours salt-spray test
Pass Rohs, reach, HF, environmental protection

Description

2 pin male & female magnetic connections for smart watch. We have 14 years experience of magnetic connector and magnetic cable connector, it’s easy to attach the smartwatch, a completely new solution, out of the ordinary. High quality, long life. What we are after is a minimalist design, to give customers a new and distinctive experience. With the development of the society, what we aspire isn’t just a product, but a fast and more efficient connection to the magnetic connector.

Specification of 2 pin male & female magnetic connections for smart watch—Male Part

Part No.	CMA-0033
Contact force	40±20 g at 0.6 mm working stroke
Life test	20,000 cycles
Rated voltage & current	12 V, 2 A
Contact resistance	50 milliohm Max
Application	smart watch

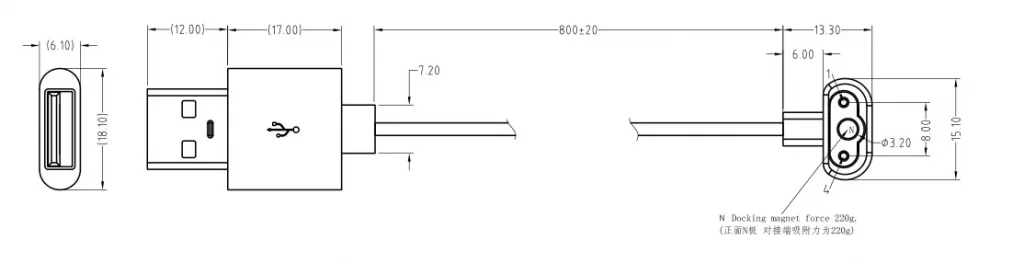

Downloaded	Drawing

Specification of 2 pin male & female magnetic connections for smart watch—Female Part

Part No.	MFA-0029
Rated voltage & current	12 V, 2 A
Contact resistance	50 milliohm Max
Application	smart watch
Downloaded	Drawing

Introduction to magnetic charging cable

— In the fierce differentiated product strategy competition, user experience has become the pursuit for any intelligent product designers. After the traditional plug-in board self-locking connector products,a new connection scheme which is the magnetic charging cable is gradually applied to the intelligent high-end product market. The connection solution has the advantages of a long life of pogo pin connector for more than 50000 times, automatic adsorption connection, easy removal of adsorption interface, high waterproof level and unlikely to loosen the machine.

— The magnetic charging cables consist of a pogo pin magnetic connector and connecting cables. It is an optimized upgraded solution based on the function of charging and statistics and signal transmission applying traditional I / O adapters, micro USB, Type-C, HDMI, RJ45. More than 20 kinds of standard magnetic charging cables and more than 300 customized ones are currently available in CFE. CFE products conform to RoHS 2.0, HF, CP65, REACH, NP, etc.

— The applications of magnetic cables enjoy increasing popularity such as Consumer Electronics, Smart Wear, Smart Home, Health Detectors, Internet of Things, Medical Industry, Household Appliances, etc.
