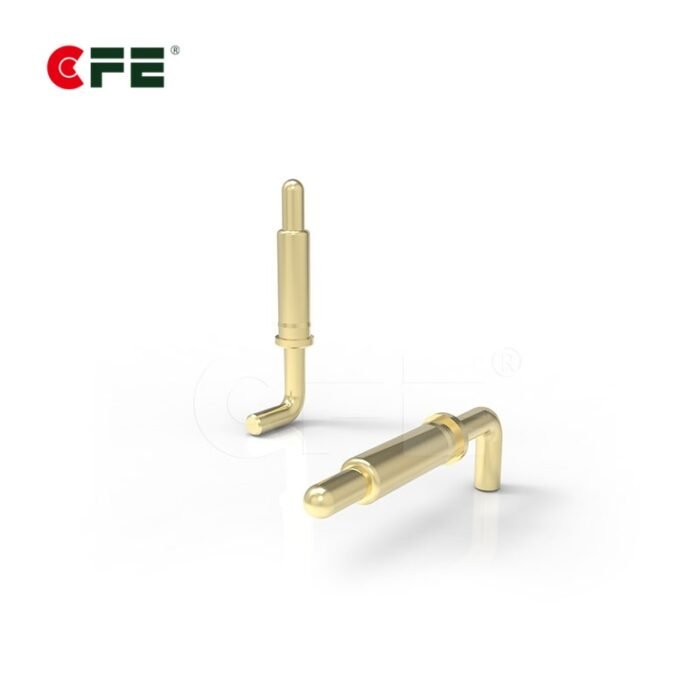

[BP48311] 2a pogo pin spring pin right angel type

[BP48311] 2a pogo pin spring pin right angel type

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze
  • Plating: Gold plated (According to customer requirements)
  • Spring: SUS surface treatment
  • Life test:50,000 cycles
  • Rated current & voltage: DC 12V; 2A
Inquiry Now

Description

2a pogo pin spring pin right angel type supply in China. Our right angle pogo pin or spring loaded pins, is reliable quality and quick to install. Bending tail design of barrel of these right angle pogo pin offers engineers to have more choices on space adjustment. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

Advantages of our factory

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Specification of 2a pogo pin spring pin right angel type


2a pogo pin spring pin right angel type

PDF download

Part No. BP48311
Materials Plunger Brass 0.5um Au over Ni
Barrel Brass 0.5um Au over Ni
Spring SUS 304 Au
Mechanical Contact force 70g±20g at 1.0mm working stroke
Full stroke 1.4mm
Life test 50,000 cycles
Electrical Rated current and voltage DC 12V; 2A
Contact-resistance 50 milliohm Max



Customized service

 right angle pogo pin

The unit of  A, B, C, D, E, F, G and Stroke is mm

Part NO.A B C D E F G H Stroke(mm)Force(g)Current(A)PDF
BP003116.804.800.804.503.002.001.85/1.503002
BP003226.804.800.804.503.002.001.85/1.00903
BP094017.104.001.003.502.501.807.5014.003.001201
BP094027.104.001.003.502.501.805.009.003.001201
BP101115.002.85//2.001.500.5015.951.201102
BP101215.002.85//2.501.900.5017.551.501102
BP101314.902.85//2.001.500.5010.351.201202
BP30841-06254E0A8.005.30///1.002.005.001.00703
BP32011-04508E0A7.005.30///1.002.003.001.00703
BP416115.504.300.401.801.481.002.008.001.00703
BP43401-06254H0B3.602.90/1.501.80/2.004.50//1
BP43411-06254H0A6.104.600.801.501.501.002.003.001.00701
BP478118.006.800.401.801.481.002.003.001.00703

Learn more about How to order special pogo pin, If you have special requirements please contact us

You may like our customized pogo pin connector

Application of 2a pogo pin spring pin right angel type



Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details

  • Consumer electronics products/PCB board
  • Digital camera/Medical products/ Printer cartridges
  • Golf handle/ Electric vehicles/ Telephony applications
  • Cardiac defibrillator/Car charging /Air purifier
  • LED flat luminaries/LED flash light/Tablet/Laptop/PC
  • Power bank/ Digital product/ Small household electrical application
  • Charging products/Signal transmission products etc

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
