- Barrel & plunger: Brass/Be-Cu/Phosphor bronze
- Plating: Gold plated (According to customer requirements)
- Spring: SUS surface treatment
- Life test:20,000 cycles
- Rated current & voltage: DC 12V; 1A

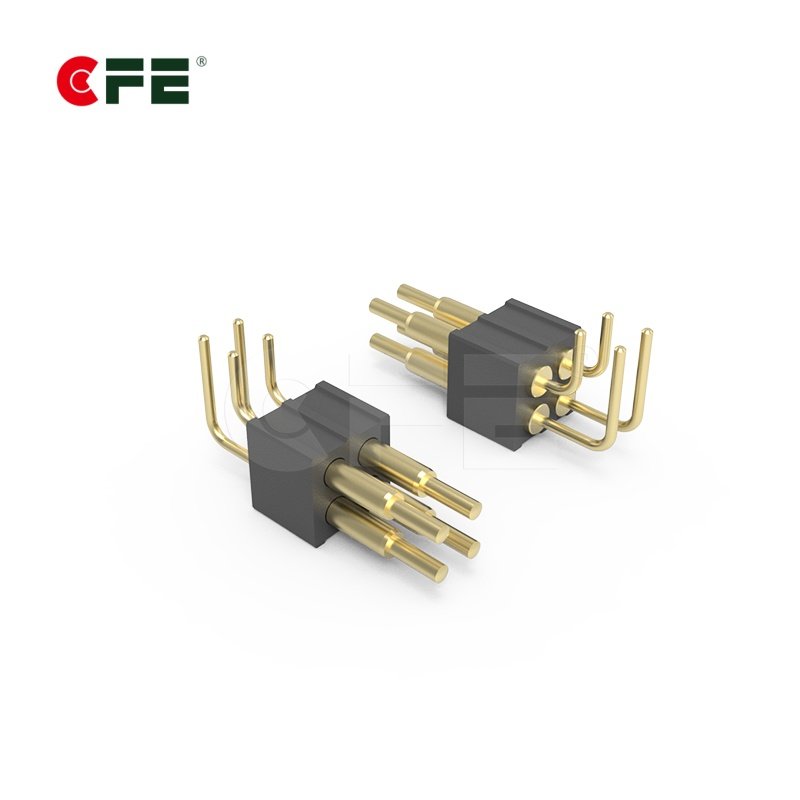

[BP285003-04200L0F] 4 pin bending pogo pin spring connector
4 pin bending pogo pin spring connector supplier in China. Flat SMT pogo pin type with stable quality. The bottom of barrel is designed as flat shape, easy to be mounted on PCB. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses
CFE Pogo Pin Connector Advantages
- We have 14 years experience for pogo pin connector, high current connection, high life cycles, low impedance,corrosion resistance and other reliability.
- Customize high current pogo pin more 1600 items(2A-30A).
- Customize Pogo pin connector more 300 items(2pin-30pin).
- Development 1.27Pitch 2-40pin standard products(6mm-15mm height).
- 2.54mm pitch 2.5mm & 4.0mm housing,1-68pin standard products, 2-128pin double row standard pogo pin connector products (4.5mm-15mm height) SMT/DIP/Right Angle/Solder Cup.
- Development low height pogo pin 1.3mm-4.4mm for customer options.
Specification of 4 pin bending pogo pin spring connector
|Materials||Plunger||Brass 0.125um Au over Ni|
|Barrel||Brass 0.125um Au over Ni|
|Spring||SUS surface treatment|
|Mechanical||Contact force||70g±20g at 1.3mm working stroke|
|Life test||20,000 cycles|
|Electrical||Rated current and voltage||DC 12V; 1A|
|Contact-resistance||30 milliohm Max|
Drawing of 4 pin bending pogo pin spring connector
