- 2.54 mm pitch pogo pin connector
- Easily adapted to customer needs
- Spring strength can be measured and regulated
- Excellent performance and specially suitable for high-frequency application

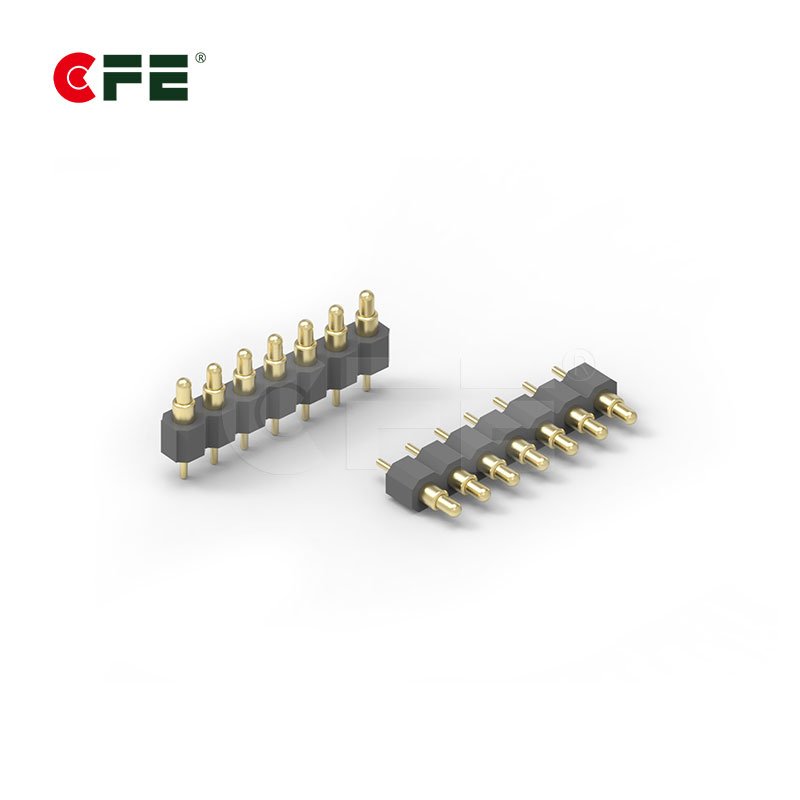

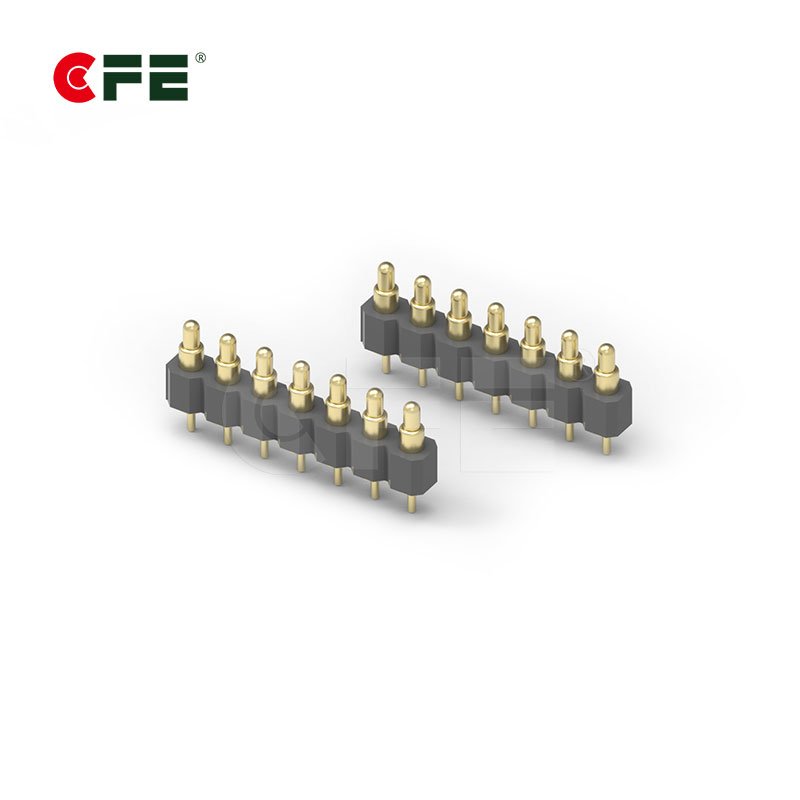

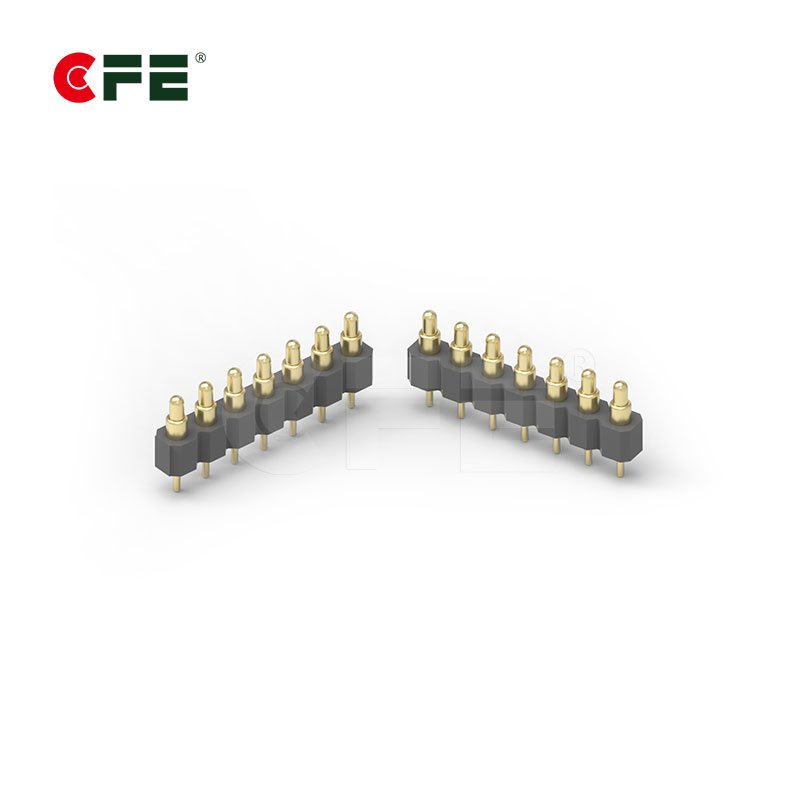

[MP210-1111-A07100A] 7 pin through hole pogo pin connector manufacturers
Description
7 pin through hole pogo pin connector manufacturers.Spring loaded contact pins, the barrel and plunger is brass, beryllium copper vs phosphor bronze and the spring is stainless steel, music wire. A combination of spring loaded electrical contact pins with plastic housing allows for production of custom products that can fit various shapes and sizes.
Advantages of our company
- World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
- World’s second manufacturer developed 1.27 pitch pogo pin connector
- Asia’s first manufacturer achieved compression mechanical 1 million life times
- Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
- China’s first pogo pin product with magnet combined connector manufacturer and own most solutions
Details of 7 pin through hole pogo pin connector manufacturers
|
Part No. | MP210-1111-A07100A | |
| Materials | Insulator | Black high (265℃) plastics UL94 V-0 | |
| Plunger | Brass Au over Ni | ||
| Barrel | Brass Au over Ni | ||
| Spring | SUS surface treatment | ||
| Mechanical | Contact force | 70g+20g at 1.0mm working stroke | |
| Full stroke | 1.40mm | ||
| Life test | 100,000 cycles | ||
| Electrical | Rated current and voltage | DC 12V,3A max | |
| Contact-resistance | 50 milliohms max .The contact is more stable and the conductivity will be better | ||
Customized service
Learn more about How to order special pogo pin, If you have special requirements please contact us
Learn more type of Pogo pin
 |
 |
 |
 |
 |
 |
|||||
| SMT/SMD | DIP | Right angle | Double head | Solder cup | Screw thread |
