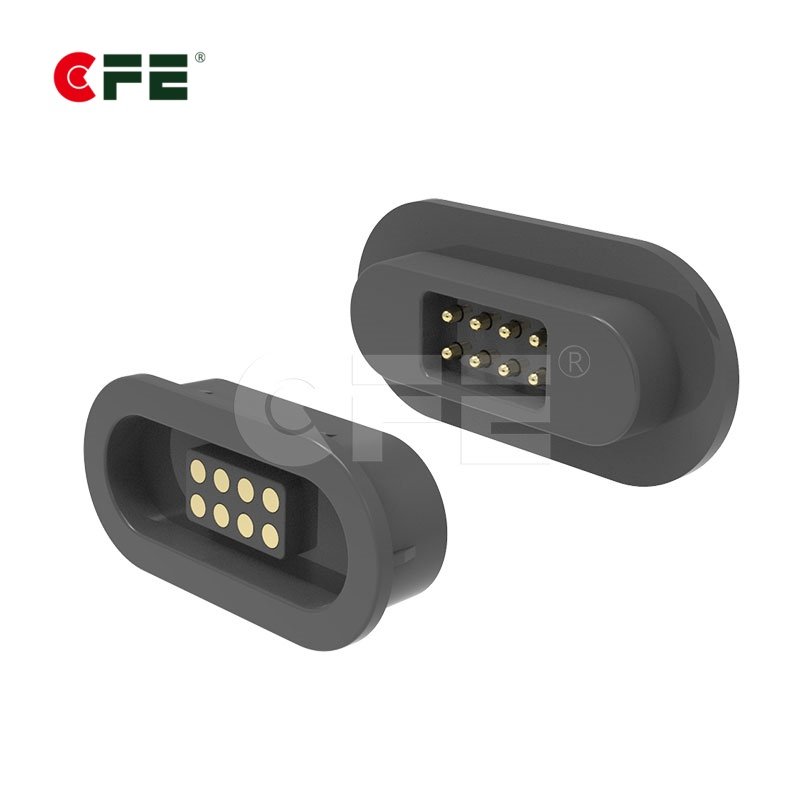

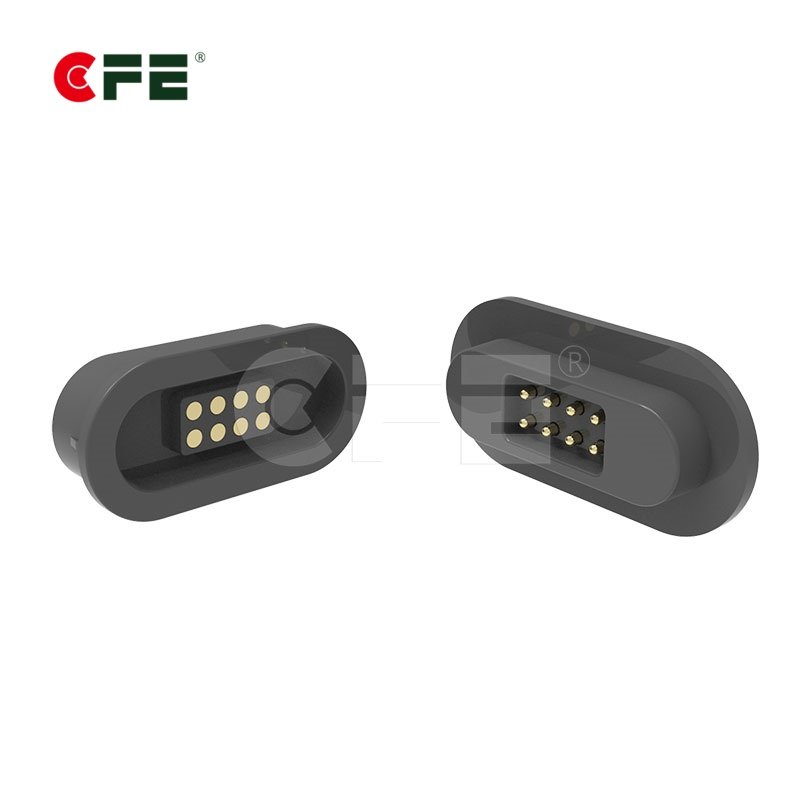

[MXA-0112] 8 pin magnetic dc connector

P/N: MXA-0112
Magnetic force: 0.69 N
Rated Voltage&Current: DC 12 V , 1 A
Life test: 50,000 cycles
Environment: anti-corrosion,48 hours salt-spray test
Pass Rohs, reach, HF, environmental protection

Description

The application of this 8 pin magnetic dc connector . CFE Magnetic charging cable ensures compact design, stable connection, diverse uses and safe protection when detached from devices.

Specification of CFE 8 pin magnetic dc connector —Male Part

Part No.	MMA0112
Contact force	70±20 g at 1.0 mm working stroke
Life test	50,000 cycles
Rated voltage & current	12 V,1 A
Contact resistance	50 milliohm Max
Application

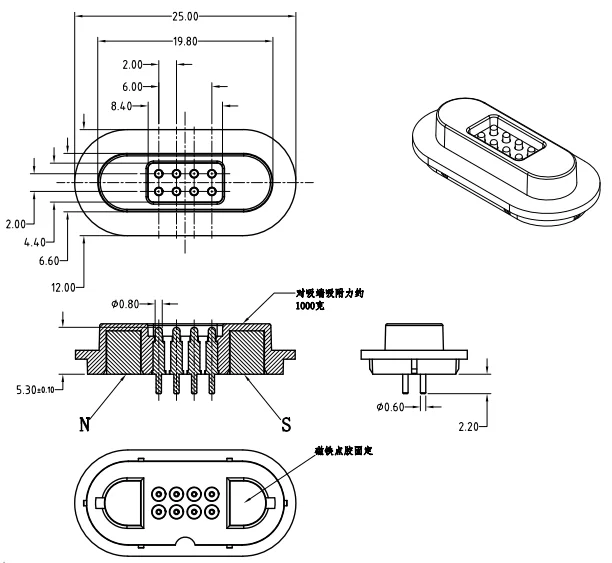

Downloaded	Drawing

Specification of CFE 8 pin magnetic dc connector —Female Part

Part No.	MFA0112
Rated voltage & current	12 V, 1 A
Contact resistance	50 milliohm Max
Magnet	NdFeB
Application
Downloaded	Drawing

CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.

Solutions

The founder of CFE has been involved with the R & D and manufacturing of pogo pin connectors since 2003 and has accumulated a wealth of technological experience. The mature product structure can meet the requirements of various industries, such as low impedance, high current, high life, lateral contact, etc. To provide customers with the safest and most reliable product solutions is always our pursuit and mission.

About us

DONGGUAN CFE ELECTRONIC CO., LTD. (hereinafter referred to as CFE), a subsidiary of CFE CORPORATION CO., LTD, was founded in 2009. CFE is a comprehensive national high-tech enterprise integrating design, research and development, manufacturing of precision pogo pins and magnetic connectors. We also provide services including precision turning parts, precision injection molding parts, magnetic charging cables, component assembly as well as design, development, and manufacture of production testing equipment.
