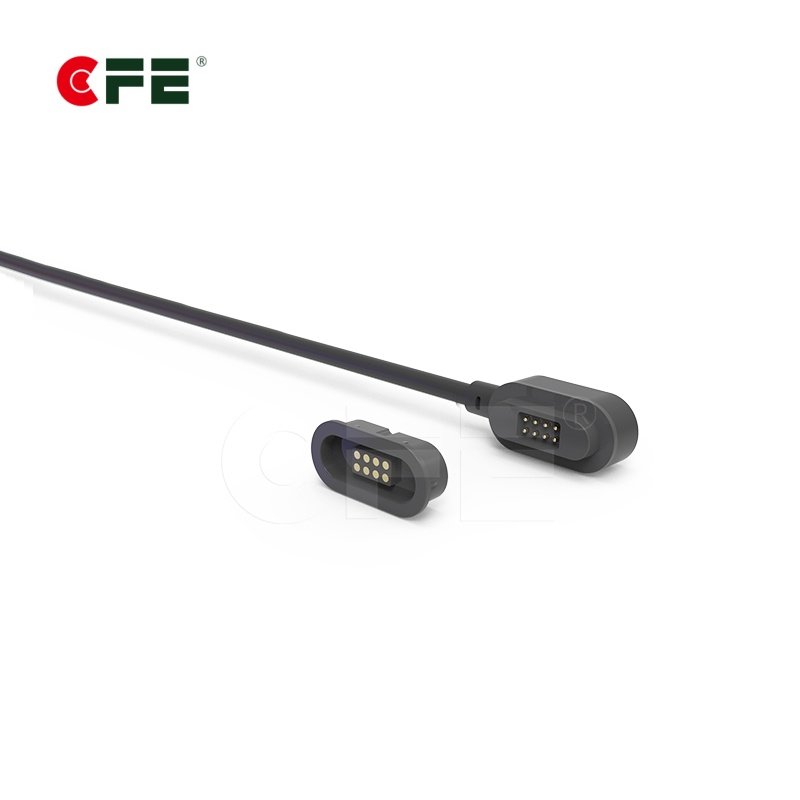

[CMA-0270] 8 Pin male and female magnetic cable connector

[CMA-0270] 8 Pin male and female magnetic cable connector

  • P/N:CMA-0270
  • Rated Voltage&Current: DC 12V 1A
  • Life test: 50,000 cycles
  • Environment: anti-corrosion, 48 hours salt-spray test, Pass Rohs, reach, HF, environmental protection
Inquiry Now

Description

8 Pin male and female magnetic cable connector, CFE magnetic charging cable connectors having the features of the high life and short circuit protection, strong magnetic and safe etc, we are also focusing on developing high-performance connectors, our magnetic connector series provides all common functions

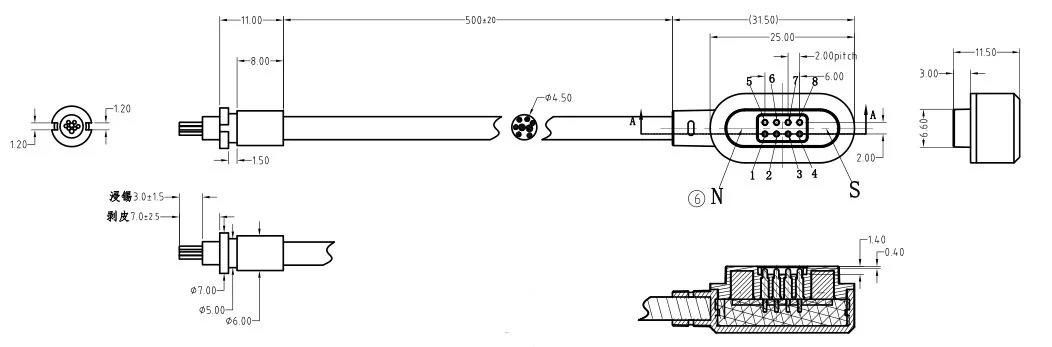

Specification of 8 Pin male and female magnetic cable connector—Male Part

8 Pin male and female magnetic cable connector

Part No. CMA-0253
Contact force  70±20g at 1.0mm working stroke
Life test 50,000 cycles
Rated voltage & current 12 V, 1 A
Contact resistance 50 milliohm Max
Application
 Downloaded Drawing

Specification of 8 Pin male and female magnetic cable connector—Female Part

8 Pin male and female magnetic cable connector

Part No. CFA-0253
Life test 50,000 cycles
Rated voltage & current 12 V, 1 A
Contact resistance 50 milliohm Max
Application
 Downloaded Drawing
