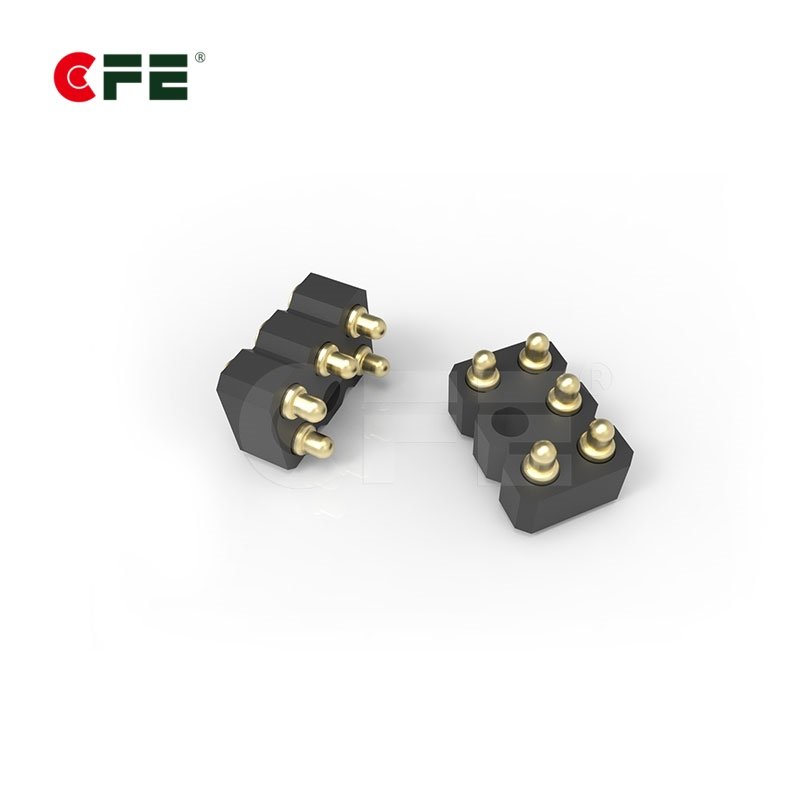

[BF45411-05254B0A] Custom 5 pin spring loaded contact connector

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze
  • Plating: Gold plated (According to customer requirements)
  • Spring: SUS surface treatment
  • Life test:20,000 cycles
  • Rated current & voltage: DC 12V
Inquiry Now

Description

Custom 5 pin spring loaded contact connector supplier in China. Flat SMT pogo pin type with stable quality. The bottom of barrel is designed as flat shape, easy to be mounted on PCB. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

CFE Pogo Pin Connector Advantages

  • We have 14 years experience for pogo pin connector, high current connection, high life cycles, low impedance,corrosion resistance and other reliability.
  • Customize high current pogo pin more 1600 items(2A-30A).
  • Customize Pogo pin connector more 300 items(2pin-30pin).
  • Development 1.27Pitch 2-40pin standard products(6mm-15mm height).
  • 2.54mm pitch 2.5mm & 4.0mm housing,1-68pin standard products, 2-128pin double row standard pogo pin connector products (4.5mm-15mm height) SMT/DIP/Right Angle/Solder Cup.
  • Development low height pogo pin 1.3mm-4.4mm for customer options.

Specification of Custom 5 pin spring loaded contact connector


Custom 5 pin spring loaded contact connector

PDF download

Part No. BF45411-05254B0A
Materials Plunger Brass 0.25um Au over Ni
Barrel Brass 0.25um Au over Ni
Spring SUS surface treatment
Mechanical Contact force 90g±20g at 1.0mm working stroke
Full stroke 1.4mm
Life test 20,000 cycles
Electrical Rated current and voltage DC 12V
Contact-resistance 50 milliohm Max

Drawing of Custom 5 pin spring loaded contact connector

Custom 5 pin spring loaded contact connector

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us
