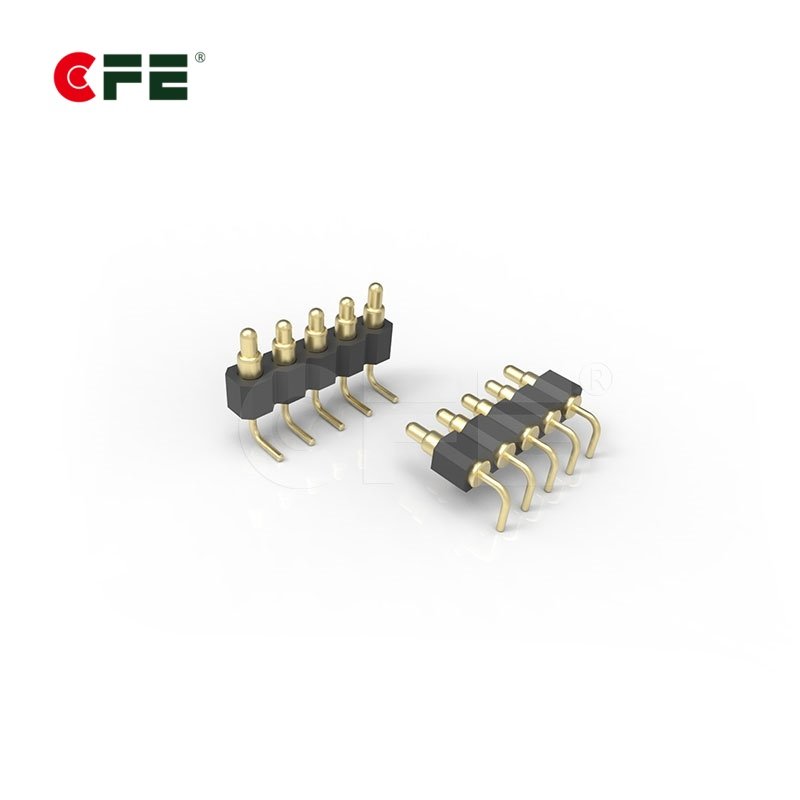

[BP60221-05254A0A] Custom 6 pin right angle pogo pin spring connector

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze
  • Plating: Gold plated (According to customer requirements)
  • Spring: SUS surface treatment
  • Life test:50,000 cycles
  • Rated current & voltage: DC 12V; 3A

Description

Custom 6 pin right angle pogo pin spring connector supplier in China. Our right angle pogo pin or spring loaded pins, is reliable quality and quick to install. Bending tail design of barrel of these right angle pogo pin offers engineers to have more choices on space adjustment. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

CFE Pogo Pin Connector Advantages

  • We have 14 years experience for pogo pin connector, high current connection, high life cycles, low impedance,corrosion resistance and other reliability.
  • Customize high current pogo pin more 1600 items(2A-30A).
  • Customize Pogo pin connector more 300 items(2pin-30pin).
  • Development 1.27Pitch 2-40pin standard products(6mm-15mm height).
  • 2.54mm pitch 2.5mm & 4.0mm housing,1-68pin standard products, 2-128pin double row standard pogo pin connector products (4.5mm-15mm height) SMT/DIP/Right Angle/Solder Cup.
  • Development low height pogo pin 1.3mm-4.4mm for customer options.

Specification of custom 6 pin right angle pogo pin spring connector


custom 6 pin right angle pogo pin spring connector

PDF download

Part No. BP60221-05254A0A
Materials Plunger Brass 0.125um Au over Ni
Barrel Brass 0.125um Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70g±20g at 1.0mm working stroke
Full stroke 1.4mm
Life test 50,000 cycles
Electrical Rated current and voltage DC 12V; 3A
Contact-resistance 50 milliohm Max

Drawing of custom 6 pin right angle pogo pin spring connector

Custom 6 pin right angle pogo pin spring connector



Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us



Application of pogo pin connector

CFE pogo pin connector & spring loaded connector

Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details

  • Consumer electronics products/PCB board
  • Digital camera/Medical products/ Printer cartridges
  • Golf handle/ Electric vehicles/ Telephony applications
  • Cardiac defibrillator/Car charging /Air purifier
  • LED flat luminaries/LED flash light/Tablet/Laptop/PC
  • Power bank/ Digital product/ Small household electrical application
  • Charging products/Signal transmission products etc

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread

You may like our customized pogo pin connector
