- DIP spring loaded pins
- High Durability,RoHs Compliant and Halogen-free
- Easily adapted to customer needs
- Space-saving in comparison with plugs
Description
DIP spring loaded pins for pcb testing.The spring loaded connector is designed to serve as a through-hole component, and is available in a great variety of moldels to suit your electrical connection demands. What’s more, gold-plated components and springs ensure the highest conductivity, corrosion resistance and durability.
Advantages of our company
- World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
- World’s second manufacturer developed 1.27 pitch pogo pin connector
- Asia’s first manufacturer achieved compression mechanical 1 million life times
- Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
- China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

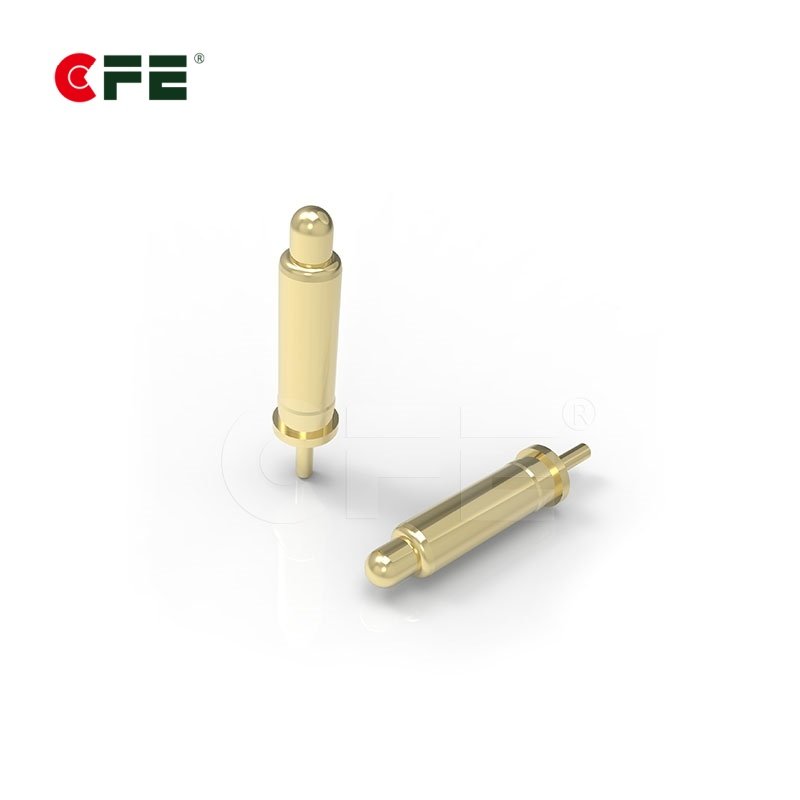

Details of DIP spring loaded pins for pcb testing
spring loaded pins for pcb testing |
Part No. | MF310-1111 | |
| Materials | Plunger | Brass Au over Ni | |
| Barrel | Brass Au over Ni | ||
| Spring | SUS surface treatment | ||
| Mechanical | Life test | 100,000 cycles | |
| Electrical | Contact-resistance | 50 milliohms max .The contact is more stable and the conductivity will be better | |

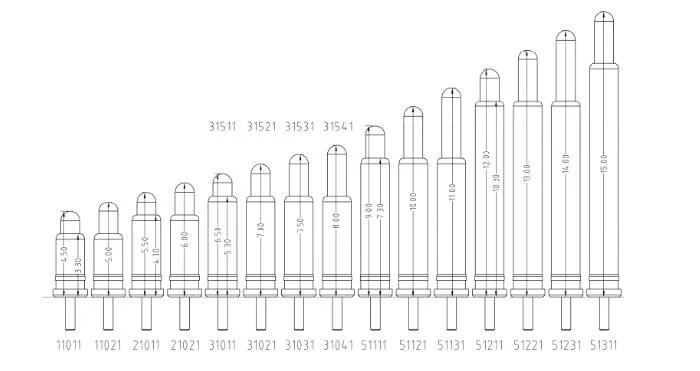

Type of DIP spring loaded pins for pcb testing
Learn more details, download our drawings
Application of DIP spring loaded pins for pcb testing
 |
 |
 |
||
Customized service
Learn more about How to order special pogo pin, If you have special requirements please contact us
Learn more type of Pogo pin
 |
 |
 |
 |
 |
 |
|||||
| SMT/SMD | DIP | Right angle | Double head | Solder cup | Screw thread |
