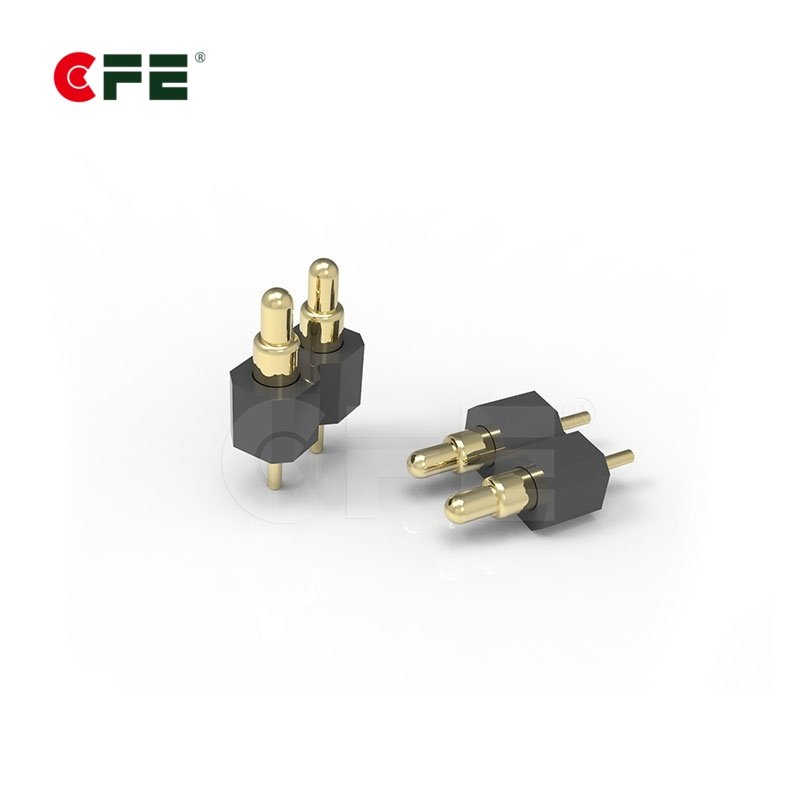

[MP-210-2111-A02100A] DIP spring pogo electrical contact pins connector

[MP-210-2111-A02100A] DIP spring pogo electrical contact pins connector

  • Insulator:Black plastic (265℃) UL94 V-0
  • Spring force: 70g±20% at 1.4mm working storke
  • Rated current & voltage: DC 12V, 3A max
  • Contact resistance:50 milliohm Max.Life test: 100,000 cycles
Inquiry Now

Description

DIP spring pogo electrical contact pins connector. Heavy-duty spring pins with brass Au over Ni plungers that resist bending during the application of side loads. The gold-plated stainless steel spring ensures reliable operation over 1 million cycles and is less prone to stress relaxation when operating at higher temperatures over time.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions




 DIP spring pogo electrical contact pins connector

Download PDF

Part No. MP-210-2111-A02100A
Materials Insulator Black high (265℃) plastics UL94 V-0
Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70g+20g at 1.0mm working stroke
Full stroke 1.40mm
Life test 100,000 cycles
Electrical Rated current and voltage DC 12V,3A max
Contact-resistance 50  milliohms max .The contact is more stable and the conductivity will be better

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
