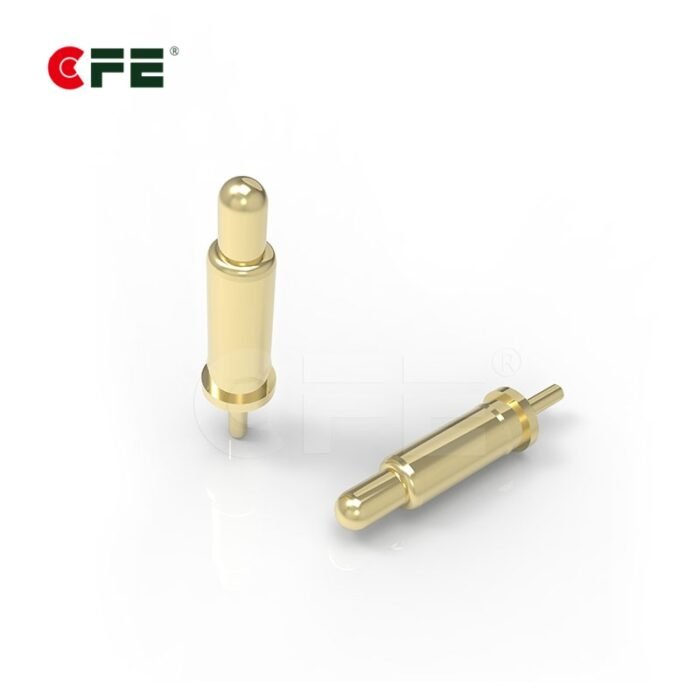

[MF210-2111] DIP through hole spring loaded connector pins

Description

DIP through hole spring loaded connector pins.The plunger and barrel is brass Au over Ni material and the spring is sus surface treatment, providing the spring force required to maintain positive contact. Through-hole type with positioning pin on the bottom of barrel, hard to shift after mounted on PCB and good performance on positioning.

Advantages of our company

• World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
• World’s second manufacturer developed 1.27 pitch pogo pin connector
• Asia’s first manufacturer achieved compression mechanical 1 million life times
• Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
• China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of DIP through hole spring loaded connector pins

spring loaded connector pins	Part No.	MF210-2111
	Materials	Plunger	Brass Au over Ni
		Barrel	Brass Au over Ni
		Spring	SUS surface treatment
	Mechanical	Life test	100,000 cycles
	Electrical	Contact-resistance	50  milliohms max .The contact is more stable and the conductivity will be better

Type of DIP through hole spring loaded connector pins

Learn more details, download our drawings

Application of DIP through hole spring loaded connector pins

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

SMT/SMD		DIP		Right angle		Double head		Solder cup		Screw thread
