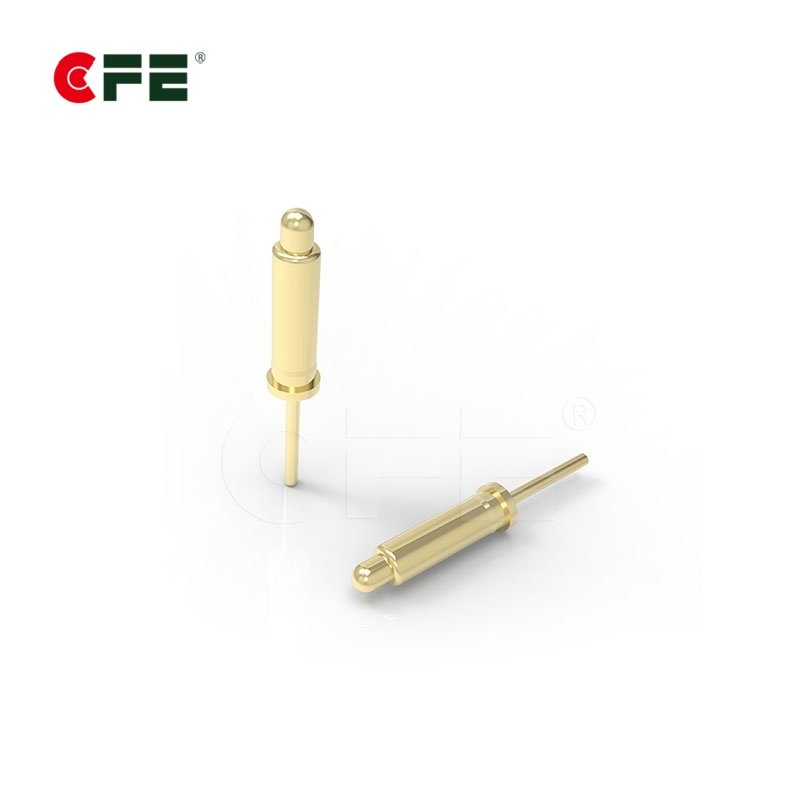

[MF325-1111] DIP through hole spring loaded pcb pogo pins

[MF325-1111] DIP through hole spring loaded pcb pogo pins

  • DIP spring loaded pogo pins
  • Plating: Gold,Silver,Palladium Nickel(customized)
  • All pogo pin meet the requirements of RoHS and Halogen-free
  • Life test:100,000 ~1,000,000 cycles
Inquiry Now

Description

DIP through hole spring loaded pcb pogo pins.Dip pogo pins with positioning pin on the bottom of barrel. Hard to shift after mounted on PCB  Good performance on positioning. Pogo connects provide a highly-reliable, precision made interconnect solution ideal for a number of demanding application requirements in the fast moving world of electronic interconnects.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of DIP through hole spring loaded pcb pogo pins


 DIP through hole spring loaded pcb pogo pins

spring loaded pcb pogo pins

Part No. MF325-1111
Materials Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70±20% at 1.00mm working stroke
Full stoke 1.4mm
Life test 50,000 cycles
Electrical Rated current and voltage 12V DC, 5A max
Contact-resistance 50  milliohms max .The contact is more stable and the conductivity will be better

Type of DIP through hole spring loaded pcb pogo pins

DIP through hole spring loaded pcb pogo pins

Learn more details, download our drawings

Application of DIP through hole spring loaded pcb pogo pins

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
