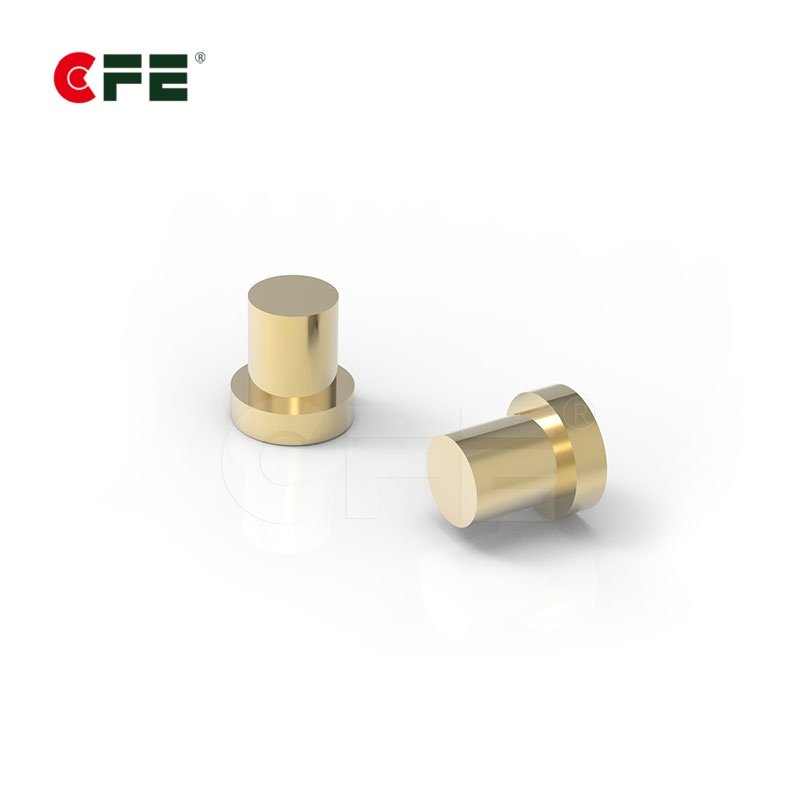

[B715-W1005] Female pin for connector assemblies

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze

  • Plating: Gold plated (According to customer requirements)

  • Spring: SUS/SWP

  • Life test: 20,000~1000,000 cycles

Inquiry Now
Category: Tag:

Description

Female pin for connector assemblies. Pogo pin contacts are precision machined, with variety heights design, from lowest 1.33 mm to 36.6mm. CFE has over 100 styles to choose from to ensure you find the right spring-loaded pin for your design. What’s more, the pogo pin is high durability, it’s highest life can be 1,000,000 times.

Our main product is spring loaded contact and pogo pin connector. CFE Pogo Pin contacts provide a reliable electrical connection in the most rigorous environments. Not easy to corrode, oxidize, increase electric conductivity, reduce impedance. The contact is more stable, so the conductivity of the product will be better.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of Female pin


 Female pogo pin

Download PDF

Part No. B715-W1005
Materials Body brass Au(C3604/C3602)over Ni
Mechanical Salt spray test  48 hours
plating Au-5u”
Life test  100,000 cycles
Process CNC Turning

Type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread



Contact us

Dongguan CFE Electronic Co., Ltd. is a China leading precision spring-loaded connector manufacturing company. We focused on the development and manufacture of Pogo Pin & connector 9 years long.  As the leading electronic components manufacturer in China,  CFE has accomplished over 300 customized Pogo Pin chargers range from 2 pins to 30 pins. We also achieved the innovation of Pogo Pin product, which is the first invention in the Asian, the second invention around the world. What’s more, CFE also provides the short delivery times and competitive price for our clients. Learn more about us
