- Barrel & plunger: Brass/Be-Cu/Phosphor bronze
- Plating: Gold plated (According to customer requirements)
- Life test: 20,000~1000,000 cycles
- Rated current & voltage: DC12V; 1A~5A
[BP87311] High curren right angle pogo pin manufacturer
Description

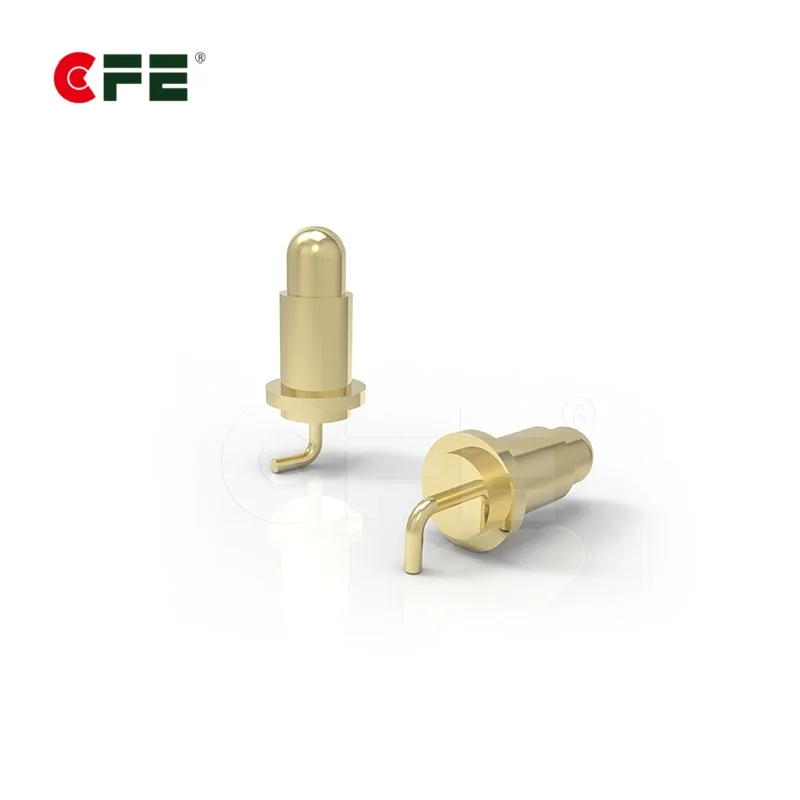

High curren right angle pogo pin manufacturer. High curren right angle pogo pin is typically made of 3 machined components and assembled with an internal spring to provide the range of movement required. Hard to shift after mounted on PCB, good performance on positioning. Right angle pogo pin is a device used in electronics to establish a (usually temporary) connection between two printed circuit boards.
Pogo Pin Connector Strong Point
- Customize high current charger pogo pin more 1600 items（2A-20A)
- Customize Pogo pin connector more 300 items（2pin-60pin）
- Development 1.27Pitch 2-40pin standard products(6mm-15mm pin’s length）
- 2.54mm pitch, 2-40pin standard products,housing height 1.27mm
- Development 2.54pitch 2-128pin male & female pogo pin connector(4.5mm-15mm height)SMT/DIP(Through-hole)/Right Angle/Solder Cup Type
Details of High curren right angle pogo pin manufacturer
|
Part No. | BP87311 | |
| Materials | Plunger | Brass Ni | |
| Barrel | Brass 0.125um Au over Ni | ||
| Spring | SUS 304 Au | ||
| Plug | Brass 0.125um Au over Ni | ||
| Mechanical | Contact force | 100g ±20% at 1.30mm working stroke | |
| Full stroke | 2.0mm | ||
| Life test | 20,000 cycles | ||
| Electrical | Rated current and voltage | 12V DC, 3A | |
| Contact-resistance | 50 milliohms max .The contact is more stable and the conductivity will be better | ||
Drawing of High curren right angle pogo pin
Customized service
The unit of A, B, C, D, E, F, H is mm
| Part NO. | A | B | C | D | E | F | G | H | Stroke(mm) | Force(g) | Current(A) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BP00311 | 6.80 | 4.80 | 0.80 | 4.50 | 3.00 | 2.00 | 1.85 | / | 1.50 | 300 | 2 |  |
| BP00322 | 6.80 | 4.80 | 0.80 | 4.50 | 3.00 | 2.00 | 1.85 | / | 1.00 | 90 | 3 | |
| BP09401 | 7.10 | 4.00 | 1.00 | 3.50 | 2.50 | 1.80 | 7.50 | 14.00 | 3.00 | 120 | 1 | |
| BP09402 | 7.10 | 4.00 | 1.00 | 3.50 | 2.50 | 1.80 | 5.00 | 9.00 | 3.00 | 120 | 1 | |
| BP10111 | 5.00 | 2.85 | / | / | 2.00 | 1.50 | 0.50 | 15.95 | 1.20 | 110 | 2 | |
| BP10121 | 5.00 | 2.85 | / | / | 2.50 | 1.90 | 0.50 | 17.55 | 1.50 | 110 | 2 | |
| BP10131 | 4.90 | 2.85 | / | / | 2.00 | 1.50 | 0.50 | 10.35 | 1.20 | 120 | 2 | |
| BP30841-06254E0A | 8.00 | 5.30 | / | / | / | 1.00 | 2.00 | 5.00 | 1.00 | 70 | 3 | |
| BP32011-04508E0A | 7.00 | 5.30 | / | / | / | 1.00 | 2.00 | 3.00 | 1.00 | 70 | 3 | |
| BP41611 | 5.50 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 2.00 | 8.00 | 1.00 | 70 | 3 | |
| BP43401-06254H0B | 3.60 | 2.90 | / | 1.50 | 1.80 | / | 2.00 | 4.50 | / | / | 1 | |
| BP43411-06254H0A | 6.10 | 4.60 | 0.80 | 1.50 | 1.50 | 1.00 | 2.00 | 3.00 | 1.00 | 70 | 1 | |
| BP47811 | 8.00 | 6.80 | 0.40 | 1.80 | 1.48 | 1.00 | 2.00 | 3.00 | 1.00 | 70 | 3 | |
