- Barrel & plunger: Brass/Be-Cu/Phosphor bronze
- Plating: Gold plated (According to customer requirements)
- Spring: SUS/SWP
- Life test: 20,000~1000,000 cycles
- Rated current & voltage: DC24V; 5A
[BF12111] High current spring loaded contacts for sale
Description
SMT SMD 5A High current spring loaded contacts for sale wholesale. Our main product is spring loaded contact and pogo pin connector. CFE Pogo Pin contacts provide a reliable electrical connection in the most rigorous environments. Not easy to corrode, oxidize, increase electric conductivity, reduce impedance. The contact is more stable, so the conductivity of the product will be better. You may like Types of Pogo pin and their uses
Details of High current spring loaded contacts for sale
|
Part No. | BF12111 | |
| Materials | Plunger | Brass 20u” Au over Ni | |
| Barrel | Brass 20u” Au over Ni | ||
| Spring | SUS 1u” Au | ||
| Mechanical | Contact force | 220g±20g at 1.0mm working stroke | |
| Full stroke | 1.0mm | ||
| Life test | 10,000 cycles | ||
| Electrical | Rated current and voltage | DC 24V; 5A max | |
| Contact-resistance | 50milliohm Max | ||

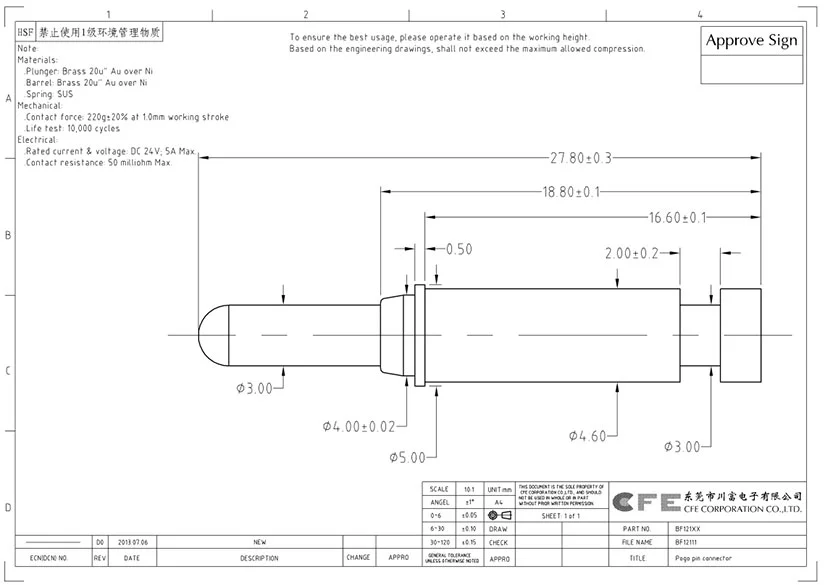

Drawing of High current spring loaded contacts for sale
You can choose what you like and download drawing
The unit of A, B, C, D, E, F, G, H and Stroke is mm
| Part NO. | A | B | C | D | E | F | Stroke(mm) | Force(g) | Current(A) | |
|---|---|---|---|---|---|---|---|---|---|---|
| BF00111 | 4.30 | 3.30 | 0.50 | 1.80 | 1.50 | 0.90 | 1.0 | 50 | 1 |  |
| BF00217 | 15.20 | 13.70 | 0.60 | 1.63 | 1.50 | 0.90 | 0.9 | 100 | 1 | |
| BF00218 | 15.20 | 13.70 | 0.63 | 1.63 | 1.50 | 0.90 | 0.9 | 100 | 1 | |
| BF00261 | 16.50 | 15.00 | 0.60 | 1.55 | 1.45 | 0.90 | 0.9 | 100 | 1 | |
| BF00511 | 4.00 | 2.50 | 0.50 | / | 1.50 | 0.90 | / | 120 | 1 | |
| BF00611 | 3.00 | 2.00 | 0.50 | 2.00 | 1.50 | 0.90 | 0.7 | 50 | 1 | |
| BF00811 | 5.50 | 4.50 | 0.50 | 1.80 | 1.48 | 0.90 | 0.8 | 120 | 1 | |
| BF01011 | 4.20 | 3.20 | / | / | 1.00 | 0.50 | 0.8 | 40 | 1 | |
| BF01211 | 17.00 | 14.70 | 2.00 | 1.70 | 2.00 | 1.40 | 1.5 | 130 | 2 | |
| BF01311 | 9.00 | 6.50 | 3.30 | 1.50 | 1.60 | 1.10 | 80 | |
||
| BF01411 | 3.50 | 2.50 | 0.40 | 1.82 | 1.76 | 1.06 | 0.5 | 60 | 1 | |
| BF01811 | 3.00 | 2.00 | 0.40 | 1.83 | 1.55 | 1.05 | 0.7 | 110 | 1 | |
| BF01911 | 4.40 | 3.40 | 0.40 | 1.83 | 1.55 | 1.07 | 0.6 | 150 | 1 | |
| BF02011 | 6.00 | 4.00 | 0.50 | 2.00 | 1.50 | 0.90 | / | 80 | 1 | |
| BF02014 | 6.00 | 4.00 | 0.50 | 2.00 | 1.50 | 1.00 | 1.0 | 80 | 1 | |
| BF02211 | 8.00 | 5.50 | 0.70 | 1.80 | 1.60 | 1.00 | 1.5 | 130 | 2 | |
| BF02811 | 16.50 | 13.00 | / | / | 2.00 | 1.40 | 1.5 | 150 | 1 | |
| BF03024 | 7.00 | 4.50 | / | / | 2.95 | 2.30 | 1.5 | 180 | / | |
| BF03111 | 9.00 | 6.50 | 3.30 | 1.35 | 1.45 | 0.90 | 1.5 | 80 | / | |
| BF03511 | 5.40 | 3.90 | 0.70 | 1.80 | 1.50 | 1.00 | 1.0 | 120 | 3 | |
| BF04312 | 12.60 | 11.10 | 0.90 | 1.80 | 1.50 | 0.90 | 1.0 | 60 | 1 | |
| BF04320 | 20.60 | 19.10 | 0.90 | 1.80 | 1.50 | 0.90 | 1.0 | 30 | 1 | |
| BF04336 | 36.60 | 35.10 | 0.90 | 1.80 | 1.50 | 0.90 | 1.0 | 60 | 1 | |
| BF04511 | 6.82 | 5.42 | 0.60 | 1.90 | 1.50 | 0.90 | 0.9 | 100 | 1 | |
| BF04711 | 5.00 | 3.60 | 0.50 | 1.80 | 1.50 | 1.00 | / | 110 | 1 | |
| BF04811 | 7.00 | 5.00 | 0.50 | 1.80 | 1.50 | 1.00 | 0.7 | 50 | 2 | |
| BF04911 | 2.30 | 1.60 | 0.40 | 1.45 | 1.35 | 0.90 | / | 70 | 1 | |
| BF05211 | 7.90 | 5.70 | 0.60 | 1.80 | 1.50 | 0.90 | 1.2 | 60 | 2 | |
| BF05711 | 5.50 | 3.05 | 0.50 | 2.30 | 1.50 | 1.00 | 0.9 | 45 | 1 | |
| BF05721 | 4.50 | 2.45 | 0.50 | 2.30 | 1.50 | 1.00 | 0.5 | 45 | 1 | |
| BF05811 | 14.00 | 9.00 | / | / | 1.50 | 1.00 | / | 120 | 1 | |
| BF06311 | 4.00 | 2.70 | 0.40 | 2.50 | 1.50 | 0.90 | 1.0 | 80 | 1 | |
| BF06911 | 7.30 | 5.25 | 0.50 | 1.36 | 1.30 | 0.80 | 0.8 | 95 | 2 | |
| BF08211 | 2.90 | 1.70 | 0.40 | 2.00 | 1.50 | 0.90 | 0.9 | 65-95 | 1 | |
| BF08311 | 2.30 | 1.50 | 0.30 | 1.40 | 1.25 | 0.80 | / | 30 | 1 | |
| BF08312 | 2.30 | 1.50 | 0.30 | 1.40 | 1.25 | 0.80 | / | 30 | 1 | |
| BF08511 | 3.60 | 2.30 | 0.30 | 2.00 | 1.25 | 0.80 | / | 70 | 1 | |
| BF08811 | 3.50 | 2.50 | 0.30 | 1.70 | 1.50 | 0.90 | 0.5 | 45 | 1 | |
| BF09511 | 4.50 | 2.45 | 0.40 | 2.30 | 1.50 | 1.00 | / | 45 | 1 | |
| BF09611 | 4.25 | 3.25 | 0.50 | 3.50 | 2.50 | 2.00 | 1.0 | 300 | 1 | |
| BF09612 | 4.25 | 3.25 | / | 3.50 | 2.50 | 2.00 | 1.0 | 300 | 1 | |
| BF09711 | 3.20 | 2.00 | / | 2.00 | 1.25 | 0.80 | / | 95 | 1 | |
| BF09811 | 6.00 | 4.50 | / | 1.80 | 1.35 | 0.85 | 0.5 | 25-45 | 1 | |
| BF09812 | 6.00 | 4.50 | 1.00 | 1.80 | 1.35 | 0.85 | 1.0 | 110 | 1 | |
| BF10001 | 5.00 | 3.30 | 1.00 | 1.80 | 1.48 | 1.00 | 1.0 | 30 | 1 | |
| BF10411 | 3.40 | 2.50 | 0.40 | 1.80 | 1.50 | 1.00 | 0.8 | 110 | 1 | |
| BF10412 | 3.40 | 2.50 | 0.40 | 1.80 | 1.50 | 1.00 | 0.6 | 60 | 1 | |
| BF10413 | 3.40 | 2.50 | 0.40 | 1.80 | 1.50 | 1.00 | 0.8 | 110 | 3 | |
| BF10511 | 4.00 | 3.00 | 0.40 | 1.80 | 1.48 | 1.00 | / | 60 | 3 | |
| BF10711 | 3.70 | 2.40 | 0.40 | 1.80 | 1.48 | 1.00 | 0.7 | 110 | 1 | |
| BF11611 | 4.70 | 4.00 | 0.25 | 1.88 | 1.57 | 1.00 | 0.7 | 88 | 3 | |
| BF12711 | 4.30 | 3.00 | / | / | 1.50 | 0.90 | 0.8 | 100 | 2 | |
| BF12821 | 9.50 | 7.00 | 1.50 | 2.00 | 1.48 | 0.90 | 1.0 | 125 | 2 | |
| BF13601 | 9.40 | 8.30 | / | 1.80 | 1.48 | 1.00 | 1.0 | 70 | 3 | |
| BF13611 | 9.90 | 8.30 | / | 1.80 | 1.48 | 1.00 | 1.0 | 70 | 3 | |
| BF13621 | 10.40 | 8.30 | / | 1.80 | 1.48 | 1.00 | 1.0 | 70 | 3 | |
| BF14611 | 6.50 | 3.50 | 0.40 | 2.00 | 1.50 | 1.00 | 2.0 | 60 | 1 | |
| BF15001 | 7.00 | 4.50 | 2.50 | 3.50 | 2.90 | 2.30 | 1.5 | 180 | / | |
| BF15311 | 8.30 | 5.20 | 0.80 | 3.50 | 2.30 | 1.10 | 0.7 | 70 | 3 | |
| BF15711 | 10.50 | 4.50 | / | / | 1.50 | 0.90 | 1.0 | 100 | 1 | |
| BF15811 | 5.00 | 3.60 | 0.40 | 1.80 | 1.48 | 1.00 | 1.0 | 120 | 1 | |
| BF16511 | 2.50 | 1.90 | 0.70 | 1.80 | 1.60 | 1.00 | 1.9 | 50 | 0.5 | |
| BF16611 | 4.50 | 3.20 | 0.70 | 1.80 | 1.60 | 1.00 | 1.3 | 90 | 0.5 | |
| BF18311 | 2.10 | 1.45 | 0.55 | 1.30 | 1.05 | 0.70 | 1.7 | 6 | 1 | |
| BF19101 | 5.50 | 4.00 | 0.80 | 2.00 | 1.48 | 0.90 | 0.7 | 80 | 2 | |
| BF19401 | 2.54 | 1.90 | 0.40 | 1.80 | 1.48 | 1.00 | 0.5 | 50 | 1 | |
| BF19701 | 9.50 | 7.00 | / | / | 2.95 | 2.30 | 1.5 | 180 | 1 | |
| BF19801-02350H1A | 7.50 | 5.30 | 1.80 | 1.48 | 1.00 | 1.0 | 70 | 1 | |
|
| BF19901 | 11.00 | 8.00 | 0.40 | 1.80 | 1.50 | 1.00 | 1.0 | 90 | 2.5 | |
| BF20401 | 4.50 | 2.70 | 0.40 | 1.80 | 1.80 | 1.07 | 1.0 | 60 | 1 | |
| BF21801 | 6.40 | 4.60 | 1.00 | 2.50 | 2.00 | 1.50 | 1.0 | 150 | 4 | |
| BF25011 | 4.30 | 2.60 | / | 3.10 | 2.55 | 1.90 | 0.9 | 250 | 1 | |
| BF30611 | 7.10 | 4.50 | / | / | 3.50 | 2.70 | 2.6 | 200 | / | |
| BF31511 | 11.50 | 8.80 | 0.60 | 5.00 | 2.30 | 1.50 | 1.75 | 235 | 3 | |
| BF31911 | 23.60 | 15.70 | / | / | 2.00 | 1.40 | 4.0 | 250 | |
|
| BF36211 | 2.80 | 2.00 | / | 2.00 | 1.50 | 0.90 | 0.8 | 60 | 0.1 | |
| BF36621 | 4.00 | 2.50 | 0.40 | 2.00 | 1.50 | 1.00 | 1.0 | 40 | 1 | |
| BF36811 | 2.50 | 1.60 | 0.30 | 1.40 | 1.25 | 0.80 | 0.5 | 55 | 0.5 | |
| BF37111-10254H0A | 9.00 | 7.30 | 4.25 | / | / | 1.00 | 0.7 | 60 | 2 | |
| BF37211-06254B0A | 3.80 | / | 0.40 | 2.00 | / | 1.00 | 0.8 | 25 | 1 | |
| BF37311-08340H0A | 9.00 | / | / | / | 1.48 | 0.90 | 1.8 | 75 | 1 | |
| BF38411-04254F0A | 11.00 | 7.30 | 4.00 | 5.08 | / | 1.00 | 1 | 70 | 3 | |
| BF38511 | 2.40 | 1.45 | 0.30 | 1.80 | 1.48 | 0.90 | 1.8 | 120 | 1.5 | |
| BF38511-0325001A | 2.30 | 1.45 | 0.30 | 1.80 | 1.53 | 0.90 | 1.8 | 120 | 1.5 | |
| BF38522 | 2.50 | 1.70 | 0.40 | 1.80 | 1.48 | 1.00 | 0.6 | 100 | 1.0 | |
| BF39311-12254H0A | 6.50 | 3.00 | 0.40 | 1.80 | 1.50 | 1.00 | 1.8 | 60 | 1 | |
| BF39511 | 3.30 | 2.70 | 0.50 | 2.20 | 1.80 | 1.00 | 0.5 | 60 | 1 | |
| BF40511 | 5.00 | 3.50 | 0.80 | 1.60 | 1.20 | 0.70 | 1.1 | 90 | 1 | |
| BF40611-06254S0A | 7.62 | 5.08 | 2.54 | 1.27 | / | / | 0.62 | 50 | 1 | |
| BF40711-01000H1A | 3.90 | 3.00 | 2.60 | 1.80 | 1.50 | 1.00 | 0.8 | 40 | 1 | |
| BF40911 | 3.50 | 2.50 | / | 1.80 | 1.48 | 1.00 | 0.5 | 60 | 1 | |
| BF42011-02762E0A | 7.30 | 4.00 | 0.4 | / | 2.54 | 1.00 | 1 | 70 | 1 | |
| BF42411 | 11.50 | 2.00 | 0.50 | 4.00 | 3.50 | 3.00 | 0.8 | 100 | / | |
| BF44511 | 5.00 | 3.70 | 0.40 | 2.00 | 1.50 | 0.90 | 1.0 | 50 | 1.0 | |
| BF44711-A03113A | 8.00 | 5.30 | / | / | / | 1.00 | 1 | 30 | 1 | |
| BF44911-05250H0A | 7.50 | 0.40 | 1.80 | / | 1.00 | / | 1 | 70 | 3 | |
| BF45111 | 2.00 | 1.55 | 0.40 | 2.10 | 1.78 | 1.20 | 0.4 | 70 | 1.0 | |
| BF46911 | 4.00 | 2.60 | 0.40 | 1.80 | 1.48 | 1.00 | 0.8 | 100 | 1 | |
| BF47011 | 3.90 | 2.70 | / | / | 1.60 | 1.00 | 0.6 | 50 | 1 | |
| BF47111 | 3.10 | 2.20 | / | 1.80 | 1.30 | 0.90 | 0.6 | 70 | 1 | |
| BF47711 | 4.90 | 3.50 | / | 2.00 | 1.48 | 1.00 | 0.8 | 80 | 1 | |
| BF47911 | 9.50 | 8.00 | 0.40 | 1.90 | 1.48 | 1.00 | 0.8 | 60 | 1 | |
| BF12891 | 9.50 | 7.00 | 1.70 | 1.80 | 1.48 | 1.00 | 1.0 | 125 | 2 | |
| BF49811 | 4.80 | 3.50 | 0.50 | 1.80 | 1.50 | 0.90 | 0.0 | 40 | 2 | |
| BF57811 | 5.50 | 4.00 | 0.50 | 2.00 | 1.50 | 1.00 | 1.00 | 100.00 | 3 | |
| BF56111 | 5.30 | 4.00 | / | / | 3.00 | 2.20 | 1.00 | 100.00 | 1 | |
| BF60511 | 5.00 | 3.30 | 0.40 | 1.80 | 1.48 | 1.00 | 0.6 | 30 | 1 | |
| MF801-11GG | 1.30 | 1.00 | 0.40 | 1.50 | 1.28 | 0.80 | 0.2 | 20 | 1 | |
| MF802-11GG | 1.50 | 1.30 | 0.40 | 1.50 | 1.28 | 0.80 | 0.2 | 20 | 1 | |
| MF802-21GG | 1.70 | 1.30 | 0.40 | 1.50 | 1.28 | 0.80 | 0.2 | 20 | 1 | |
| MF803-11GG | 1.90 | 1.50 | 0.40 | 1.50 | 1.28 | 0.80 | 0.4 | 70 | 1 | |
| MF803-21GG | 2.10 | 1.50 | 0.40 | 1.50 | 1.28 | 0.80 | 0.4 | 70 | 1 | |
| MF803-31GG | 2.30 | 1.50 | 0.40 | 1.50 | 1.28 | 0.80 | 0.4 | 70 | 1 | |
| MF804-11GG | 2.50 | 1.70 | 0.40 | 1.50 | 1.28 | 0.80 | 0.6 | 70 | 1 | |
| MF804-21GG | 2.70 | 1.70 | 0.40 | 1.50 | 1.28 | 0.80 | 0.6 | 70 | 1 | |
| MF805-11GG | 2.90 | 2.00 | 0.40 | 1.50 | 1.28 | 0.80 | 0.6 | 80 | 1 | |
| MF806-11GG | 3.10 | 2.30 | 0.40 | 1.50 | 1.28 | 0.80 | 0.8 | 80 | 1 | |
| MF806-21GG | 3.30 | 2.3 | 0.40 | 1.50 | 1.28 | 0.80 | 0.8 | 80 | 1 | |
| MF807-11GG | 3.50 | 2.60 | 0.40 | 1.50 | 1.28 | 0.80 | 0.8 | 80 | 1 | |
| MF807-21GG | 3.70 | 2.60 | 0.40 | 1.50 | 1.28 | 0.80 | 0.8 | 80 | 1 | |
| MF807-31GG | 4.00 | 2.60 | 0.40 | 1.50 | 1.28 | 0.80 | 0.8 | 80 | 1 | |
| MF808-11GG | 4.20 | 3.00 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 80 | 1 | |
| MF808-21GG | 4.40 | 3.00 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 80 | 1 | |
| MF809-11GG | 4.50 | 3.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 70 | 1 | |
| MF809-21GG | 5.00 | 3.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 70 | 1 | |
| MF810-11GG | 5.50 | 4.30 | 0.40 | 1.50 | 1.28 | 1.00 | 1.0 | 70 | 1 | |
| MF810-21GG | 6.00 | 4.30 | 0.40 | 1.50 | 1.28 | 1.00 | 1.0 | 70 | 1 | |
| MF811-11GG | 6.50 | 5.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 70 | 1 | |
| MF811-21GG | 7.00 | 5.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 70 | 1 | |
| MF811-31GG | 7.50 | 5.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 70 | 1 | |
| MF811-41GG | 8.00 | 5.30 | 0.40 | 1.50 | 1.25 | 0.80 | 1.0 | 70 | 1 | |
| BF65111 | 8.20 | 6.00 | 0.50 | 2.30 | 2.00 | 1.50 | 7.2 | 120 | 2 | |
| BF65511 | 3.50 | 2.70 | 0.50 | 2.00 | 1.50 | 0.90 | 0.5 | 70 | 1 | |
| BF65711 | 2.00 | 1.00 | / | / | 1.22 | 0.80 | 0.7 | 60 | 1 | |
| BF69011 | 2.95 | 1.85 | 0.30 | 2.00 | 1.25 | 0.80 | 2.5 | 40 | 1 | |
| BF72411 | 2.70 | 1.70 | 0.40 | 1.70 | 1.38 | 0.90 | 0.6 | 100 | 1 | |
| BF76611 | 3.25 | 2.00 | 0.30 | 1.80 | 1.48 | 0.90 | 0.7 | 50 | 1 | |
| BF68611 | 7.25 | 6.15 | 0.67 | 1.80 | 1.48 | 1.00 | 1.0 | 70 | 3 | |
| BF67111 | 6.30 | 4.90 | 0.30 | 1.30 | 1.08 | 0.65 | 1.3 | 60 | 1 | |
| BF67121 | 6.00 | 4.90 | 0.30 | 1.30 | 1.08 | 0.65 | 1.0 | 50 | 1 | |
| BF80211 | 5.00 | 3.50 | 0.30 | 1.00 | 0.90 | 0.50 | 0.5 | 40 | 1 | |
| BF83911 | 11.50 | 10.00 | 0.40 | 1.80 | 1.48 | 1.00 | 0.7 | 85 | 3 | |
| BF60721 | 8.10 | 6.80 | 0.40 | 1.20 | 1.02 | 0.60 | 1.0 | 40 | 1 | |
| BF60731 | 8.10 | 6.80 | 0.40 | 1.20 | 1.02 | 0.60 | 1.0 | 30 | 1 | |
| BF86211 | 3.30 | 2.50 | / | / | 1.00 | 0.45 | 0.6 | 60 | 1 | |
| BF89711 | 2.90 | 2.20 | 0.40 | 1.80 | 1.48 | 1.00 | 0.9 | 80 | 1 | |
| BF89721 | 3.70 | 2.70 | 0.40 | 1.80 | 1.48 | 1.00 | 0.6 | 80 | 1 | |
| BF82111 | 6.00 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.0 | 50 | 2 | |
| BF91901 | 3.50 | 2.60 | 0.30 | 2.50 | 1.50 | 1.00 | 0.6 | 70 | 1 | |
| BF16611 | 4.50 | 3.20 | 0.70 | 1.80 | 1.60 | 1.00 | 3.50 | 75 | 0.5 | |
| BF98111 | 4.80 | 3.30 | 0.60 | 1.45 | 1.20 | 0.70 | 4.00 | 60 | 1 | |
| BF95711 | 11.20 | 8.20 | 1.00 | 4.50 | 3.20 | 2.00 | 1.00 | 90 | 3 | |
| BF25011 | 2.60 | 4.20 | / | 3.10 | 2.55 | 1.90 | 3.30 | 250 | 1 | |
| BF80211 | 3.50 | 5.00 | 0.80 | 1.00 | 0.90 | 0.50 | 0.50 | 40 | 1 | |
| BF76811 | 6.05 | 3.40 | 2.65 | 8.20 | 7.00 | / | 2.50 | 30 | ||
| BF79411 | 8.00 | 6.00 | 0.50 | 2.50 | 2.00 | 1.20 | 1.50 | 120 | 3 | |
| BF106301 | 3.50 | 2.60 | 0.40 | 1.80 | 1.48 | 1.00 | 0.80 | 100 | 1 |
Learn more about How to order special pogo pin, If you have special requirements please contact us
You may like our customized pogo pin connector
Application of SMT SMD High current spring loaded contacts for sale
 |
 |
 |
||
Learn more type of Pogo pin
 |
 |
 |
 |
 |
 |
|||||
| SMT/SMD | DIP | Right angle | Double head | Solder cup | Screw thread |
Contact us
Dongguan CFE Electronic Co., Ltd. is a China leading precision spring-loaded connector manufacturing company. We focused on the development and manufacture of Pogo Pin & connector 9 years long. As the leading electronic components manufacturer in China, CFE has accomplished over 300 customized Pogo Pin chargers range from 2 pins to 30 pins. We also achieved the innovation of Pogo Pin product, which is the first invention in the Asian, the second invention around the world. What’s more, CFE also provides the short delivery times and competitive price for our clients. Learn more about us
