[CXA-0123] High quality magnetic pogo pin cable connector for LED strips

High quality magnetic pogo pin cable connector for LED strips

[CXA-0123] High quality magnetic pogo pin cable connector for LED strips

  • P/N: CXA-0123
  • Magnetic force: 3 N，support upgrade
  • Rated Voltage&Current: 12 V,3 A, faster recharge
  • Life test: 100,000 cycles,100% open & short test
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protection
Inquiry Now
Category: Tags: , ,

Description

High quality magnetic pogo pin cable connector for LED strips, magnetic pogo pin have the advantage of automatic adsorption, easy to operation. The pogo pin have a good electric conductivity, not easily corroded in a severe environment.

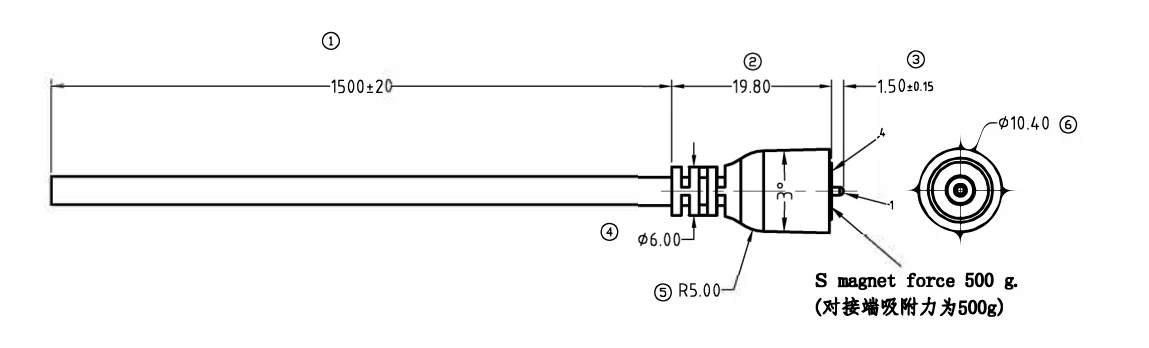

Specification of High quality magnetic pogo pin cable connector for LED strips—Male Part



High quality magnetic pogo pin cable connector for LED strips

Part No. CMA-0123
Contact force  80±20 g at 1.1 mm working stroke
Life test 100,000 cycles
Rated voltage & current 12 V, 3 A
Contact resistance 30 milliohm Max
Application LED strips
 Downloaded Drawing



Specification of High quality magnetic pogo pin cable connector for LED strips—Female Part

High quality magnetic pogo pin cable connector for LED strips

Part No. MFA-0041
Rated voltage & current 12 V, 3 A
Contact resistance 30 milliohm Max
Application LED strips
Downloaded Drawing



Introduction to magnetic charging cable

— In the fierce differentiated product strategy competition, user experience has become the pursuit for any intelligent product designers. After the traditional plug-in board self-locking connector products,a new connection scheme which is the magnetic charging cable is gradually applied to the intelligent high-end product market. The connection solution has the advantages of a long life of pogo pin connector for more than 50000 times, automatic adsorption connection, easy removal of adsorption interface, high waterproof level and unlikely to loosen the machine.

— The magnetic charging cables consist of a pogo pin magnetic connector and connecting cables. It is an optimized upgraded solution based on the function of charging and statistics and signal transmission applying traditional I / O adapters, micro USB, Type-C, HDMI, RJ45. More than 20 kinds of standard magnetic charging cables and more than 300 customized ones are currently available in CFE. CFE products conform to RoHS 2.0, HF, CP65, REACH, NP, etc.

— The applications of magnetic cables enjoy increasing popularity such as Consumer Electronics, Smart Wear, Smart Home, Health Detectors, Internet of Things, Medical Industry, Household Appliances, etc.
