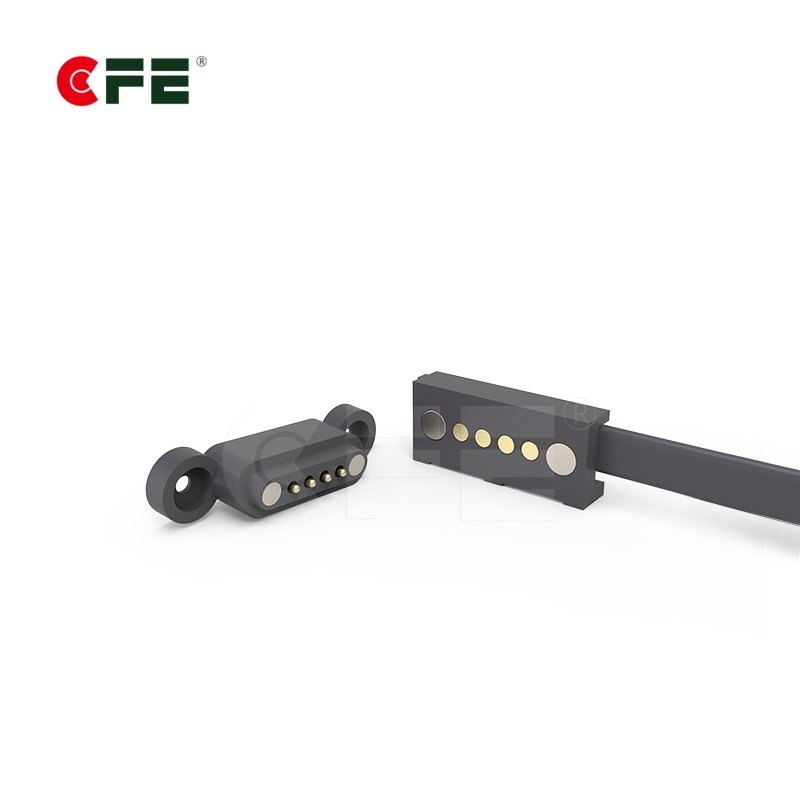

Male and female 4 pin custom charging magnetic connector

[CXA-0062] Male and female 4 pin custom charging magnetic connector for portable source

P/N: CXA-0062
Magnetic force: 1.5 N，support upgrade
Rated Voltage&Current: 12 V,5 A, faster recharge
Life test: 100,000 cycles,100% open & short test
Environment: anti-corrosion,48 hours salt-spray test
Pass Rohs, reach, HF, environmental protection

Description

Male and female 4 pin custom charging magnetic connector for portable source, CFE is professional manufacture who is well doing ODM & OEM magnetic connectors service in this field for over 14 years. Our magnetic products are for worldwide customer in market. It has unique shape and small body,easy to operate. The magnetic products can achieved automatic adsorption when you want to give the device charging,and protect your device.

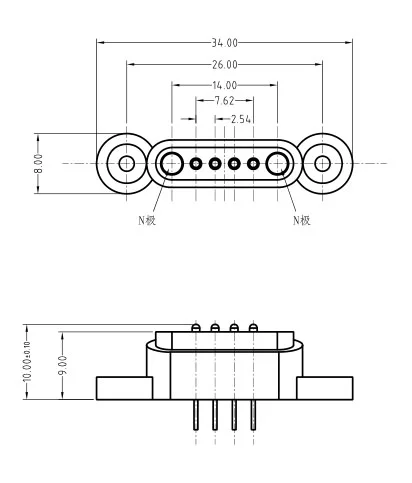

Specification of Male and female 4 pin custom charging magnetic connector for portable source—Male Part

Male and female 4 pin custom charging magnetic connector for portable source

Part No.	MMA-0053
Contact force	65±15 g at 1.0 mm working stroke
Life test	100,000 cycles
Rated voltage & current	12 V, 5 A
Contact resistance	50 milliohm
Application	portable source
Downloaded	Drawing

Specification of Male and female 4 pin custom charging magnetic connector for portable source—Female Part

Male and female 4 pin custom charging magnetic connector for portable source

Part No.	CFA-0062
Rated voltage & current	12 V, 5 A
Contact resistance	50 milliohm Max
Application	portable source
Downloaded	Drawing

Introduction to magnetic charging cable

— In the fierce differentiated product strategy competition, user experience has become the pursuit for any intelligent product designers. After the traditional plug-in board self-locking connector products,a new connection scheme which is the magnetic charging cable is gradually applied to the intelligent high-end product market. The connection solution has the advantages of a long life of pogo pin connector for more than 50000 times, automatic adsorption connection, easy removal of adsorption interface, high waterproof level and unlikely to loosen the machine.

— The magnetic charging cables consist of a pogo pin magnetic connector and connecting cables. It is an optimized upgraded solution based on the function of charging and statistics and signal transmission applying traditional I / O adapters, micro USB, Type-C, HDMI, RJ45. More than 20 kinds of standard magnetic charging cables and more than 300 customized ones are currently available in CFE. CFE products conform to RoHS 2.0, HF, CP65, REACH, NP, etc.

— The applications of magnetic cables enjoy increasing popularity such as Consumer Electronics, Smart Wear, Smart Home, Health Detectors, Internet of Things, Medical Industry, Household Appliances, etc.

Solutions

The founder of CFE has been involved with the R & D and manufacturing of pogo pin connectors since 2003 and has accumulated a wealth of technological experience. The mature product structure can meet the requirements of various industries, such as low impedance, high current, high life, lateral contact, etc. To provide customers with the safest and most reliable product solutions is always our pursuit and mission.
