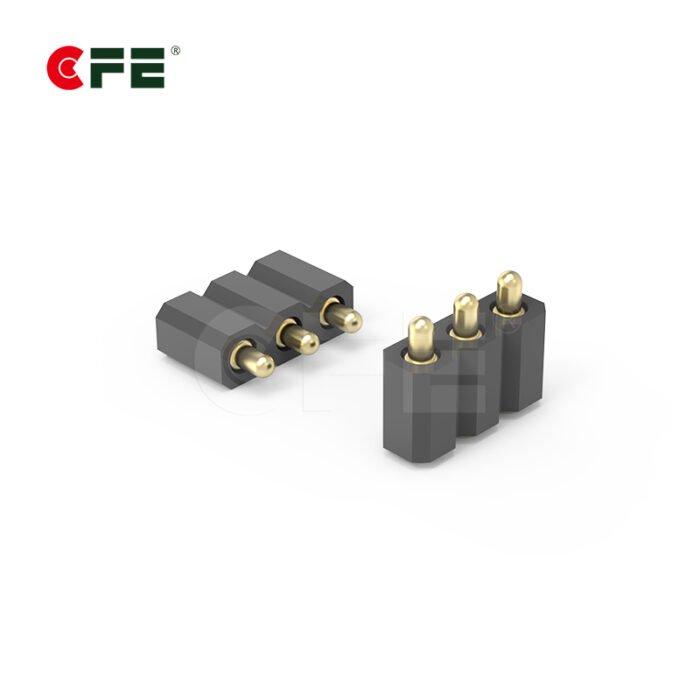

[MF200-2144-E03113A] Pcb spring contacts pogo pin connector

[MF200-2144-E03113A] Pcb spring contacts pogo pin connector

  • Insulator:Black high temperature plastic UL94 V-0
  • Full stroke:0.70mm,Rated current & voltage: DC 12V,1A
  • Contact resistance:50 milliohm Max
  • Life test: 100,000 cycles
Inquiry Now

Description

Pcb spring contacts pogo pin connector .This pogo pin connector is aimed at tough applications in rough environments, ideal for applications where the connector will experience side loading, great variation in vertical engagement, high levels of shock and vibration, high cycle counts and extremes of temperature.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of Pcb spring contacts pogo pin connector


 Pcb spring contacts pogo pin connector

Download PDF

Part No. MF200-2144-E03113A
Materials Insulator Black high (265℃) plastics UL94 V-0
Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS surface treatment
Mechanical Contact force 70g+20% at 1.0mm working stroke
Full stroke 1.40mm
Life test 100,000 cycles
Electrical Rated current and voltage DC 12V,3A max
Contact-resistance 50  milliohms max .The contact is more stable and the conductivity will be better

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
