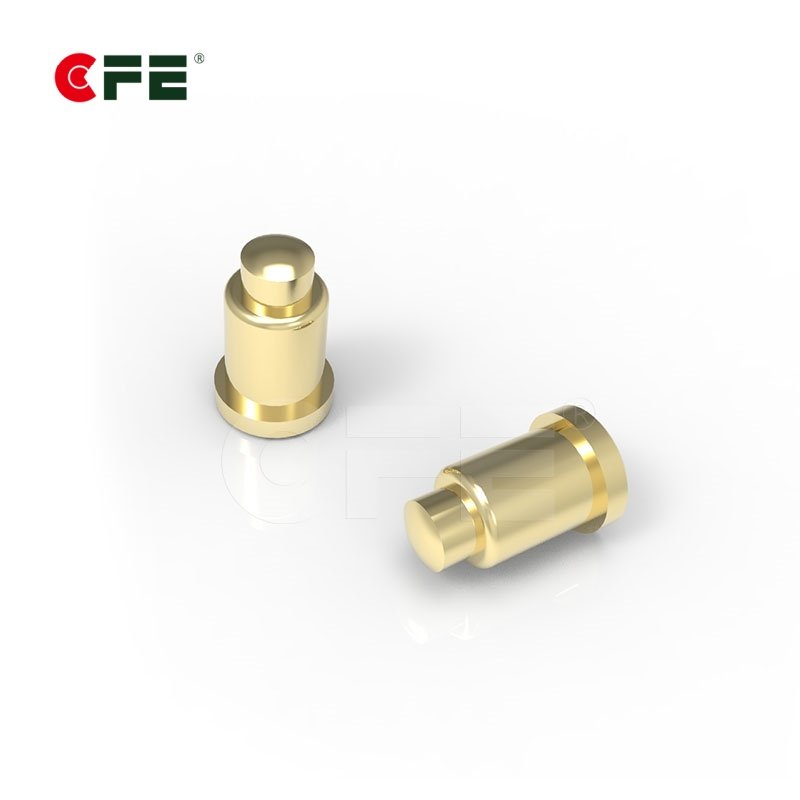

[BF89711] SMD spring contact pogo pin manufacturer

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze

  • Plating: Gold plated (According to customer requirements)

  • Spring: SUS surface treatment

  • Life test:50,000 cycles

  • Rated current & voltage: DC 12V; 1A

Inquiry Now

Description

SMD spring contact pogo pin manufacturer in China. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses

Our main product is spring loaded contact and pogo pin connector. CFE Pogo Pin contacts provide a reliable electrical connection in the most rigorous environments. Not easy to corrode, oxidize, increase electric conductivity, reduce impedance. The contact is more stable, so the conductivity of the product will be better.

Specification of SMD spring contact pogo pin


SMD spring contact pogo pin manufacturer

PDF download

Part No. BF89711
Materials Plunger Brass 0.50u” Au over Ni
Barrel Brass 0.50u” Au over Ni
Spring SUS 304 surface treatment
Mechanical Contact force 80g±20g at 0.6mm working stroke
Full stroke 0.9mm
Life test 50,000 cycles
Electrical Rated current and voltage DC 12V; 1A
Contact-resistance 50milliohm Max



Drawing of SMD spring contact pogo pin

SMD spring contact pogo pin manufacturer

To ensure the best usage, please operate it based on the working height. Based on the engineering drawings, shall not exceed the maximum allowed compression.

Customized service



The unit of  A, B, C, D, E, F is mm

Part NO.A B C D E FStroke(mm)Force(g)Current(A)PDF
BF001114.303.300.501.801.500.901.0501
BF0021715.2013.700.601.631.500.900.91001
BF0021815.2013.700.631.631.500.900.91001
BF0026116.5015.000.601.551.450.900.91001
BF005114.002.500.50/1.500.90/1201
BF006113.002.000.502.001.500.900.7501
BF008115.504.500.501.801.480.900.81201
BF010114.203.20//1.000.500.8401
BF0121117.0014.702.001.702.001.401.51302
BF013119.006.503.301.501.601.1080
BF014113.502.500.401.821.761.060.5601
BF018113.002.000.401.831.551.050.71101
BF019114.403.400.401.831.551.070.61501
BF020116.004.000.502.001.500.90/801
BF020146.004.000.502.001.501.001.0801
BF022118.005.500.701.801.601.001.51302
BF0281116.5013.00//2.001.401.51501
BF030247.004.50//2.952.301.5180/
BF031119.006.503.301.351.450.901.580/
BF035115.403.900.701.801.501.001.01203
BF0431212.6011.100.901.801.500.901.0601
BF0432020.6019.100.901.801.500.901.0301
BF0433636.6035.100.901.801.500.901.0601
BF045116.825.420.601.901.500.900.91001
BF047115.003.600.501.801.501.00/1101
BF048117.005.000.501.801.501.000.7502
BF049112.301.600.401.451.350.90/701
BF052117.905.700.601.801.500.901.2602
BF057115.503.050.502.301.501.000.9451
BF057214.502.450.502.301.501.000.5451
BF0581114.009.00//1.501.00/1201
BF063114.002.700.402.501.500.901.0801
BF069117.305.250.501.361.300.800.8952
BF082112.901.700.402.001.500.900.965-951
BF083112.301.500.301.401.250.80/301
BF083122.301.500.301.401.250.80/301
BF085113.602.300.302.001.250.80/701
BF088113.502.500.301.701.500.900.5451
BF095114.502.450.402.301.501.00/451
BF096114.253.250.503.502.502.001.03001
BF096124.253.25/3.502.502.001.03001
BF097113.202.00/2.001.250.80/951
BF098116.004.50/1.801.350.850.525-451
BF098126.004.501.001.801.350.851.01101
BF100015.003.301.001.801.481.001.0301
BF104113.402.500.401.801.501.000.81101
BF104123.402.500.401.801.501.000.6601
BF104133.402.500.401.801.501.000.81103
BF105114.003.000.401.801.481.00/603
BF107113.702.400.401.801.481.000.71101
BF116114.704.000.251.881.571.000.7883
BF127114.303.00//1.500.900.81002
BF128219.507.001.502.001.480.901.01252
BF136019.408.30/1.801.481.001.0703
BF136119.908.30/1.801.481.001.0703
BF1362110.408.30/1.801.481.001.0703
BF146116.503.500.402.001.501.002.0601
BF150017.004.502.503.502.902.301.5180/
BF153118.305.200.803.502.301.100.7703
BF1571110.504.50//1.500.901.01001
BF158115.003.600.401.801.481.001.01201
BF165112.501.900.701.801.601.001.9500.5
BF166114.503.200.701.801.601.001.3900.5
BF183112.101.450.551.301.050.701.761
BF191015.504.000.802.001.480.900.7802
BF194012.541.900.401.801.481.000.5501
BF197019.507.00//2.952.301.51801
BF19801-02350H1A7.505.301.801.481.001.0701
BF1990111.008.000.401.801.501.001.0902.5
BF204014.502.700.401.801.801.071.0601
BF218016.404.601.002.502.001.501.01504
BF250114.302.60/3.102.551.900.92501
BF306117.104.50//3.502.702.6200/
BF3151111.508.800.605.002.301.501.752353
BF3191123.6015.70//2.001.404.0250
BF362112.802.00/2.001.500.900.8600.1
BF366214.002.500.402.001.501.001.0401
BF368112.501.600.301.401.250.800.5550.5
BF37111-10254H0A9.007.304.25//1.000.7602
BF37211-06254B0A3.80/0.402.00/1.000.8251
BF37311-08340H0A9.00///1.480.901.8751
BF38411-04254F0A11.007.304.005.08/1.001703
BF385112.401.450.301.801.480.901.81201.5
BF38511-0325001A2.301.450.301.801.530.901.81201.5
BF385222.501.700.401.801.481.000.61001.0
BF39311-12254H0A6.503.000.401.801.501.001.8601
BF395113.302.700.502.201.801.000.5601
BF405115.003.500.801.601.200.701.1901
BF40611-06254S0A7.625.082.541.27//0.62501
BF40711-01000H1A3.903.002.601.801.501.000.8401
BF409113.502.50/1.801.481.000.5601
BF42011-02762E0A7.304.000.4/2.541.001701
BF4241111.502.000.504.003.503.000.8100/
BF445115.003.700.402.001.500.901.0501.0
BF44711-A03113A8.005.30///1.001301
BF44911-05250H0A7.500.401.80/1.00/1703
BF451112.001.550.402.101.781.200.4701.0
BF469114.002.600.401.801.481.000.81001
BF470113.902.70//1.601.000.6501
BF471113.102.20/1.801.300.900.6701
BF477114.903.50/2.001.481.000.8801
BF479119.508.000.401.901.481.000.8601
BF128919.507.001.701.801.481.001.01252
BF498114.803.500.501.801.500.900.0402
BF578115.504.000.502.001.501.001.00100.003
BF561115.304.00//3.002.201.00100.001
BF605115.003.300.401.801.481.000.6301
MF801-11GG1.301.000.401.501.280.800.2201
MF802-11GG1.501.300.401.501.280.800.2201
MF802-21GG1.701.300.401.501.280.800.2201
MF803-11GG1.901.500.401.501.280.800.4701
MF803-21GG2.101.500.401.501.280.800.4701
MF803-31GG2.301.500.401.501.280.800.4701
MF804-11GG2.501.700.401.501.280.800.6701
MF804-21GG2.701.700.401.501.280.800.6701
MF805-11GG2.902.000.401.501.280.800.6801
MF806-11GG3.102.300.401.501.280.800.8801
MF806-21GG3.302.30.401.501.280.800.8801
MF807-11GG3.502.600.401.501.280.800.8801
MF807-21GG3.702.600.401.501.280.800.8801
MF807-31GG4.002.600.401.501.280.800.8801
MF808-11GG4.203.000.401.501.280.801.0801
MF808-21GG4.403.000.401.501.280.801.0801
MF809-11GG4.503.300.401.501.280.801.0701
MF809-21GG5.003.300.401.501.280.801.0701
MF810-11GG5.504.300.401.501.281.001.0701
MF810-21GG6.004.300.401.501.281.001.0701
MF811-11GG6.505.300.401.501.280.801.0701
MF811-21GG7.005.300.401.501.280.801.0701
MF811-31GG7.505.300.401.501.280.801.0701
MF811-41GG8.005.300.401.501.250.801.0701
BF651118.206.000.502.302.001.507.21202
BF655113.502.700.502.001.500.900.5701
BF657112.001.00//1.220.800.7601
BF690112.951.850.302.001.250.802.5401
BF724112.701.700.401.701.380.900.61001
BF766113.252.000.301.801.480.900.7501
BF686117.256.150.671.801.481.001.0703
BF671116.304.900.301.301.080.651.3601
BF671216.004.900.301.301.080.651.0501
BF802115.003.500.301.000.900.500.5401
BF8391111.5010.000.401.801.481.000.7853
BF607218.106.800.401.201.020.601.0401
BF607318.106.800.401.201.020.601.0301
BF862113.302.50//1.000.450.6601
BF897112.902.200.401.801.481.000.9801
BF897213.702.700.401.801.481.000.6801
BF821116.004.300.401.801.481.001.0502
BF919013.502.600.302.501.501.000.6701
BF166114.503.200.701.801.601.003.50750.5
BF981114.803.300.601.451.200.704.00601
BF9571111.208.201.004.503.202.001.00903
BF250112.604.20/3.102.551.903.302501
BF802113.505.000.801.000.900.500.50401
BF768116.053.402.658.207.00/2.5030
BF794118.006.000.502.502.001.201.501203
BF1063013.502.600.401.801.481.000.801001

Learn more about How to order special pogo pin, If you have special requirements please contact us
