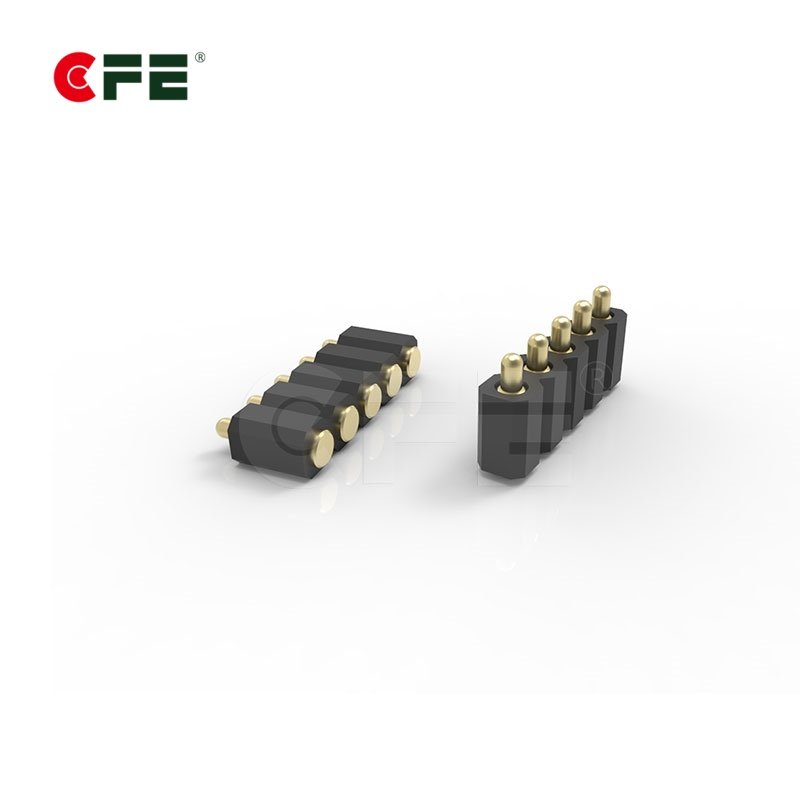

[BF102401-05254E0H] SMT pogo pin spring loaded connector 2.54 mm pitch

Home/POGO PIN CONNECTORS/POGO PIN CONNECTOR/2.54mm Pitch SMD & SMT Pogo Pin Connector/[BF102401-05254E0H] SMT pogo pin spring loaded connector 2.54 mm pitch

[BF102401-05254E0H] SMT pogo pin spring loaded connector 2.54 mm pitch

  • High Durability

  • Easily adapted to customer needs

  • Spring strength can be measured and regulated

  • Space-saving in comparison with plugs,RoHs Compliant and Halogen-free

Inquiry Now

Description

SMT pogo pin spring loaded connector 2.54 mm pitch.Each spring pin is rated for 9 amps at a 10°C temperature rise with a contact resistance of less than 20 mili-ohms. Pogo pin connector (SLC) that is aimed at tough applications in rough environments. They are ideal for applications where the connector will experience side loading, great variation in vertical engagement, high levels of shock and vibration, high cycle counts and extremes of temperature.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of SMT pogo pin spring loaded connector 2.54 mm pitch


 SMT pogo pin spring loaded connector 2.54 mm pitch

Download PDF

Part No. BF102401-05254E0H
Materials Insulator Black high temperature plastic UL94 V-0
Plunger Brass 0.125um Au over Ni
Barrel Brass 0.125um Au over Ni
Spring SUS Au
Mechanical Contact force 50g ±15g at 1.0mm working stroke
Full stroke 1.4mm
Life test 100,000 cycles
Electrical Rated current and voltage 12V DC, 3A max
Contact-resistance 50 milliohms max .The contact is more stable and the conductivity will be better

Application of SMT pogo pin spring loaded connector 2.54 mm pitch

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
