- 2.54 mm pitch SMT pogo pin connector
- Contact force:100g±20% at 0.6mm working storke
- Full stroke:0.70mm,Rated current & voltage: DC 12V,1A
- Contact resistance:50 milliohm Max ,Life test: 100,000 cycles
Description
SMT pogo spring loaded pin connector wholesale.SMT pogo spring loaded pin connector wholesale. SMT connectors offer space saving spring-loaded solutions for a variety of interconnect applications. Our pogo pin conectors are RoHs compliant and halogen-free.CFE is the world’s largest manufacturer of compact and reliable spring loaded connectors, or pogo pins, for electronic devices.
Advantages of our company
- World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
- World’s second manufacturer developed 1.27 pitch pogo pin connector
- Asia’s first manufacturer achieved compression mechanical 1 million life times
- Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
- China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

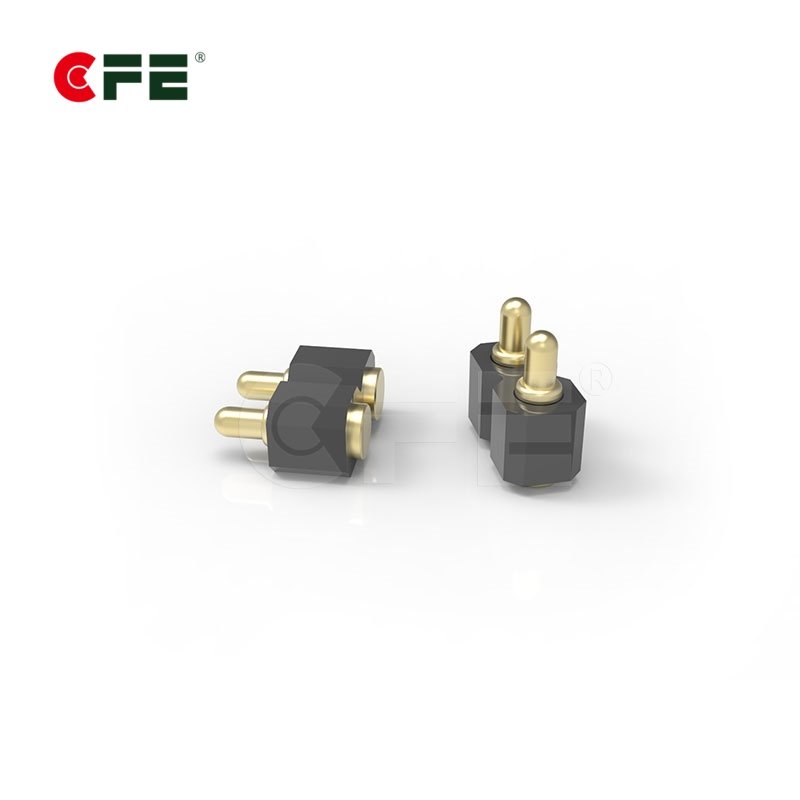

Details of SMT pogo spring loaded pin connector wholesale
Part No. | MF100-2122-A02100A | ||
Materials | Insulator | Black high (265℃) plastics UL94 V-0 | |
Plunger | Brass Au over Ni | ||
Barrel | Brass Au over Ni | ||
Spring | SUS surface treatment | ||
Mechanical | Contact force | 90g+20% at 1.0mm working stroke | |
Full stroke | 1.40mm | ||
Life test | 100,000 cycles | ||
Electrical | Rated current and voltage | DC 12V,1A max | |
Contact-resistance | 50 milliohms max .The contact is more stable and the conductivity will be better |
Customized service
Learn more about How to order special pogo pin, If you have special requirements please contact us
Learn more type of Pogo pin
SMT/SMD | DIP | Right angle | Double head | Solder cup | Screw thread |
