- Barrel & plunger: Brass/Be-Cu/Phosphor bronze
- Plating: Gold plated (According to customer requirements)
- Spring: SUS surface treatment
- Life test:20,000 cycles
- Rated current & voltage: Can be customized
Description
SMT SMD spring loaded pcb contacts supplier in China. Flat SMT pogo pin type with stable quality. The bottom of barrel is designed as flat shape, easy to be mounted on PCB. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses
Advantages of our factory
- World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
- World’s second manufacturer developed 1.27 pitch pogo pin connector
- Asia’s first manufacturer achieved compression mechanical 1 million life times
- Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
- China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

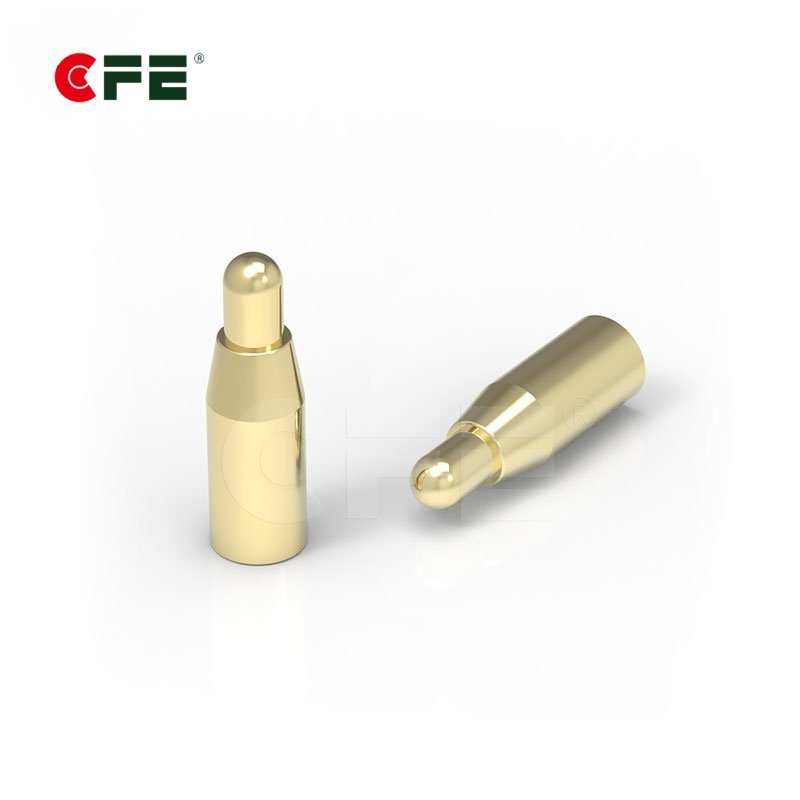

Specification of SMT SMD spring loaded pcb contacts
|
Part No. | BF19211 | |
| Materials | Plunger | Brass 0.5um Au over 1.25um Ni | |
| Barrel | Brass 0.5um Au over 1.25um Ni | ||
| Spring | SUS 304 surface treatment | ||
| Mechanical | Contact force | 90g±20g at 1.0mm working stroke | |
| Full stroke | 1.8mm | ||
| Life test | 20,000 cycles | ||
| Electrical | Rated current and voltage | Can be customized | |
| Contact-resistance | 50milliohm Max | ||
Customized service
The unit of A, B, C, D, E, F is mm
| Part NO. | A | B | C | D | E | F | Stroke(mm) | Force(g) | Current(A) | |
|---|---|---|---|---|---|---|---|---|---|---|
| BF00111 | 4.30 | 3.30 | 0.50 | 1.80 | 1.50 | 0.90 | 1.0 | 50 | 1 |  |
| BF00217 | 15.20 | 13.70 | 0.60 | 1.63 | 1.50 | 0.90 | 0.9 | 100 | 1 | |
| BF00218 | 15.20 | 13.70 | 0.63 | 1.63 | 1.50 | 0.90 | 0.9 | 100 | 1 | |
| BF00261 | 16.50 | 15.00 | 0.60 | 1.55 | 1.45 | 0.90 | 0.9 | 100 | 1 | |
| BF00511 | 4.00 | 2.50 | 0.50 | / | 1.50 | 0.90 | / | 120 | 1 | |
| BF00611 | 3.00 | 2.00 | 0.50 | 2.00 | 1.50 | 0.90 | 0.7 | 50 | 1 | |
| BF00811 | 5.50 | 4.50 | 0.50 | 1.80 | 1.48 | 0.90 | 0.8 | 120 | 1 | |
| BF01011 | 4.20 | 3.20 | / | / | 1.00 | 0.50 | 0.8 | 40 | 1 | |
| BF01211 | 17.00 | 14.70 | 2.00 | 1.70 | 2.00 | 1.40 | 1.5 | 130 | 2 | |
| BF01311 | 9.00 | 6.50 | 3.30 | 1.50 | 1.60 | 1.10 | 80 | |
||
| BF01411 | 3.50 | 2.50 | 0.40 | 1.82 | 1.76 | 1.06 | 0.5 | 60 | 1 | |
| BF01811 | 3.00 | 2.00 | 0.40 | 1.83 | 1.55 | 1.05 | 0.7 | 110 | 1 | |
| BF01911 | 4.40 | 3.40 | 0.40 | 1.83 | 1.55 | 1.07 | 0.6 | 150 | 1 | |
| BF02011 | 6.00 | 4.00 | 0.50 | 2.00 | 1.50 | 0.90 | / | 80 | 1 | |
| BF02014 | 6.00 | 4.00 | 0.50 | 2.00 | 1.50 | 1.00 | 1.0 | 80 | 1 | |
| BF02211 | 8.00 | 5.50 | 0.70 | 1.80 | 1.60 | 1.00 | 1.5 | 130 | 2 | |
| BF02811 | 16.50 | 13.00 | / | / | 2.00 | 1.40 | 1.5 | 150 | 1 | |
| BF03024 | 7.00 | 4.50 | / | / | 2.95 | 2.30 | 1.5 | 180 | / | |
| BF03111 | 9.00 | 6.50 | 3.30 | 1.35 | 1.45 | 0.90 | 1.5 | 80 | / | |
| BF03511 | 5.40 | 3.90 | 0.70 | 1.80 | 1.50 | 1.00 | 1.0 | 120 | 3 | |
| BF04312 | 12.60 | 11.10 | 0.90 | 1.80 | 1.50 | 0.90 | 1.0 | 60 | 1 | |
| BF04320 | 20.60 | 19.10 | 0.90 | 1.80 | 1.50 | 0.90 | 1.0 | 30 | 1 | |
| BF04336 | 36.60 | 35.10 | 0.90 | 1.80 | 1.50 | 0.90 | 1.0 | 60 | 1 | |
| BF04511 | 6.82 | 5.42 | 0.60 | 1.90 | 1.50 | 0.90 | 0.9 | 100 | 1 | |
| BF04711 | 5.00 | 3.60 | 0.50 | 1.80 | 1.50 | 1.00 | / | 110 | 1 | |
| BF04811 | 7.00 | 5.00 | 0.50 | 1.80 | 1.50 | 1.00 | 0.7 | 50 | 2 | |
| BF04911 | 2.30 | 1.60 | 0.40 | 1.45 | 1.35 | 0.90 | / | 70 | 1 | |
| BF05211 | 7.90 | 5.70 | 0.60 | 1.80 | 1.50 | 0.90 | 1.2 | 60 | 2 | |
| BF05711 | 5.50 | 3.05 | 0.50 | 2.30 | 1.50 | 1.00 | 0.9 | 45 | 1 | |
| BF05721 | 4.50 | 2.45 | 0.50 | 2.30 | 1.50 | 1.00 | 0.5 | 45 | 1 | |
| BF05811 | 14.00 | 9.00 | / | / | 1.50 | 1.00 | / | 120 | 1 | |
| BF06311 | 4.00 | 2.70 | 0.40 | 2.50 | 1.50 | 0.90 | 1.0 | 80 | 1 | |
| BF06911 | 7.30 | 5.25 | 0.50 | 1.36 | 1.30 | 0.80 | 0.8 | 95 | 2 | |
| BF08211 | 2.90 | 1.70 | 0.40 | 2.00 | 1.50 | 0.90 | 0.9 | 65-95 | 1 | |
| BF08311 | 2.30 | 1.50 | 0.30 | 1.40 | 1.25 | 0.80 | / | 30 | 1 | |
| BF08312 | 2.30 | 1.50 | 0.30 | 1.40 | 1.25 | 0.80 | / | 30 | 1 | |
| BF08511 | 3.60 | 2.30 | 0.30 | 2.00 | 1.25 | 0.80 | / | 70 | 1 | |
| BF08811 | 3.50 | 2.50 | 0.30 | 1.70 | 1.50 | 0.90 | 0.5 | 45 | 1 | |
| BF09511 | 4.50 | 2.45 | 0.40 | 2.30 | 1.50 | 1.00 | / | 45 | 1 | |
| BF09611 | 4.25 | 3.25 | 0.50 | 3.50 | 2.50 | 2.00 | 1.0 | 300 | 1 | |
| BF09612 | 4.25 | 3.25 | / | 3.50 | 2.50 | 2.00 | 1.0 | 300 | 1 | |
| BF09711 | 3.20 | 2.00 | / | 2.00 | 1.25 | 0.80 | / | 95 | 1 | |
| BF09811 | 6.00 | 4.50 | / | 1.80 | 1.35 | 0.85 | 0.5 | 25-45 | 1 | |
| BF09812 | 6.00 | 4.50 | 1.00 | 1.80 | 1.35 | 0.85 | 1.0 | 110 | 1 | |
| BF10001 | 5.00 | 3.30 | 1.00 | 1.80 | 1.48 | 1.00 | 1.0 | 30 | 1 | |
| BF10411 | 3.40 | 2.50 | 0.40 | 1.80 | 1.50 | 1.00 | 0.8 | 110 | 1 | |
| BF10412 | 3.40 | 2.50 | 0.40 | 1.80 | 1.50 | 1.00 | 0.6 | 60 | 1 | |
| BF10413 | 3.40 | 2.50 | 0.40 | 1.80 | 1.50 | 1.00 | 0.8 | 110 | 3 | |
| BF10511 | 4.00 | 3.00 | 0.40 | 1.80 | 1.48 | 1.00 | / | 60 | 3 | |
| BF10711 | 3.70 | 2.40 | 0.40 | 1.80 | 1.48 | 1.00 | 0.7 | 110 | 1 | |
| BF11611 | 4.70 | 4.00 | 0.25 | 1.88 | 1.57 | 1.00 | 0.7 | 88 | 3 | |
| BF12711 | 4.30 | 3.00 | / | / | 1.50 | 0.90 | 0.8 | 100 | 2 | |
| BF12821 | 9.50 | 7.00 | 1.50 | 2.00 | 1.48 | 0.90 | 1.0 | 125 | 2 | |
| BF13601 | 9.40 | 8.30 | / | 1.80 | 1.48 | 1.00 | 1.0 | 70 | 3 | |
| BF13611 | 9.90 | 8.30 | / | 1.80 | 1.48 | 1.00 | 1.0 | 70 | 3 | |
| BF13621 | 10.40 | 8.30 | / | 1.80 | 1.48 | 1.00 | 1.0 | 70 | 3 | |
| BF14611 | 6.50 | 3.50 | 0.40 | 2.00 | 1.50 | 1.00 | 2.0 | 60 | 1 | |
| BF15001 | 7.00 | 4.50 | 2.50 | 3.50 | 2.90 | 2.30 | 1.5 | 180 | / | |
| BF15311 | 8.30 | 5.20 | 0.80 | 3.50 | 2.30 | 1.10 | 0.7 | 70 | 3 | |
| BF15711 | 10.50 | 4.50 | / | / | 1.50 | 0.90 | 1.0 | 100 | 1 | |
| BF15811 | 5.00 | 3.60 | 0.40 | 1.80 | 1.48 | 1.00 | 1.0 | 120 | 1 | |
| BF16511 | 2.50 | 1.90 | 0.70 | 1.80 | 1.60 | 1.00 | 1.9 | 50 | 0.5 | |
| BF16611 | 4.50 | 3.20 | 0.70 | 1.80 | 1.60 | 1.00 | 1.3 | 90 | 0.5 | |
| BF18311 | 2.10 | 1.45 | 0.55 | 1.30 | 1.05 | 0.70 | 1.7 | 6 | 1 | |
| BF19101 | 5.50 | 4.00 | 0.80 | 2.00 | 1.48 | 0.90 | 0.7 | 80 | 2 | |
| BF19401 | 2.54 | 1.90 | 0.40 | 1.80 | 1.48 | 1.00 | 0.5 | 50 | 1 | |
| BF19701 | 9.50 | 7.00 | / | / | 2.95 | 2.30 | 1.5 | 180 | 1 | |
| BF19801-02350H1A | 7.50 | 5.30 | 1.80 | 1.48 | 1.00 | 1.0 | 70 | 1 | |
|
| BF19901 | 11.00 | 8.00 | 0.40 | 1.80 | 1.50 | 1.00 | 1.0 | 90 | 2.5 | |
| BF20401 | 4.50 | 2.70 | 0.40 | 1.80 | 1.80 | 1.07 | 1.0 | 60 | 1 | |
| BF21801 | 6.40 | 4.60 | 1.00 | 2.50 | 2.00 | 1.50 | 1.0 | 150 | 4 | |
| BF25011 | 4.30 | 2.60 | / | 3.10 | 2.55 | 1.90 | 0.9 | 250 | 1 | |
| BF30611 | 7.10 | 4.50 | / | / | 3.50 | 2.70 | 2.6 | 200 | / | |
| BF31511 | 11.50 | 8.80 | 0.60 | 5.00 | 2.30 | 1.50 | 1.75 | 235 | 3 | |
| BF31911 | 23.60 | 15.70 | / | / | 2.00 | 1.40 | 4.0 | 250 | |
|
| BF36211 | 2.80 | 2.00 | / | 2.00 | 1.50 | 0.90 | 0.8 | 60 | 0.1 | |
| BF36621 | 4.00 | 2.50 | 0.40 | 2.00 | 1.50 | 1.00 | 1.0 | 40 | 1 | |
| BF36811 | 2.50 | 1.60 | 0.30 | 1.40 | 1.25 | 0.80 | 0.5 | 55 | 0.5 | |
| BF37111-10254H0A | 9.00 | 7.30 | 4.25 | / | / | 1.00 | 0.7 | 60 | 2 | |
| BF37211-06254B0A | 3.80 | / | 0.40 | 2.00 | / | 1.00 | 0.8 | 25 | 1 | |
| BF37311-08340H0A | 9.00 | / | / | / | 1.48 | 0.90 | 1.8 | 75 | 1 | |
| BF38411-04254F0A | 11.00 | 7.30 | 4.00 | 5.08 | / | 1.00 | 1 | 70 | 3 | |
| BF38511 | 2.40 | 1.45 | 0.30 | 1.80 | 1.48 | 0.90 | 1.8 | 120 | 1.5 | |
| BF38511-0325001A | 2.30 | 1.45 | 0.30 | 1.80 | 1.53 | 0.90 | 1.8 | 120 | 1.5 | |
| BF38522 | 2.50 | 1.70 | 0.40 | 1.80 | 1.48 | 1.00 | 0.6 | 100 | 1.0 | |
| BF39311-12254H0A | 6.50 | 3.00 | 0.40 | 1.80 | 1.50 | 1.00 | 1.8 | 60 | 1 | |
| BF39511 | 3.30 | 2.70 | 0.50 | 2.20 | 1.80 | 1.00 | 0.5 | 60 | 1 | |
| BF40511 | 5.00 | 3.50 | 0.80 | 1.60 | 1.20 | 0.70 | 1.1 | 90 | 1 | |
| BF40611-06254S0A | 7.62 | 5.08 | 2.54 | 1.27 | / | / | 0.62 | 50 | 1 | |
| BF40711-01000H1A | 3.90 | 3.00 | 2.60 | 1.80 | 1.50 | 1.00 | 0.8 | 40 | 1 | |
| BF40911 | 3.50 | 2.50 | / | 1.80 | 1.48 | 1.00 | 0.5 | 60 | 1 | |
| BF42011-02762E0A | 7.30 | 4.00 | 0.4 | / | 2.54 | 1.00 | 1 | 70 | 1 | |
| BF42411 | 11.50 | 2.00 | 0.50 | 4.00 | 3.50 | 3.00 | 0.8 | 100 | / | |
| BF44511 | 5.00 | 3.70 | 0.40 | 2.00 | 1.50 | 0.90 | 1.0 | 50 | 1.0 | |
| BF44711-A03113A | 8.00 | 5.30 | / | / | / | 1.00 | 1 | 30 | 1 | |
| BF44911-05250H0A | 7.50 | 0.40 | 1.80 | / | 1.00 | / | 1 | 70 | 3 | |
| BF45111 | 2.00 | 1.55 | 0.40 | 2.10 | 1.78 | 1.20 | 0.4 | 70 | 1.0 | |
| BF46911 | 4.00 | 2.60 | 0.40 | 1.80 | 1.48 | 1.00 | 0.8 | 100 | 1 | |
| BF47011 | 3.90 | 2.70 | / | / | 1.60 | 1.00 | 0.6 | 50 | 1 | |
| BF47111 | 3.10 | 2.20 | / | 1.80 | 1.30 | 0.90 | 0.6 | 70 | 1 | |
| BF47711 | 4.90 | 3.50 | / | 2.00 | 1.48 | 1.00 | 0.8 | 80 | 1 | |
| BF47911 | 9.50 | 8.00 | 0.40 | 1.90 | 1.48 | 1.00 | 0.8 | 60 | 1 | |
| BF12891 | 9.50 | 7.00 | 1.70 | 1.80 | 1.48 | 1.00 | 1.0 | 125 | 2 | |
| BF49811 | 4.80 | 3.50 | 0.50 | 1.80 | 1.50 | 0.90 | 0.0 | 40 | 2 | |
| BF57811 | 5.50 | 4.00 | 0.50 | 2.00 | 1.50 | 1.00 | 1.00 | 100.00 | 3 | |
| BF56111 | 5.30 | 4.00 | / | / | 3.00 | 2.20 | 1.00 | 100.00 | 1 | |
| BF60511 | 5.00 | 3.30 | 0.40 | 1.80 | 1.48 | 1.00 | 0.6 | 30 | 1 | |
| MF801-11GG | 1.30 | 1.00 | 0.40 | 1.50 | 1.28 | 0.80 | 0.2 | 20 | 1 | |
| MF802-11GG | 1.50 | 1.30 | 0.40 | 1.50 | 1.28 | 0.80 | 0.2 | 20 | 1 | |
| MF802-21GG | 1.70 | 1.30 | 0.40 | 1.50 | 1.28 | 0.80 | 0.2 | 20 | 1 | |
| MF803-11GG | 1.90 | 1.50 | 0.40 | 1.50 | 1.28 | 0.80 | 0.4 | 70 | 1 | |
| MF803-21GG | 2.10 | 1.50 | 0.40 | 1.50 | 1.28 | 0.80 | 0.4 | 70 | 1 | |
| MF803-31GG | 2.30 | 1.50 | 0.40 | 1.50 | 1.28 | 0.80 | 0.4 | 70 | 1 | |
| MF804-11GG | 2.50 | 1.70 | 0.40 | 1.50 | 1.28 | 0.80 | 0.6 | 70 | 1 | |
| MF804-21GG | 2.70 | 1.70 | 0.40 | 1.50 | 1.28 | 0.80 | 0.6 | 70 | 1 | |
| MF805-11GG | 2.90 | 2.00 | 0.40 | 1.50 | 1.28 | 0.80 | 0.6 | 80 | 1 | |
| MF806-11GG | 3.10 | 2.30 | 0.40 | 1.50 | 1.28 | 0.80 | 0.8 | 80 | 1 | |
| MF806-21GG | 3.30 | 2.3 | 0.40 | 1.50 | 1.28 | 0.80 | 0.8 | 80 | 1 | |
| MF807-11GG | 3.50 | 2.60 | 0.40 | 1.50 | 1.28 | 0.80 | 0.8 | 80 | 1 | |
| MF807-21GG | 3.70 | 2.60 | 0.40 | 1.50 | 1.28 | 0.80 | 0.8 | 80 | 1 | |
| MF807-31GG | 4.00 | 2.60 | 0.40 | 1.50 | 1.28 | 0.80 | 0.8 | 80 | 1 | |
| MF808-11GG | 4.20 | 3.00 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 80 | 1 | |
| MF808-21GG | 4.40 | 3.00 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 80 | 1 | |
| MF809-11GG | 4.50 | 3.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 70 | 1 | |
| MF809-21GG | 5.00 | 3.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 70 | 1 | |
| MF810-11GG | 5.50 | 4.30 | 0.40 | 1.50 | 1.28 | 1.00 | 1.0 | 70 | 1 | |
| MF810-21GG | 6.00 | 4.30 | 0.40 | 1.50 | 1.28 | 1.00 | 1.0 | 70 | 1 | |
| MF811-11GG | 6.50 | 5.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 70 | 1 | |
| MF811-21GG | 7.00 | 5.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 70 | 1 | |
| MF811-31GG | 7.50 | 5.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.0 | 70 | 1 | |
| MF811-41GG | 8.00 | 5.30 | 0.40 | 1.50 | 1.25 | 0.80 | 1.0 | 70 | 1 | |
| BF65111 | 8.20 | 6.00 | 0.50 | 2.30 | 2.00 | 1.50 | 7.2 | 120 | 2 | |
| BF65511 | 3.50 | 2.70 | 0.50 | 2.00 | 1.50 | 0.90 | 0.5 | 70 | 1 | |
| BF65711 | 2.00 | 1.00 | / | / | 1.22 | 0.80 | 0.7 | 60 | 1 | |
| BF69011 | 2.95 | 1.85 | 0.30 | 2.00 | 1.25 | 0.80 | 2.5 | 40 | 1 | |
| BF72411 | 2.70 | 1.70 | 0.40 | 1.70 | 1.38 | 0.90 | 0.6 | 100 | 1 | |
| BF76611 | 3.25 | 2.00 | 0.30 | 1.80 | 1.48 | 0.90 | 0.7 | 50 | 1 | |
| BF68611 | 7.25 | 6.15 | 0.67 | 1.80 | 1.48 | 1.00 | 1.0 | 70 | 3 | |
| BF67111 | 6.30 | 4.90 | 0.30 | 1.30 | 1.08 | 0.65 | 1.3 | 60 | 1 | |
| BF67121 | 6.00 | 4.90 | 0.30 | 1.30 | 1.08 | 0.65 | 1.0 | 50 | 1 | |
| BF80211 | 5.00 | 3.50 | 0.30 | 1.00 | 0.90 | 0.50 | 0.5 | 40 | 1 | |
| BF83911 | 11.50 | 10.00 | 0.40 | 1.80 | 1.48 | 1.00 | 0.7 | 85 | 3 | |
| BF60721 | 8.10 | 6.80 | 0.40 | 1.20 | 1.02 | 0.60 | 1.0 | 40 | 1 | |
| BF60731 | 8.10 | 6.80 | 0.40 | 1.20 | 1.02 | 0.60 | 1.0 | 30 | 1 | |
| BF86211 | 3.30 | 2.50 | / | / | 1.00 | 0.45 | 0.6 | 60 | 1 | |
| BF89711 | 2.90 | 2.20 | 0.40 | 1.80 | 1.48 | 1.00 | 0.9 | 80 | 1 | |
| BF89721 | 3.70 | 2.70 | 0.40 | 1.80 | 1.48 | 1.00 | 0.6 | 80 | 1 | |
| BF82111 | 6.00 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.0 | 50 | 2 | |
| BF91901 | 3.50 | 2.60 | 0.30 | 2.50 | 1.50 | 1.00 | 0.6 | 70 | 1 | |
| BF16611 | 4.50 | 3.20 | 0.70 | 1.80 | 1.60 | 1.00 | 3.50 | 75 | 0.5 | |
| BF98111 | 4.80 | 3.30 | 0.60 | 1.45 | 1.20 | 0.70 | 4.00 | 60 | 1 | |
| BF95711 | 11.20 | 8.20 | 1.00 | 4.50 | 3.20 | 2.00 | 1.00 | 90 | 3 | |
| BF25011 | 2.60 | 4.20 | / | 3.10 | 2.55 | 1.90 | 3.30 | 250 | 1 | |
| BF80211 | 3.50 | 5.00 | 0.80 | 1.00 | 0.90 | 0.50 | 0.50 | 40 | 1 | |
| BF76811 | 6.05 | 3.40 | 2.65 | 8.20 | 7.00 | / | 2.50 | 30 | ||
| BF79411 | 8.00 | 6.00 | 0.50 | 2.50 | 2.00 | 1.20 | 1.50 | 120 | 3 | |
| BF106301 | 3.50 | 2.60 | 0.40 | 1.80 | 1.48 | 1.00 | 0.80 | 100 | 1 |
Learn more about How to order special pogo pin, If you have special requirements please contact us
You may like our customized pogo pin connector
Application of SMT SMD spring loaded pcb contacts
 |
 |
 |
||
Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details
- Consumer electronics products/PCB board
- Digital camera/Medical products/ Printer cartridges
- Golf handle/ Electric vehicles/ Telephony applications
- Cardiac defibrillator/Car charging /Air purifier
- LED flat luminaries/LED flash light/Tablet/Laptop/PC
- Power bank/ Digital product/ Small household electrical application
- Charging products/Signal transmission products etc
Learn more type of Pogo pin
 |
 |
 |
 |
 |
 |
|||||
| SMT/SMD | DIP | Right angle | Double head | Solder cup | Screw thread |
Contact us
Dongguan CFE Electronic Co., Ltd. is a China leading precision spring-loaded connector manufacturing company. We focused on the development and manufacture of Pogo Pin & connector 9 years long. As the leading electronic components manufacturer in China, CFE has accomplished over 300 customized Pogo Pin chargers range from 2 pins to 30 pins. We also achieved the innovation of Pogo Pin product, which is the first invention in the Asian, the second invention around the world. What’s more, CFE also provides the short delivery times and competitive price for our clients. Learn more about us
