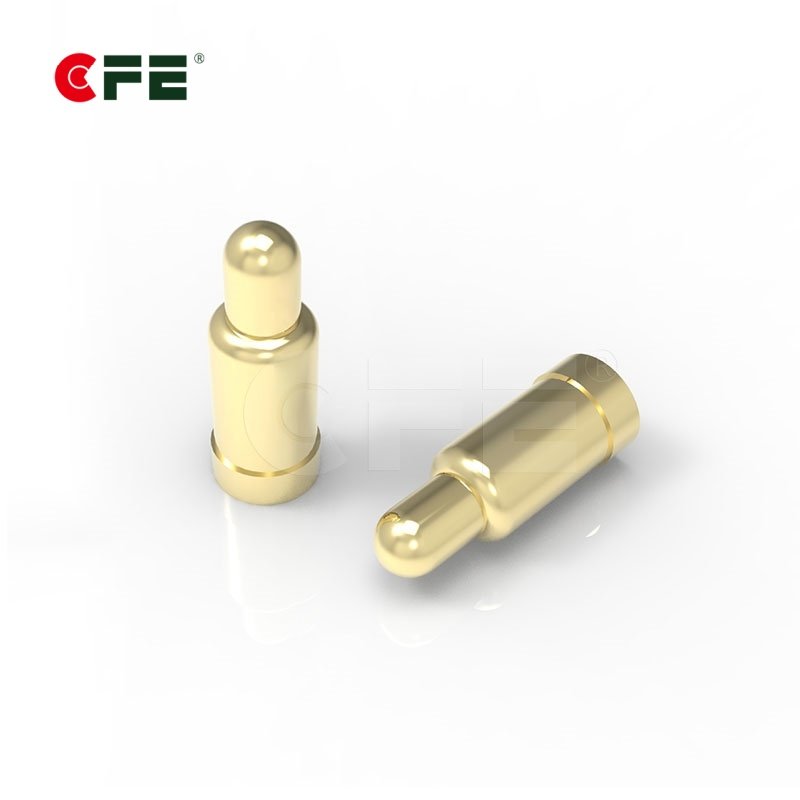

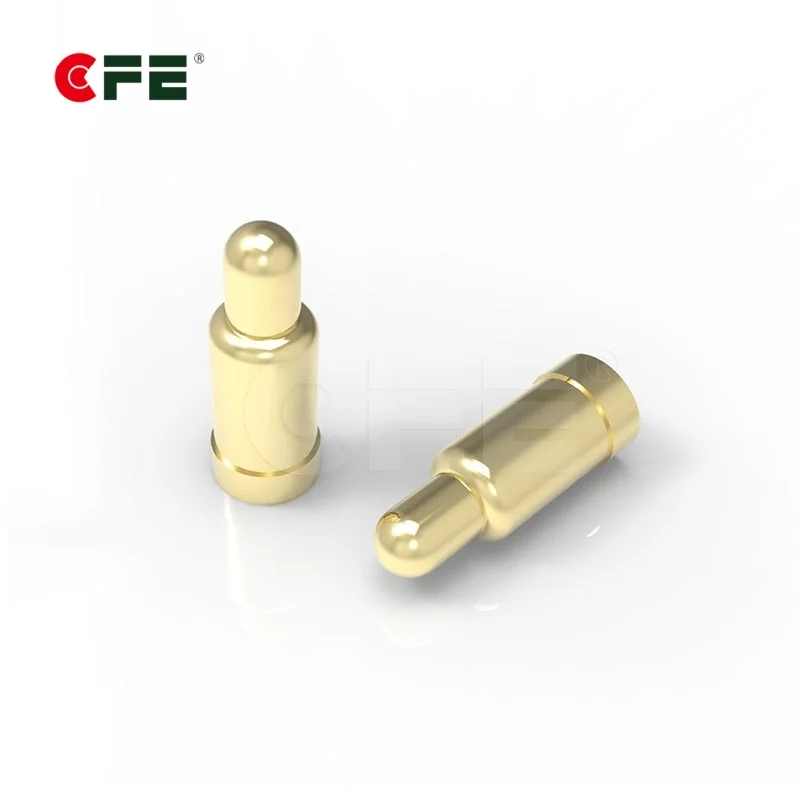

[BF99711] SMT spring loaded test pins for sale

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze
  • Plating: Gold plated (According to customer requirements)
  • Spring: SUS/SWP
  • Life test: 20,000~1000,000 cycles
  • Rated current & voltage: DC12V; 1A~5A,Contact resistance: 30 mOhm Max.
Inquiry Now

Description

SMT spring loaded test pins for sale. Pogo pin is very fine probe, it can make the finished connector light in weight, small in size and exquisite in look when it’s applied in a precision connector. SMT pogo pin, the bottom of barrel is designed as flat shape, easy to be mounted on PCB. This pogo pin life can reach 1000,000 cycles.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of SMT SMD spring loaded contact pins


 SMT spring loaded test pins for sale

Download PDF

Part No. BF99711
Materials Plunger Brass 0.5um Au over Ni
Barrel Brass 0.5um Au over Ni
Spring SUS (304) Au
Mechanical Contact force 85g ±20g at 0.6mm working height
Full stroke 1.40mm
Life test 20,000 cycles
Electrical Rated current and voltage 12V DC, 1A
Contact-resistance 50 milliohms max .The contact is more stable and the conductivity will be better

Application of SMT spring loaded test pins for sale

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
