[BP58711] Solder cup spring loaded contact manufacturer

Home/POGO PIN/Solder Cup Pogo Pin/[BP58711] Solder cup spring loaded contact manufacturer

[BP58711] Solder cup spring loaded contact manufacturer

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze

  • Plating: Gold plated (According to customer requirements)

  • Spring: SUS surface treatment

  • Life test: 20,000 cycles

  • Rated current & voltage: DC 12V;3A

Inquiry Now

Description

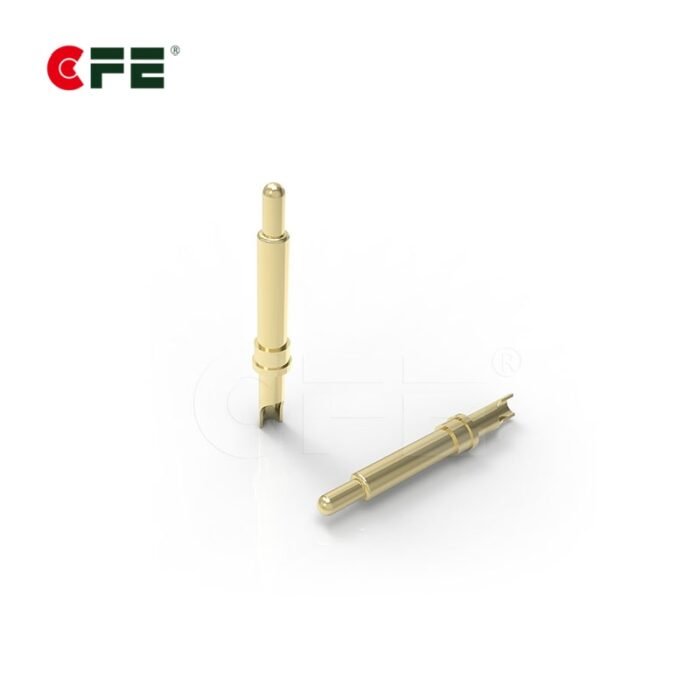

Solder cup spring loaded contact manufacturer. A Pogo pin is a device used in electronics to establish a connection between two printed circuit boards. Our main product is spring loaded contact and pogo pin connector. CFE Pogo Pin contacts provide a reliable electrical connection in the most rigorous environments. Not easy to corrode, oxidize, increase electric conductivity, reduce impedance. The contact is more stable, so the conductivity of the product will be better.

Specification of Solder cup spring loaded contact


Solder cup spring loaded contact manufacturer

PDF download

Part No. BP58711
Materials Plunger Brass 0.25um Au over Ni
Barrel Brass 0.25um Au over Ni
Spring SUS 304 Au
Mechanical  Contact force 40g±20g at 1.0mm working stroke
Full stroke 1.80mm
Life test 20,000 cycles
Electrical Rated current and voltage DC 12V;3A
Contact-resistance 50milliohm Max

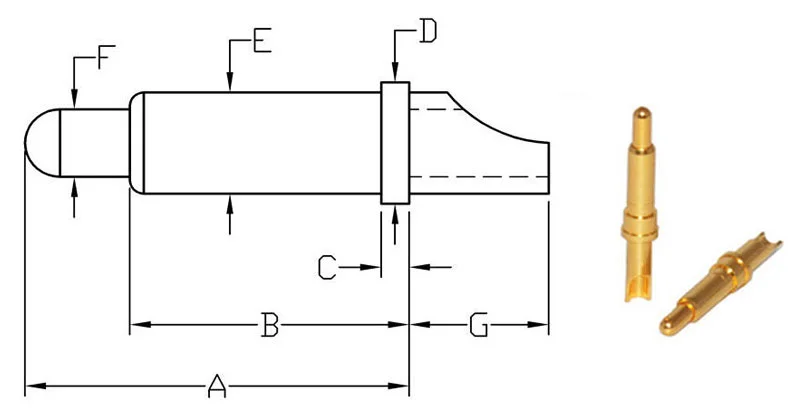

Drawing of Solder cup spring loaded contact

Solder cup spring loaded contact manufacturer

To ensure the best usage, please operate it based on the working height. Based on the engineering drawings, shall not exceed the maximum allowed compression.

Customized service

Solder cup spring probe pins for sale



The unit of  A, B, C, D, E, F, G is mm

Part NO. A B C D E F G Stroke(mm)Force(g)
Current(A)PDF
BS017117.105.30/1.301.200.800.800.7501
BS081117.806.20/1.801.200.702.50/1001
BS1451110.007.00//4.803.003.003.01501
BS1691110.508.501.503.502.702.002.001.01003
BS171017.806.400.651.981.481.00/1.0703
BS2320112.007.00/4.503.402.4011.004.05001
BS2370111.808.50/1.901.901.027.001.01003
BS3011111.907.602.001.901.901.024.401.21004

Learn more about How to order special pogo pin, If you have special requirements please contact us

Application of Solder cup spring loaded contact manufacturer

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread

Contact us

Dongguan CFE Electronic Co., Ltd. is a China leading precision spring-loaded connector manufacturing company. We focused on the development and manufacture of Pogo Pin & connector 9 years long.  As the leading electronic components manufacturer in China,  CFE has accomplished over 300 customized Pogo Pin chargers range from 2 pins to 30 pins. We also achieved the innovation of Pogo Pin product, which is the first invention in the Asian, the second invention around the world. What’s more, CFE also provides the short delivery times and competitive price for our clients. Learn more about us
