- Solder cup spring probe pins
- Plating: Gold,Silver,Palladium Nickel(customized)
- All pogo pin meet the requirements of RoHS and Halogen-free
- Life test:100,000 ~1,000,000 cycles
Description
Solder cup spring probe pins for sale.These pogo pins are plated with gold over nickel to ensure excellent electrical conductivity, durability and corrosion protection throughout the life of the product. Each CFE pogo pin digikey is typically made of 3 machined components and assembled with an internal spring to provide the range of movement required.
Advantages of our company
- World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
- World’s second manufacturer developed 1.27 pitch pogo pin connector
- Asia’s first manufacturer achieved compression mechanical 1 million life times
- Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
- China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

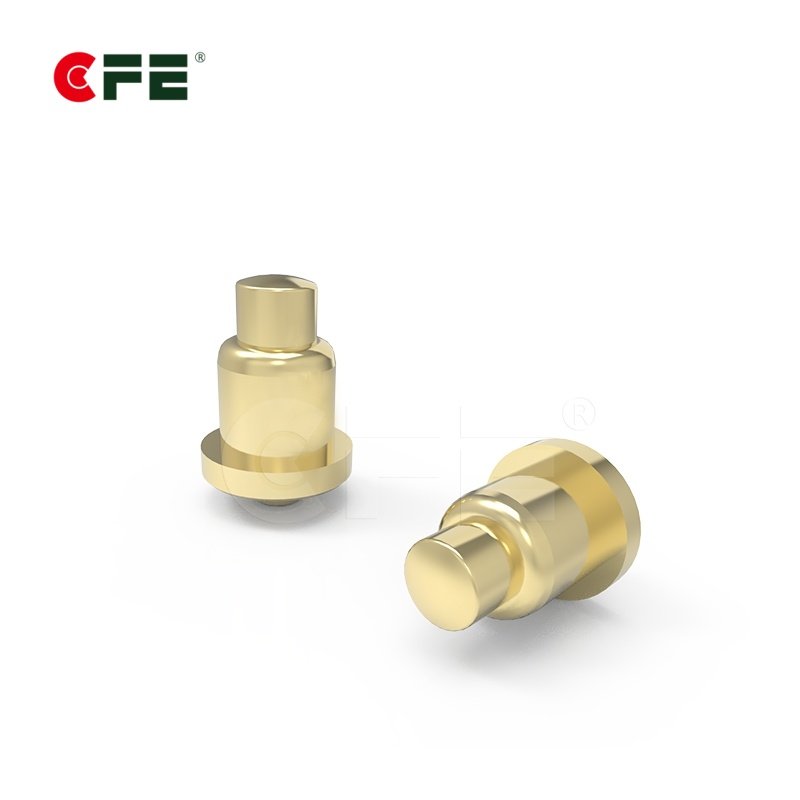

Details of Solder cup spring probe pins for sale
spring probe pins |
Part No. | BP30522 | |
| Materials | Plunger | Brass Au over Ni | |
| Barrel | Brass Au over Ni | ||
| Spring | SUS surface treatment | ||
| Mechanical | Life test | 20,000 cycles | |
| Electrical | Contact-resistance | 50 milliohms max .The contact is more stable and the conductivity will be better | |
Type of Solder cup spring probe pins for sale

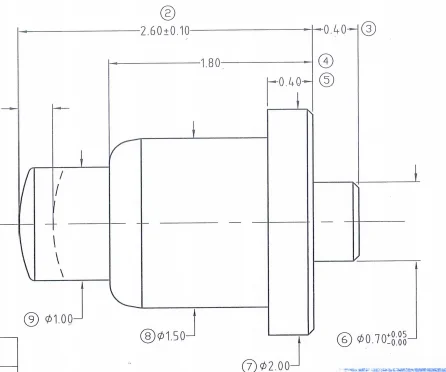

Learn more details, download our drawings
Application of Solder cup spring probe pins for sale
 |
 |
 |
||
Customized service
The unit of A, B, C, D, E, F, G and Stroke is mm
| Part NO. | A | B | C | D | E | F | G | Stroke(mm) | Force(g) | Current(A) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BS01711 | 7.10 | 5.30 | / | 1.30 | 1.20 | 0.80 | 0.80 | 0.7 | 50 | 1 |  |
| BS08111 | 7.80 | 6.20 | / | 1.80 | 1.20 | 0.70 | 2.50 | / | 100 | 1 | |
| BS14511 | 10.00 | 7.00 | / | / | 4.80 | 3.00 | 3.00 | 3.0 | 150 | 1 | |
| BS16911 | 10.50 | 8.50 | 1.50 | 3.50 | 2.70 | 2.00 | 2.00 | 1.0 | 100 | 3 | |
| BS17101 | 7.80 | 6.40 | 0.65 | 1.98 | 1.48 | 1.00 | / | 1.0 | 70 | 3 | |
| BS23201 | 12.00 | 7.00 | / | 4.50 | 3.40 | 2.40 | 11.00 | 4.0 | 500 | 1 | |
| BS23701 | 11.80 | 8.50 | / | 1.90 | 1.90 | 1.02 | 7.00 | 1.0 | 100 | 3 | |
| BS30111 | 11.90 | 7.60 | 2.00 | 1.90 | 1.90 | 1.02 | 4.40 | 1.2 | 100 | 4 | |
Learn more about How to order special pogo pin, If you have special requirements please contact us
Learn more type of Pogo pin
 |
 |
 |
 |
 |
 |
|||||
| SMT/SMD | DIP | Right angle | Double head | Solder cup | Screw thread |
