- Static Impedance: 30 milliohm Max
- Operating Temperature:-40 to +105°C
- Salt Spray: 48H
- Life test:20,000 cycles
- Rated current & voltage: DC 12V; 4A max
- Spring Force: 100g+20%

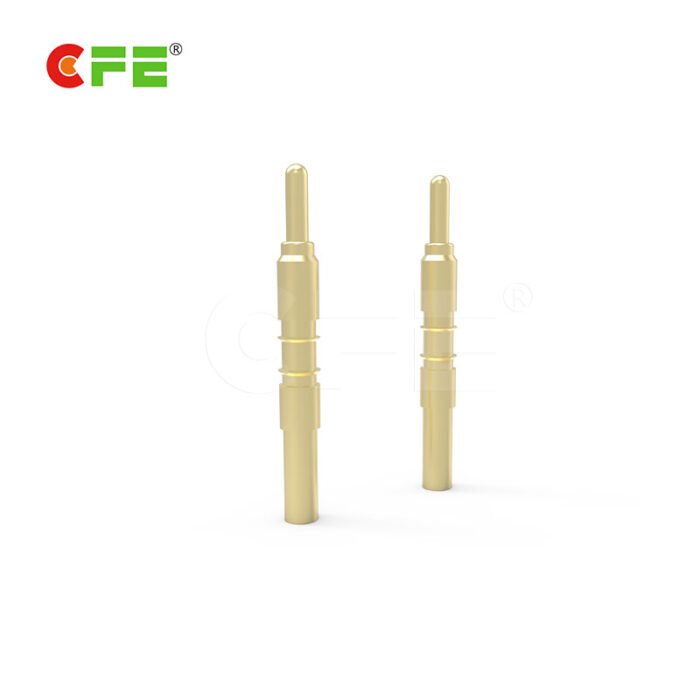

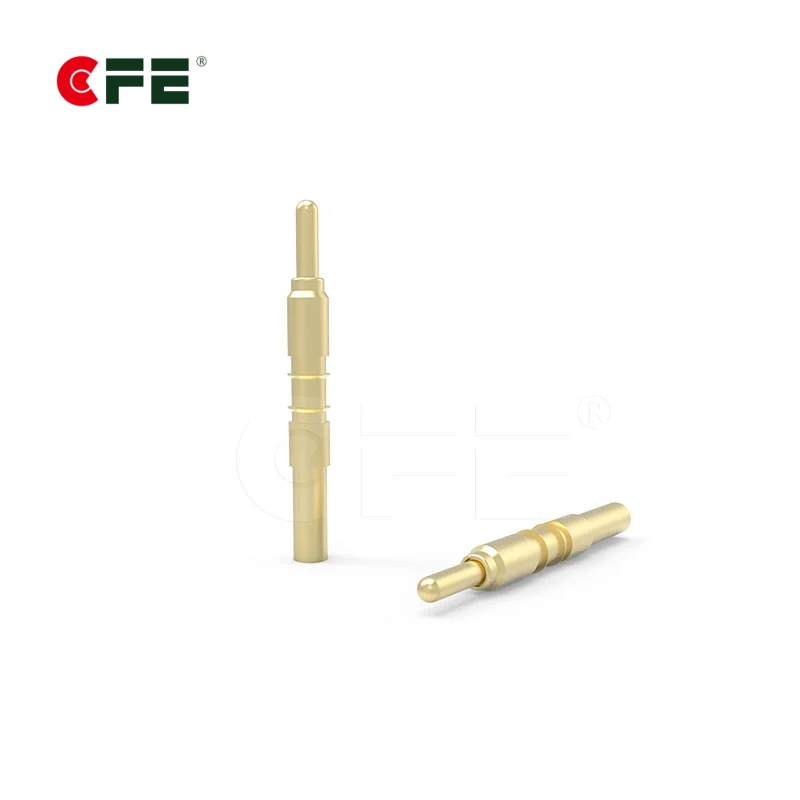

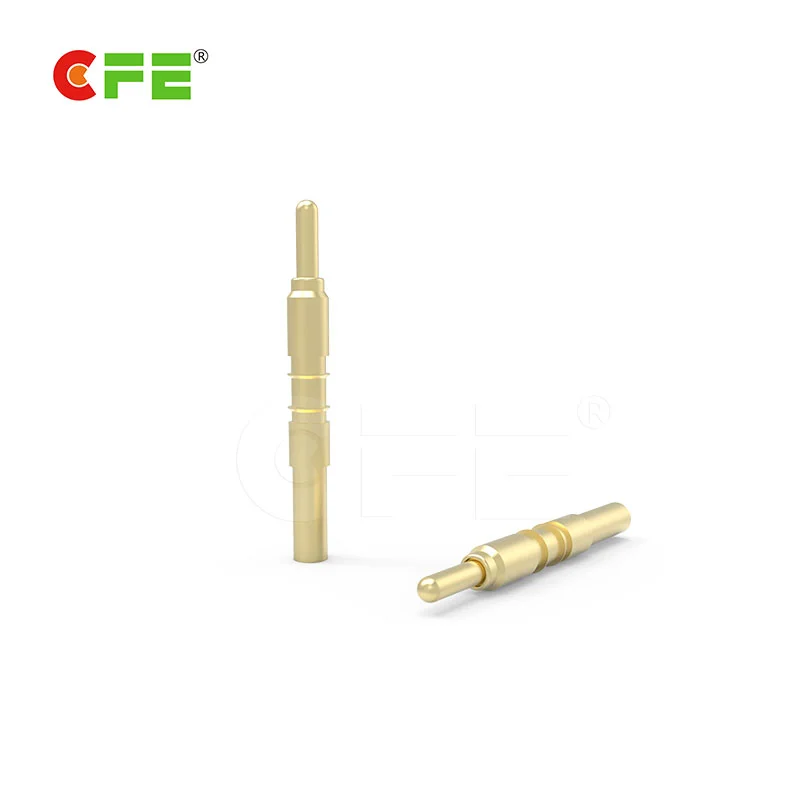

[BS30131-F] Solder cup type high current spring loaded pogo pins
Description
For vehicle-mounted equipment, the product space is small and the structure is compact, requiring new connection solutions to solve structural problems. CFE provides customized solder cup high current dpring loaded pogo pins for automotive electronics, which provide large current and signal transmission in a small size range, effectively replacing traditional connectors. Solder terminals are machined terminals used primarily for attaching wires to circuit boards. You may like Types of Pogo pin and their uses
 |
Part No. | BS30131-F | |
| Mechanical Performance | Spring Force | 100g±20% | |
| Full Stroke | 1.5mm | ||
| Life | 20,000 cycles | ||
| Electrical Performance | Rated Voltage | DC 12V | |
| Rated Current | 4A Max | ||
| Static Impedance | 30 milliohm Max | ||
| Environmental Performance | Operating Temperature | -40 to +105℃ | |
| Salt Spray | 48H | ||
Learn more about How to order special pogo pin, If you have special requirements please contact us You may like our customized pogo pin connector
Application of solder cup type pogo pin spring contact
 |
 |
 |
||
Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details
- Consumer electronics products/PCB board
- Digital camera/Medical products/ Printer cartridges
- Golf handle/ Electric vehicles/ Telephony applications
- Cardiac defibrillator/Car charging /Air purifier
- LED flat luminaries/LED flash light/Tablet/Laptop/PC
- Power bank/ Digital product/ Small household electrical application
- Charging products/Signal transmission products etc
Learn more type of Pogo pin
 |
 |
 |
 |
 |
 |
|||||
