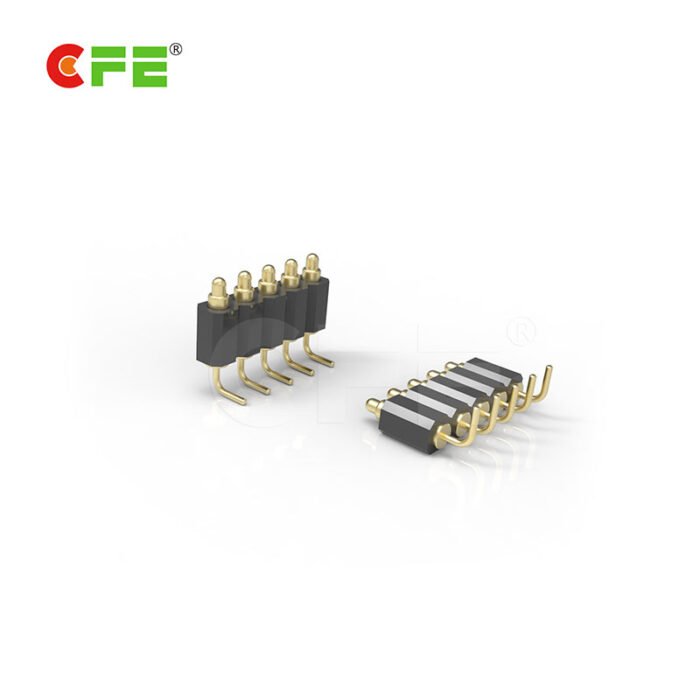

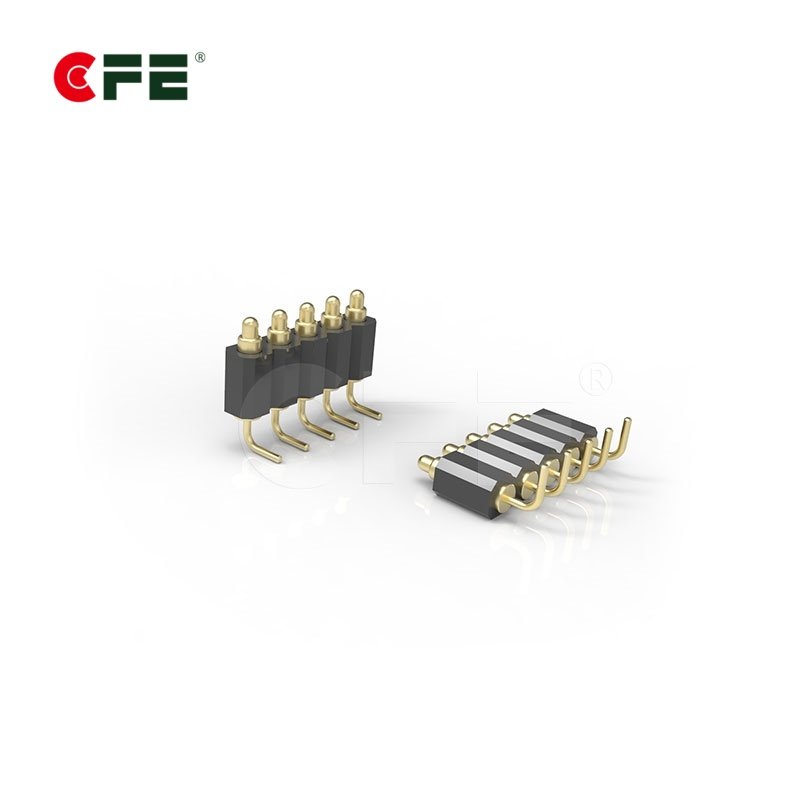

[MP325-1111-E05100A] Spring loaded pogo pin right angle pcb connector

  • Insulator:Black high temperature plastic  UL94 V-0
  • Contact force: 70g±20% at 1.0mm working storke
  • Full stroke:1.40mm,Rated current & voltage: DC 12V,5A max
  • Contact resistance:50 milliohm Max,Life test: 20,000 cycles


Spring loaded pogo pin right angle pcb connector.Gold-plated components and springs ensure the highest conductivity, corrosion resistance and durability. Right angle type pogo pin connectors offer space saving spring-loaded solutions for a variety of interconnect applications.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

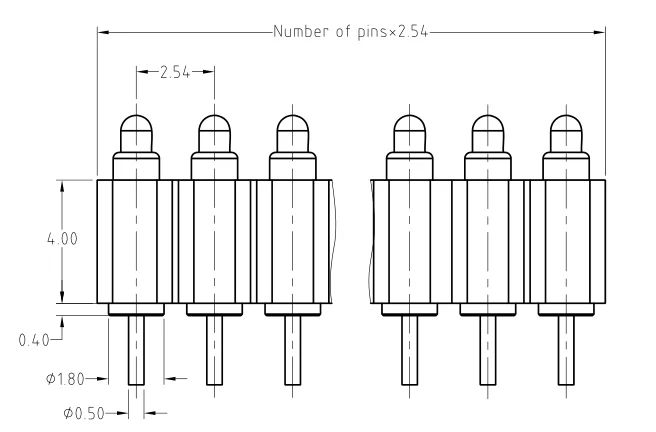

Details of Spring loaded pogo pin right angle pcb connector

 Sping loaded pogo pin right angle pcb connector

right angle pcb connector

Part No. MP325-1111-E05100A
Materials Insulator Black high temperature plastics UL94 V-0
Plunger Brass Au over Ni
Barrel Brass Au over Ni
Spring SUS
Mechanical Contact force 70g+20g at 1.0mm working stroke
Full stroke 1.40mm
Life test 20,000 cycles
Electrical Rated current and voltage DC 12V,5A max
Contact-resistance 50  milliohms max .The contact is more stable and the conductivity will be better
