- Barrel & plunger: Brass/Be-Cu/Phosphor bronze
- Plating: Gold plated (According to customer requirements)
- Spring: SUS surface treatment
- Life test: 20,000 cycles
- Rated current & voltage: DC 12V; 1A
[BP73711] Spring loaded contact probes pogo pin supplier
Description
Spring loaded contact probes pogo pin supplier. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge,keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses
Our main product is spring loaded contact and pogo pin connector. CFE Pogo Pin contacts provide a reliable electrical connection in the most rigorous environments. Not easy to corrode, oxidize, increase electric conductivity, reduce impedance. The contact is more stable, so the conductivity of the product will be better.
Pogo Pin Connector Application
Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details
- Consumer electronics products/PCB board
- Digital camera/Medical products/ Printer cartridges
- Golf handle/ Electric vehicles/ Telephony applications
- Cardiac defibrillator/Car charging /Air purifier
- LED flat luminaries/LED flash light/Tablet/Laptop/PC
- Power bank/ Digital product/ Small household electrical application
- Charging products/Signal transmission products etc
Specification of Spring loaded contact probes pogo pin supplier
|
Part No. | BP73711 | |
| Materials | Plunger | Brass 0.025um Au over Ni | |
| Barrel | Brass 0.025um Au over Ni | ||
| Spring | SUS 304 surface treatment | ||
| Mechanical | Contact force | 80g±20g at 3.0mm working stroke | |
| Full stroke | 3.20mm | ||
| Life test | 20,000 cycles | ||
| Electrical | Rated current and voltage | DC 12V; 1A | |
| Contact-resistance | 50milliohm Max | ||

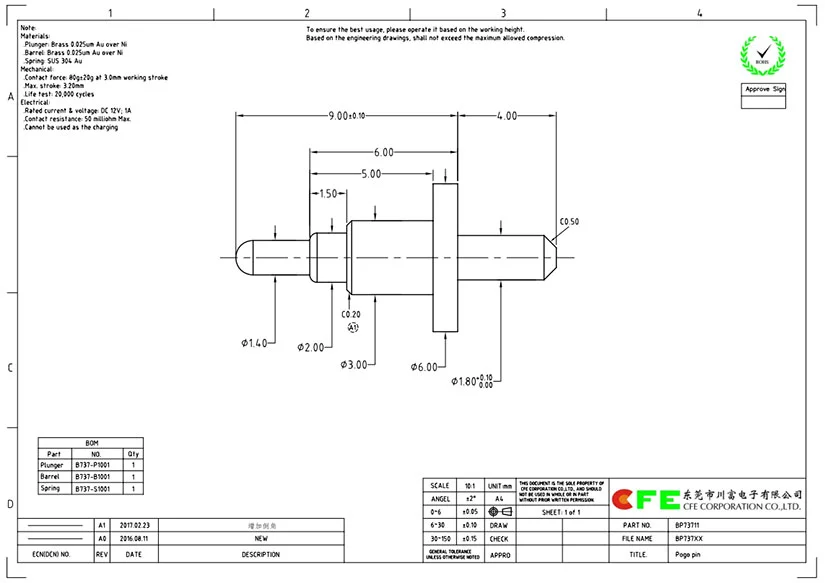

Drawing of Spring loaded contact probes pogo pin supplier
To ensure the best usage, please operate it based on the working height. Based on the engineering drawings, shall not exceed the maximum allowed compression.
Customized service
The unit of A, B, C, D, E, F, G, H and Stroke is mm
| Part NO. | A | B | C | D | E | F | G | H | Stroke | Force(g) | Current(A) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BP00312 | 6.80 | 4.80 | 0.80 | 4.50 | 3.00 | 2.00 | 6.20 | 0.70 | 1.5 | 200 | 2 |  |
| BP00411 | 9.15 | 6.00 | 0.50 | 2.00 | 1.46 | 1.00 | 1.30 | 0.50 | / | 110 | 2 | |
| BP00911 | 5.86 | 4.46 | 1.13 | 1.15 | 1.00 | 0.64 | 1.82 | 0.68 | 1.0 | 34 | 1 | |
| BP01111 | 42.40 | 34.80 | 7.60 | 3.50 | 6.00 | 3.50 | / | / | 5.5 | 200 | / | |
| BP01512 | 7.10 | 2.50 | 0.70 | 4.00 | 2.95 | 1.20 | 3.50 | 2.00 | / | / | / | |
| BP01513 | 7.10 | 3.20 | 0.80 | 3.80 | 3.75 | 2.00 | 3.50 | 2.80 | / | 200 | 1 | |
| BP01611 | 9.10 | 5.70 | / | / | 2.80 | 1.80 | / | 2.00 | 3.5 | 10~20 | 1 | |
| BP02311 | / | 2.70 | 0.40 | 1.83 | 1.50 | 1.07 | / | / | 0.7 | 60 | 1 | |
| BP02401 | 3.70 | 2.10 | 0.90 | 3.90 | 2.50 | 2.00 | 1.10 | 2.50 | 1.0 | 50 | 1 | |
| BP02402 | 3.70 | 2.10 | 0.90 | 3.90 | 2.50 | 2.00 | 1.10 | 2.50 | 1.0 | 90 | 1 | |
| BP02411 | 3.70 | 2.10 | 0.90 | 3.90 | 2.50 | 2.00 | 1.10 | 2.50 | 1.0 | 200 | 1 | |
| BP02511 | 6.05 | 4.05 | 0.50 | 2.50 | 1.60 | 0.90 | 2.30 | 1.50 | 1.4 | 110 | 3 | |
| BP02611-0525001R | 6.40 | 5.00 | / | / | 1.50 | 1.07 | 1.75 | 0.42 | 1.4 | 60 | 0.05 | |
| BP02711 | 7.35 | 5.55 | 2.85 | 1.50 | 1.30 | 0.85 | 1.50 | 0.70 | 0.8 | 80 | 1 | |
| BP02912 | 13.21 | 9.65 | / | / | 2.67 | 2.11 | 2.29 | 0.64 | 1.19 | 120 | 2 | |
| BP02921 | 14.50 | 9.65 | / | / | 2.67 | 2.11 | 2.30 | 0.64 | 2.5 | 120 | 2 | |
| BP03211 | 2.40 | 1.50 | / | / | 1.48 | 1.00 | / | 0.78 | 0.2 | 50 | 1 | |
| BP03311 | 3.50 | 2.50 | 0.50 | 2.00 | 1.46 | 0.90 | 5.00 | 0.90 | 1.0 | 10 | 1 | |
| BP03312 | 3.50 | 2.50 | 0.50 | 2.00 | 1.46 | 0.90 | 6.00 | 0.90 | 1.0 | 100 | 1 | |
| BP03412 | 4.45 | 2.50 | 0.50 | 2.80 | 2.20 | 1.50 | 2.00 | 1.50 | 1.3 | 190 | 2 | |
| BP03413 | 4.45 | 2.50 | 0.50 | 2.80 | 2.20 | 1.50 | 2.00 | 1.50 | 1.3 | 190 | 2 | |
| BP03433 | 4.90 | 2.50 | 0.50 | 2.80 | 2.20 | 1.50 | 2.00 | 1.50 | 1.3 | 190 | 2 | |
| BP03711 | 8.60 | 5.60 | 0.50 | 2.00 | 1.46 | 1.00 | 1.30 | 0.50 | / | 120 | 1 | |
| BP03805 | 6.65 | 4.80 | / | / | 0.75 | 0.42 | / | 0.40 | 0.7 | 35 | 15M | |
| BP03806 | 6.65 | 4.80 | / | / | 0.75 | 0.42 | / | 0.40 | 0.7 | 35 | 15M | |
| BP04011-0100001A | 3.50 | 2.00 | 0.40 | 1.80 | 1.50 | 1.00 | / | / | 1.0 | 80 | 1 | |
| BP04011 | 3.50 | 2.00 | 0.40 | 1.80 | 1.50 | 1.00 | 0.60 | 0.50 | 1.0 | 35 | 31811 | |
| BP04112 | 7.40 | 5.30 | / | / | 1.30 | 0.90 | / | / | 1.2 | 78 | 1 | |
| BP04211-0100001R | 3.70 | 2.40 | 0.40 | 1.80 | 1.48 | 1.00 | / | 0.70 | 0.6 | 50 | 1 | |
| BP04211 | 3.70 | 2.40 | 0.40 | 1.80 | 1.48 | 1.00 | / | 0.70 | 0.6 | 50 | 1 | |
| BP04632 | 3.55 | 2.65 | 0.60 | 1.90 | 1.50 | 0.90 | / | 1.00 | 0.6 | 90 | 1 | |
| BP06011 | 14.60 | 12.00 | / | 1.80 | 1.58 | 1.10 | 2.60 | 0.60 | 1.5 | 100 | 3 | |
| BP06022 | 14.60 | 12.00 | / | 1.80 | 1.58 | 1.10 | 2.60 | 0.60 | 1.5 | 100 | 3 | |
| BP06023 | 14.90 | 12.00 | / | 1.80 | 1.58 | 1.10 | 2.60 | 0.60 | 1.5 | 70 | 3 | |
| BP06411 | 8.00 | 6.20 | / | 1.80 | 1.50 | 1.10 | 1.50 | 0.60 | 1.0 | 120 | 1 | |
| BP06511 | 16.00 | 14.00 | 0.40 | 1.80 | 1.50 | 1.10 | 1.50 | 0.60 | 1.5 | 130 | 1 | |
| BP07111 | 5.80 | 4.00 | / | / | 1.50 | 0.90 | 3.00 | 0.60 | / | 120 | 1 | |
| BP07212 | 4.60 | 3.80 | / | / | 0.90 | 0.45 | 2.00 | 0.56 | 0.6 | 60 | 1 | |
| BP07213 | 6.30 | 5.00 | / | / | 0.90 | 0.50 | 0.50 | 0.50 | 0.6 | 60 | 1 | |
| BP07611 | 7.50 | 5.60 | 1.10 | 1.54 | 1.25 | 0.85 | 1.50 | 0.70 | 1.5 | 120 | 1 | |
| BP07811 | 9.00 | 6.75 | 1.00 | 5.00 | 3.50 | 2.50 | 1.50 | 2.00 | 1.5 | 120 | 1 | |
| BP07911 | 7.00 | 3.00 | 1.00 | 0.40 | 0.20 | 1.50 | 12.00 | 2.00 | 2.0 | 100 | 3 | |
| BP08011 | 17.10 | 11.00 | / | / | 3.00 | 2.50 | 1.60 | 1.00 | 1.0 | 220 | 2.5 | |
| BP08611 | 9.80 | 7.30 | 2.50 | 2.50 | 1.80 | 1.30 | 2.50 | 1.02 | / | 85 | 4.5 | |
| BP08751 | 3.60 | 2.40 | 0.30 | 2.10 | 1.50 | 0.90 | 1.40 | 0.80 | 0.60 | 40 | 4 | |
| BP08716 | 3.10 | 2.40 | 0.30 | 2.10 | 1.50 | 0.90 | 1.40 | 0.80 | 0.60 | 40 | 4 | |
| BP08723 | 3.90 | 2.70 | 0.30 | 2.10 | 1.50 | 0.90 | 1.10 | 0.80 | 0.6 | 40 | 4 | |
| BP08724 | 3.40 | 2.70 | 0.30 | 2.10 | 1.50 | 0.90 | 0.80 | 1.10 | 0.6 | 40 | 4 | |
| BP08911 | 10.20 | 2.40 | 0.50 | 1.80 | 1.50 | 1.00 | 1.10 | 1.00 | / | 110 | 1 | |
| BP09011 | 5.50 | 3.00 | / | 4.00 | 2.00 | 1.20 | / | 2.00 | 2.0 | 120 | 1 | |
| BP09211 | 6.00 | 4.60 | / | / | 1.80 | 1.00 | 1.00 | 0.70 | 1.0 | 100 | 1 | |
| BP09411 | 10.20 | 7.00 | 3.70 | 2.90 | 2.50 | 1.80 | / | 1.00 | 3.0 | 120 | 1 | |
| BP09412 | 10.20 | 7.00 | 3.70 | 2.90 | 2.50 | 1.80 | / | 1.00 | 3.0 | 120 | 1 | |
| BP09911 | 5.50 | 4.50 | / | / | 2.00 | 1.00 | 2.00 | 0.80 | 0.5 | 100 | 1 | |
| BP10211 | 4.30 | 3.25 | 0.30 | 2.30 | 1.48 | 1.00 | 1.00 | 1.00 | 0.7 | 100 | 1 | |
| BP10311 | 4.20 | 2.80 | 0.50 | 1.40 | 1.30 | 0.80 | 0.80 | 0.80 | 0.6 | 140 | 1 | |
| BP10611 | 4.30 | 3.70 | 0.40 | 2.85 | 2.80 | / | 1.00 | 0.80 | 0.6 | 50 | 1 | |
| BP10622 | 6.65 | 5.80 | / | / | 3.20 | / | 1.00 | 0.80 | 0.8 | 50 | 1 | |
| BP10811 | 7.10 | 5.10 | 0.50 | 1.80 | 1.48 | 1.00 | / | / | / | 120 | 1 | |
| BP11111 | 7.50 | 5.85 | 0.50 | 2.00 | 1.70 | 1.00 | 1.50 | 1.00 | 1.0 | 80 | 3 | |
| BP11211 | 6.25 | 4.60 | 0.40 | 1.50 | 1.20 | 0.70 | / | 0.80 | 1.0 | 60 | 2 | |
| BP11311-07254A0A | 9.00 | 6.00 | / | / | 1.50 | 1.00 | / | 0.60 | 1.0 | 90 | 1 | |
| BP11511 | 5.10 | 3.60 | 0.50 | 1.80 | 1.50 | 1.00 | 0.60 | 0.70 | 1.5 | 90 | 1 | |
| BP11513 | 5.40 | 3.60 | 0.50 | 1.80 | 1.50 | 1.00 | 0.60 | 0.70 | 1.5 | 70 | 1 | |
| BP11811-08127H0A | 5.50 | 4.60 | / | / | / | 0.48 | 0.90 | / | 0.7 | 50 | 2 | |
| BP11511 | 6.10 | 4.70 | / | 1.05 | 0.90 | 0.48 | / | 0.76 | 0.7 | 50 | 2 | |
| BP118GG | 6.10 | 4.70 | / | 1.05 | 0.90 | 0.48 | / | 0.76 | 0.7 | 50 | 1 | |
| BP11811 | 15.50 | 9.00 | 1.00 | 3.00 | 1.60 | 0.90 | 2.50 | 1.00 | 0.7 | 100 | 1 | |
| BP12511 | 9.20 | 5.25 | / | / | 6.00 | 4.30 | 2.50 | 1.00 | 2.0 | 500 | 3 | |
| BP12611 | 4.35 | 3.45 | 0.50 | 1.90 | 1.48 | 0.90 | 1.80 | 1.12 | 0.7 | 100 | 2 | |
| BP12911-04254H0A | 13.35 | 10.85 | / | / | 1.50 | 0.90 | 2.00 | 0.80 | 0.8 | 40 | 2 | |
| BP13501 | 6.90 | 4.40 | / | / | 2.00 | 1.20 | 3.00 | 1.00 | 1.4 | 100 | 1 | |
| BP13502 | 14.00 | 9.50 | / | / | 2.40 | 1.50 | 3.00 | 1.00 | 2.1 | 100 | 3 | |
| BP13504 | 13.00 | 9.50 | / | / | 2.00 | 1.20 | 3.00 | 1.00 | 2.9 | 100 | 2.5 | |
| BP13506 | 13.00 | 9.50 | / | / | 2.40 | 1.50 | 3.00 | 1.00 | 1.0 | 100 | 3 | |
| BP13801 | 7.70 | 6.00 | / | / | 1.80 | 1.20 | 2.00 | 1.00 | 1.0 | 60 | 2 | |
| BP13803 | 8.90 | 7.20 | / | / | 1.80 | 1.20 | 2.00 | 1.00 | 1.0 | 60 | 2 | |
| BP13901 | 6.10 | 4.60 | / | / | 1.45 | 1.00 | 0.80 | 0.70 | 1.0 | 40 | 2 | |
| BP13902 | 14.00 | 12.50 | / | / | 1.45 | 1.00 | 0.80 | 0.80 | 1.0 | 40 | 2 | |
| BP14711 | 12.30 | 9.00 | 1.50 | 2.10 | 1.80 | 1.00 | 3.90 | 1.20 | 0.7 | 90 | 3 | |
| BP14811 | 5.30 | 3.90 | 0.70 | 2.30 | 2.05 | 1.20 | 2.70 | 0.60 | 0.6 | 44 | 2 | |
| BP14901 | 7.00 | 4.50 | / | / | 2.90 | 2.30 | 1.50 | 1.50 | 1.5 | 180 | / | |
| BP15111 | 5.90 | 4.40 | 2.20 | 5.00 | 4.00 | 2.50 | 3.80 | 2.60 | 1.0 | 120 | 1 | |
| BP15511 | 10.90 | 8.70 | / | 1.80 | 1.51 | 1.00 | 2.50 | 0.60 | 1.4 | 110 | 1 | |
| BP16501 | 11.00 | 8.00 | / | / | 3.00 | 2.20 | 5.00 | 2.20 | 1.0 | 80 | 1 | |
| BP16211-07254H0A | 10.90 | 8.30 | / | 2.54 | 1.50 | 1.00 | 1.75 | / | 1.0 | 70 | 3 | |
| BP16311 | 5.90 | 4.55 | / | / | 0.75 | 0.45 | 1.10 | 0.60 | 0.7 | 35 | 0.5 | |
| BP16811 | 10.00 | 7.90 | 0.40 | 1.80 | 1.40 | 1.00 | 1.00 | 0.80 | 1.0 | 80 | 3 | |
| BP17011 | 9.00 | 5.80 | / | / | 4.00 | 3.30 | 1.50 | 1.50 | 1.5 | 220 | / | |
| BP17022 | 11.50 | 7.00 | / | / | 4.00 | 3.30 | 1.50 | 1.50 | 1.5 | 220 | / | |
| BP17311 | 15.05 | 11.05 | / | / | 6.00 | 4.30 | 5.00 | 1.00 | 2.55 | 500 | 2 | |
| BP17511 | 9.50 | 7.90 | / | / | 2.00 | 1.20 | 1.00 | 1.4 | 160 | 1 | |
|
| BP17611 | 16.20 | 13.30 | / | / | 4.00 | 3.00 | 3.30 | 3.30 | 1.3 | 100 | 1 | |
| BP17701 | 8.80 | 6.30 | 0.40 | 1.60 | 1.35 | 0.90 | 1.75 | 0.60 | 2.0 | 110 | 1.5 | |
| BP17811 | 4.70 | 4.00 | / | / | 0.85 | 0.45 | 4.80 | 0.70 | 0.6 | 70 | 1 | |
| BP17911 | 5.60 | 4.90 | 0.50 | 1.35 | 1.08 | 0.60 | / | / | 0.4 | 20 | 1 | |
| BP18001 | 4.90 | 4.20 | / | / | 2.80 | / | 1.00 | 0.80 | 0.7 | 50 | 1 | |
| BP18002 | 4.90 | 4.20 | / | / | 2.80 | / | 1.00 | 0.80 | 0.7 | 80 | 1 | |
| BP18311 | 2.10 | 1.45 | 0.55 | 1.30 | 1.10 | 0.70 | / | / | 1.7 | 60 | 1 | |
| BP18401 | 29.00 | 23.00 | 0.50 | 3.50 | 3.00 | 2.00 | / | / | 2.0 | 100 | 2 | |
| BP18402 | 9.50 | 6.50 | 0.50 | 3.00 | 2.50 | 1.50 | 2.50 | 1.50 | 2.0 | 65 | 2 | |
| BP18511 | 6.60 | 4.60 | / | 2.00 | 1.50 | 0.90 | 1.50 | 1.20 | 1.0 | 80 | 2 | |
| BP18811 | 9.00 | 4.60 | / | / | 3.20 | 2.00 | 4.00 | 1.90 | 1.5 | 100 | 2 | |
| BP19011 | 11.80 | 9.00 | / | / | 2.00 | 1.20 | 3.00 | 1.50 | 2.8 | 150 | 1 | |
| BP19022 | 11.80 | 9.00 | / | / | 2.00 | 1.20 | 3.00 | 1.50 | 2.8 | 150 | 1 | |
| BP19501 | 9.50 | 8.00 | / | / | 3.60 | 3.20 | 1.00 | 1.00 | 1.5 | 150 | 3 | |
| BP19601 | 8.10 | 3.60 | / | / | 3.20 | 2.40 | / | / | 2.0 | 150 | 3 | |
| BP20201 | 3.70 | 3.10 | 0.40 | 1.80 | 1.50 | 1.00 | 1.00 | 0.50 | 0.6 | 40 | 1 | |
| BP21401 | 6.00 | 3.80 | / | 3.50 | 3.00 | 2.00 | 1.60 | 1.50 | 1.5 | 110 | 1 | |
| BP22201-033001H0A | 16.00 | 12.50 | 2.30 | 2.00 | 1.48 | 1.00 | 1.50 | 1.10 | 1.0 | 70 | 2 | |
| BP22301 | 16.00 | 9.50 | 1.00 | 9.00 | 5.00 | 4.00 | 3.00 | 2.00 | 4.0 | 50 | 1 | |
| BP22802 | 6.20 | 5.40 | / | / | 2.20 | 1.50 | 0.50 | 1.50 | 0.6 | 50 | 1 | |
| BP23011 | 6.00 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 1.0 | 40 | 1 | |
| BP23511 | 7.75 | 6.30 | / | 2.10 | 1.80 | 1.20 | 1.20 | 1.00 | 1.0 | 120 | 3 | |
| BP24111 | 5.50 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 0.75 | 0.50 | 1.0 | 70 | 3 | |
| BP24211 | 13.00 | 9.50 | / | / | 2.80 | 2.00 | 3.00 | 1.00 | 2.5 | 150 | 2 | |
| BP24611 | 22.75 | 13.75 | 0.75 | 10.00 | 8.00 | 6.00 | 1.25 | 2.00 | 6.0 | 500 | 1 | |
| BP25212 | 5.60 | 4.00 | 0.90 | 1.20 | 1.18 | 0.70 | 1.30 | 0.50 | 0.9 | 110 | 1 | |
| BP25921 | 6.50 | 4.50 | / | / | 2.50 | 1.50 | 2.00 | 1.50 | 1.0 | 150 | 1 | |
| BP26005 | 4.95 | 3.55 | / | / | 0.75 | 0.42 | 1.00 | 0.40 | 0.8 | 35 | 15M | |
| BP26011 | 5.15 | 3.75 | / | / | 1.30 | 0.90 | 1.00 | 0.80 | 1.0 | 60 | 3 | |
| BP26021 | 4.90 | 3.75 | / | / | 1.30 | 0.90 | 1.00 | 0.80 | 1.0 | 60 | 3 | |
| BP26211-06254B0A | 8.90 | 5.30 | / | / | / | 1.00 | / | 1.75 | 1.0 | 70 | 3 | |
| BP26311 | 20.00 | 18.30 | 0.40 | 1.80 | 1.50 | 1.00 | 2.75 | 1.00 | 1.0 | 40 | 1 | |
| BP26511 | 6.00 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.80 | 1.0 | 70 | 3 | |
| BP26611 | 9.20 | 6.90 | 0.55 | 1.80 | 1.48 | 0.80 | 4.40 | 0.65 | 1.0 | 70 | 1 | |
| BP26711-02254A0A | 4.90 | 3.50 | / | / | / | 1.00 | 1.10 | / | 1.0 | 70 | 2 | |
| BP26711-13254A0A | 4.90 | 3.50 | / | / | / | 1.00 | 14.10 | / | 1.0 | 70 | 2 | |
| BP26721-12254A0A | 5.50 | 3.50 | / | / | / | 1.00 | 1.10 | / | 1.0 | 70 | 2 | |
| BP26721 | 5.40 | 3.50 | 1.00 | 2.00 | 1.48 | 1.00 | / | 1.48 | 1.0 | 70 | 2 | |
| BP26811 | 16.50 | 10.00 | / | / | 2.40 | 1.50 | 2.50 | 1.00 | 4.0 | 100 | 2.5 | |
| BP27011 | 5.70 | 4.50 | 0.40 | 1.50 | 1.18 | 0.70 | 0.80 | 0.50 | 0.6 | 40 | 1 | |
| BP27211 | 13.20 | 10.00 | / | / | 2.80 | 2.00 | 2.60 | 1.20 | 1.7 | 96 | 2 | |
| BP27711 | 5.90 | 4.20 | / | / | 1.20 | 0.76 | 2.00 | 0.60 | 1.2 | 55 | 1 | |
| BP28511 | 4.00 | 3.00 | 0.50 | 1.30 | 1.00 | 0.60 | 2.00 | 0.60 | 1.0 | 50 | 1 | |
| BP28711-06254E0A | 6.00 | 4.40 | / | / | / | 1.00 | 1.75 | / | 1.0 | 70 | 2 | |
| BP29111 | 5.80 | 4.30 | / | 1.40 | 1.26 | 0.80 | 1.20 | 0.50 | 0.9 | 80 | 1 | |
| BP29311-04254100A | 7.00 | 5.30 | / | / | / | 1.00 | 1.75 | / | 1.0 | 15 | 0.2 | |
| BP29511 | 8.03 | 6.00 | 3.60 | 4.00 | 3.00 | 2.00 | 3.20 | 1.02 | 1.0 | 100 | 1 | |
| BP31011 | 7.25 | 5.50 | / | / | 2.00 | 1.30 | 1.50 | 1.00 | 1.0 | 65 | 1 | |
| BP31111-04254E0A | 9.00 | 7.30 | / | / | / | 1.00 | 1.75 | / | 1.0 | 70 | 3 | |
| BP31221-02508A0A | 5.00 | 3.30 | / | / | / | 1.00 | 1.75 | / | 0.6 | 70 | 1 | |
| BP31311-04508A0A | 5.50 | 4.30 | / | / | / | 1.00 | 1.75 | / | 1.0 | 70 | 3 | |
| BP32611 | 10.00 | 7.00 | / | / | 2.40 | 1.30 | / | / | 1.2 | 120 | 3 | |
| BP32711-08254H0A | 10.00 | 7.30 | / | / | / | 1.00 | 1.75 | / | 1.0 | 70 | 1 | |
| BP33022 | 2.70 | 1.70 | / | 1.80 | 1.48 | 1.00 | / | 1.48 | 0.8 | 60 | 0.1 | |
| BP33111 | 3.90 | 1.90 | / | / | 0.96 | 0.60 | 1.00 | 1.70 | 0.4 | 35 | 1 | |
| BP33511-03254H0A | 7.00 | 5.20 | 1.10 | / | / | 1.00 | 2.90 | / | 2.3 | 70 | 1 | |
| BP33511 | 7.70 | 5.20 | 0.40 | 1.80 | 1.48 | 1.00 | 2.90 | 0.65 | 2.3 | 70 | 1 | |
| BP33611-06254H0A | 6.00 | 4.30 | / | / | / | 1.00 | 1.75 | / | 1.0 | 70 | 1 | |
| BP33701 | 2.50 | 1.80 | / | 2.00 | 1.50 | 0.90 | 0.80 | 1.00 | 0.6 | 80 | 1 | |
| BP33711 | 6.00 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 0.75 | 0.50 | 1.0 | 40 | 1 | |
| BP33721 | 2.50 | 1.80 | / | 2.00 | 1.50 | 0.90 | 0.80 | 1.00 | 0.6 | 80 | 1 | |
| BP33731 | 3.00 | 2.00 | 0.30 | 2.00 | 1.50 | 0.90 | 1.00 | 1.00 | 0.7 | 80 | 1 | |
| BP33811 | 9.00 | 7.30 | 0.40 | 1.80 | 1.40 | 1.00 | 1.75 | 0.50 | 1.0 | 40 | 1 | |
| BP34601 | 3.20 | 2.10 | 0.40 | 1.80 | 1.40 | 1.00 | 1.50 | 1.50 | 1.0 | 60 | 1 | |
| BP35111 | 9.85 | 7.00 | / | 5.40 | 4.10 | 2.60 | 2.20 | 2.10 | 2.3 | 100 | 3 | |
| BP35211 | 5.10 | 2.90 | 0.80 | 2.10 | 1.60 | 1.00 | / | 1.60 | 1.5 | 60 | 2 | |
| BP35511-02350H0A | 5.50 | 4.30 | / | / | 1.48 | 1.00 | / | / | 1.4 | 70 | 2 | |
| BP35711 | 5.80 | 3.30 | / | / | 3.70 | 3.00 | 2.00 | 2.00 | 1.0 | 100 | 1 | |
| BP35811 | 3.30 | 2.05 | 0.25 | 1.76 | 1.48 | 1.00 | / | 1.15 | / | / | / | |
| BP35911 | 4.90 | 3.90 | 0.40 | 1.80 | 1.50 | 1.00 | 1.75 | / | 1.0 | 70 | 1 | |
| BP36111 | 18.05 | 10.20 | / | / | 4.45 | 3.00 | 2.95 | 2.00 | 3.0 | 180 | 0.5 | |
| BP36121 | 21.95 | 14.50 | / | / | 4.45 | 3.00 | 2.95 | 2.50 | 3.0 | 180 | 0.5 | |
| BP36321 | 3.80 | 2.80 | / | / | 1.50 | 1.00 | 0.75 | 1.10 | 0.6 | 40 | 1 | |
| BP36722 | 7.50 | 5.05 | 0.40 | 1.80 | 1.50 | 1.00 | 1.30 | 0.60 | 0.7 | 60 | 2 | |
| BP37011 | 6.45 | 5.65 | 0.50 | 1.60 | 1.15 | 0.70 | / | 1.00 | 0.6 | 70 | 1 | |
| BP37711 | 6.25 | 3.55 | 0.50 | 2.00 | 1.46 | 1.00 | 1.30 | 0.50 | 1.7 | 80 | 0.5 | |
| BP37811 | 8.00 | 5.50 | / | / | 3.00 | 2.10 | 2.50 | 1.16 | 1.0 | 70 | 1 | |
| BP38011 | 6.55 | 5.65 | 0.50 | 1.60 | 1.15 | 0.70 | 2.00 | 1.00 | 0.6 | 70 | 1 | |
| BP38621 | 4.50 | 3.50 | 0.50 | 1.50 | 1.18 | 0.70 | / | / | 0.8 | 80 | 1 | |
| BP38811 | 4.30 | 2.80 | / | 2.00 | 1.48 | 1.00 | 1.00 | 1.48 | 0.8 | 70 | 1 | |
| BP39211 | 4.20 | 3.00 | 0.40 | 2.00 | 1.80 | 1.00 | 2.00 | 1.35 | 1.0 | 60 | 1 | |
| BP39411-0100001A | 8.00 | 5.80 | 0.50 | 1.80 | 1.48 | 1.00 | 0.80 | 0.80 | 1.0 | 100 | 1 | |
| BP39411-0225001A | 8.00 | 5.80 | 0.50 | 1.80 | 1.48 | 1.00 | 0.80 | 0.80 | 1.0 | 100 | 1 | |
| BP39411 | 8.00 | 5.80 | 0.50 | 2.00 | 1.48 | 1.00 | 0.80 | 0.80 | 1.0 | 120 | 1 | |
| BP38421-0225001A | 8.00 | 5.80 | 0.50 | 1.80 | 1.48 | 1.00 | 0.80 | 0.80 | 1.0 | 100 | 1 | |
| BP39421 | 8.00 | 5.80 | 0.50 | 1.80 | 1.48 | 1.00 | 0.80 | 0.80 | 1.0 | 100 | 1 | |
| BP39911 | 15.00 | 11.00 | / | / | 2.70 | 1.60 | 6.50 | 1.60 | 3.8 | 750 | 3 | |
| BP40011-04254AQ0A | 6.50 | 5.30 | / | / | / | 1.00 | 1.75 | / | 1.0 | 40 | 1 | |
| BP40011 | 6.50 | 5.30 | 0.40 | 1.80 | 1.50 | 1.00 | 1.75 | 0.50 | 1.0 | 40 | 1 | |
| BP40111 | 31.00 | 22.00 | / | / | 5.00 | 4.00 | / | / | 8.00 | 480 | 1 | |
| BP40211 | 6.25 | 4.25 | / | 3.20 | 2.20 | 1.20 | 1.00 | 2.20 | 0.5 | 70 | 1 | |
| BP40311-02102E0A | 9.00 | 7.30 | / | / | / | 1.00 | 1.75 | / | 1.0 | 70 | 3 | |
| BP40801 | 5.60 | 3.50 | 0.50 | 2.30 | 1.68 | 1.00 | / | 1.40 | 1.9 | 80 | 1 | |
| BP40802 | 6.40 | 3.60 | 0.50 | 2.10 | 1.80 | 1.00 | / | 1.50 | 1.9 | 80 | 1 | |
| BP41221 | 2.60 | 1.70 | / | 1.80 | 1.50 | 0.90 | 0.80 | 1.00 | 0.6 | 80 | 1 | |
| BP41301 | 22.02 | 11.00 | / | / | 3.80 | 5.00 | / | 1.80 | 3.0 | 150 | 2 | |
| BP41811 | 7.85 | 6.00 | 0.40 | 1.80 | 1.48 | 1.00 | / | / | 0.9 | 60 | 3 | |
| BP41911 | 16.80 | 13.50 | / | / | 2.70 | 1.80 | 4.80 | 1.60 | 1.0 | 120 | 3 | |
| BP42511 | 5.80 | 3.50 | 0.40 | 1.80 | 1.48 | 0.90 | 2.00 | 0.80 | 0.5 | 90 | 3 | |
| BP42611 | 9.50 | 7.30 | / | 2.40 | 2.18 | 1.50 | 1.75 | 1.00 | 1.1 | 70 | 3 | |
| BP42711-10254F0A | 8.00 | 5.30 | / | / | / | 1.00 | 3.00 | / | 1.0 | 70 | 3 | |
| BP42911 | 18.00 | 12.00 | / | / | 6.60 | 4.60 | 2.50 | 2.00 | 1.0 | 120 | 1 | |
| BP43011 | 5.20 | 4.00 | / | / | 1.02 | 0.60 | 1.50 | 0.50 | 0.6 | 10 | 1 | |
| BP43021 | 5.20 | 4.00 | / | / | 1.02 | 0.60 | / | / | 0.6 | 10 | 1 | |
| BP43031 | 5.50 | 4.00 | / | / | 1.02 | 0.60 | 1.50 | 0.50 | 0.9 | 40 | 2 | |
| BP43041 | 5.20 | 4.00 | / | / | 1.02 | 0.60 | 1.50 | 0.50 | 0.6 | 40 | 1 | |
| BP43211 | 17.93 | 10.30 | / | / | 2.54 | 1.42 | / | / | 0.92 | 20 | 1 | |
| BP43311-02350H0A | 6.50 | 5.30 | / | / | 1.48 | 1.00 | 1.75 | / | 1.0 | 70 | 1 | |
| BP43411 | 6.10 | 4.60 | / | 1.80 | 1.48 | 1.00 | 4.60 | 0.50 | 1.0 | 70 | 1 | |
| BP43511 | 6.90 | 5.70 | / | / | 2.00 | 1.00 | 1.50 | 1.00 | 0.6 | 90 | 1 | |
| BP43611 | 4.50 | 3.00 | / | / | 2.00 | 1.00 | 1.20 | 1.00 | 0.6 | 60 | 1 | |
| BP43712-08254A0A | 7.50 | 5.30 | / | / | / | 1.00 | 1.75 | / | 1.0 | 70 | 3 | |
| BP43811-02152A0A | 5.50 | 4.30 | / | / | / | 1.00 | 1.75 | / | 1.4 | 70 | 3 | |
| BP43911 | 15.00 | 11.00 | / | / | 2.70 | 1.00 | 5.00 | 1.60 | 4.0 | 800 | 3 | |
| BP44011-0100001A | 5.00 | 3.30 | / | 2.00 | 1.48 | 1.00 | 0.70 | 1.50 | 1.0 | 90 | 1 | |
| BP44611 | 5.50 | 4.00 | 0.50 | 0.80 | 1.50 | 1.00 | 0.60 | 0.70 | 1.0 | 60 | 1 | |
| BP44621 | 5.80 | 4.00 | 0.50 | 1.80 | 1.50 | 1.00 | 0.60 | 0.70 | 1.5 | 70 | 1 | |
| BP44811-A03113A | 8.00 | 5.30 | / | / | / | 1.00 | 1.75 | / | 1.0 | 30 | 1 | |
| BP45211 | 6.50 | 5.30 | / | 1.20 | 1.00 | 0.60 | 1.75 | 0.60 | 0.7 | 40 | 2 | |
| BP45711 | 8.80 | 5.90 | / | 1.90 | 1.57 | 1.00 | 5.00 | 0.89 | 1.0 | 70 | 4 | |
| BP46011 | 6.50 | 5.00 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 1.0 | 30 | 1 | |
| BP46211 | 6.00 | 4.00 | / | / | 1.60 | 1.10 | / | / | 1.3 | 50 | 1 | |
| BP46221 | 5.70 | 4.00 | / | / | 1.60 | 1.10 | / | / | 1.0 | 50 | 1 | |
| BP46311 | 5.50 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 0.90 | 0.50 | 1.0 | 40 | 1 | |
| BP46321 | 3.30 | 2.30 | / | / | 1.49 | 1.00 | / | / | 0.8 | 100 | 1 | |
| BP47511 | 5.30 | 3.10 | 0.40 | 2.00 | 1.48 | 1.00 | 0.60 | 1.45 | 1.0 | 60 | 1 | |
| BP47521 | 5.00 | 3.10 | 0.40 | 2.00 | 1.48 | 1.00 | 0.60 | 1.45 | 1.0 | 60 | 1 | |
| BP50111 | 10.30 | 6.40 | 0.40 | 3.56 | 2.54 | 1.47 | 7.65 | 3.1 | 70 | 1 | |
|
| BP51311 | 6.45 | 3.60 | 0.50 | 1.80 | 1.48 | 1.00 | 0.80 | 1.45 | 1.0 | 70 | 1 | |
| BP41211 | 4.60 | 3.60 | 0.50 | 1.80 | 1.50 | 1.00 | 1.00 | 0.80 | 0.6 | 20 | 1 | |
| BP50811 | 4.80 | 3.50 | 0.50 | 1.80 | 1.50 | 0.90 | / | / | 1.0 | 40 | 2 | |
| BP52811 | 4.50 | 2.80 | 0.40 | 1.80 | 1.40 | 1.00 | 1.50 | 1.53 | 1.0 | 40 | 3 | |
| BP52111 | 2.80 | 2.00 | 0.40 | 1.60 | 1.48 | 1.00 | 1.50 | 0.60 | 0.6 | 30 | 1 | |
| BP46321 | 2.90 | 1.90 | 0.40 | 1.80 | 1.48 | 1.00 | 1.80 | 1.80 | 0.8 | 100 | 1 | |
| BP23021 | 6.00 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 1.0 | 30 | 1 | |
| BP47911 | 9.10 | 7.60 | 0.40 | 1.90 | 1.48 | 1.00 | 1.80 | 0.80 | 8.3 | 60 | 1 | |
| BP46311 | 5.50 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 0.90 | 0.50 | 1.0 | 40 | 1 | |
| BP55011 | 5.40 | 3.60 | 0.50 | 1.80 | 1.55 | 1.00 | 0.60 | 0.70 | 1.5 | 70 | 1 | |
| BP54711 | 5.80 | 4.80 | 0.40 | 1.80 | 1.50 | 1.00 | 3.00 | 0.60 | 0.8 | 50 | 1 | |
| BP54311 | 10.00 | 7.30 | 0.40 | 1.80 | 1.48 | 1.00 | 0.80 | 0.50 | 1.0 | 70 | 2 | |
| BP51911 | 2.70 | 1.40 | 0.40 | 1.80 | 1.30 | 0.90 | / | / | 0.7 | 60 | 1 | |
| BP26211 | 8.90 | 5.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.50 | 0.50 | 2.0 | 70 | 3 | |
| BP55111 | 7.00 | 4.30 | / | / | 1.48 | 1.00 | 3.00 | 0.50 | 1.5 | 100 | 3 | |
| BP56911 | 6.10 | 4.80 | 0.70 | 2.30 | 1.50 | 1.00 | 2.00 | 0.70 | 0.5 | 70 | 3 | |
| BP51811 | 5.10 | 3.40 | 0.40 | 2.00 | 1.50 | 1.00 | 1.60 | 1.50 | 0.5 | 40 | 1 | |
| BP54911 | 13.50 | 9.50 | / | / | 2.00 | 1.40 | 3.30 | 1.00 | 3.5 | 180 | 2 | |
| BP53211 | 11.20 | 7.00 | 0.50 | 2.00 | 1.48 | 0.90 | 2.20 | / | 2.0 | 40 | 1 | |
| BP53511 | 3.10 | 1.35 | 0.60 | 1.60 | 1.18 | 0.70 | 7.40 | 1.10 | 1.2 | 100 | 0.5 | |
| BP57711 | 8.50 | 6.30 | / | / | 2.50 | 1.50 | / | / | 1.0 | 110 | 1 | |
| BP54611 | 3.80 | 2.30 | 0.50 | 1.50 | 1.28 | 0.80 | 1.20 | 0.60 | 1.0 | 55 | 1 | |
| BP54811 | 5.10 | 3.50 | 0.50 | 2.30 | 2.00 | 1.20 | 1.50 | 2.00 | 0.7 | 100 | 3 | |
| BP56511 | 23.50 | 18.50 | 0.50 | 3.00 | 2.50 | 1.50 | 4.00 | 1.50 | 1.0 | 30 | 1 | |
| BP54511 | 4.80 | 3.20 | 0.50 | 1.80 | 1.48 | 1.00 | 1.00 | 1.48 | 1.0 | 50 | 1 | |
| BP54521 | 5.10 | 3.20 | 0.50 | 1.80 | 1.48 | 1.00 | 1.00 | 1.48 | 1.3 | 70 | 1 | |
| BP38611 | 3.50 | 2.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.10 | 0.50 | 0.8 | 50 | 1 | |
| BP50931 | 5.10 | 3.70 | 0.50 | 1.80 | 1.50 | 1.00 | 0.60 | 0.70 | 1.3 | 130 | 1 | |
| BP45211 | 6.50 | 4.70 | 0.40 | 1.20 | 1.00 | 0.60 | 1.75 | 0.60 | 0.7 | 40 | 2 | |
| BP13921 | 14.00 | 12.50 | / | / | 1.45 | 1.00 | 1.50 | 0.80 | 1.0 | 40 | 2 | |
| BP56911 | 6.10 | 4.80 | 0.70 | 2.30 | 1.50 | 1.00 | 2.00 | 0.70 | 0.5 | 70 | 3 | |
| BP26311 | 20.00 | 18.30 | 0.40 | 1.80 | 1.48 | 1.00 | 2.75 | 1.00 | 1.0 | 40 | 1 | |
| BP59111 | 5.80 | 4.70 | 0.50 | 1.10 | 1.00 | 0.60 | 2.00 | 0.60 | 1 | 40 | 2 | |
| BP30221 | 9.10 | 3.60 | 1.00 | 7.00 | 6.00 | 5.00 | 1.50 | 6.00 | 1 | 95 | 1 | |
| BP56711 | 18.00 | 12.00 | / | / | 6.00 | 4.60 | 2.50 | 2.00 | 4 | 120 | 3 | |
| BP51341 | 6.65 | 4.90 | 0.50 | 1.80 | 1.48 | 1.00 | 1.30 | 1.45 | 1.4 | 100 | 1 | |
| BP60111 | 16.00 | 9.65 | / | / | 2.67 | 2.10 | 2.30 | 0.64 | 2.5 | 120 | 3 | |
| BP50941 | 5.40 | 3.70 | 0.50 | 1.80 | 1.50 | 1.00 | 0.60 | 0.70 | 1.3 | 130 | 1 | |
| BP53811 | 7.80 | 3.20 | 0.50 | 3.90 | 2.30 | 1.30 | 5.20 | 2.00 | 4.5 | 110 | 0.5 | |
| MP818-11GG | 4.20 | 3.00 | 0.40 | 1.50 | 1.28 | 0.80 | 1.75 | 0.50 | 1.0 | 80 | 1 | |
| MP818-21GG | 4.40 | 3.00 | 0.40 | 1.50 | 1.28 | 0.80 | 1.75 | 0.50 | 1.0 | 80 | 1 | |
| MP819-11GG | 4.50 | 3.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.75 | 0.50 | 1.0 | 70 | 1 | |
| MP819-21GG | 5.00 | 3.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.75 | 0.50 | 1.0 | 70 | 1 | |
| MP820-11GG | 5.50 | 4.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.75 | 0.50 | 1.0 | 70 | 1 | |
| MP820-21GG | 6.00 | 4.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.75 | 0.50 | 1.0 | 70 | 1 | |
| MP821-11GG | 6.50 | 4.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.75 | 0.50 | 1.0 | 70 | 1 | |
| MP821-21GG | 7.00 | 4.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.75 | 0.50 | 1.0 | 70 | 1 | |
| MP821-31GG | 7.50 | 4.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.75 | 0.50 | 1.0 | 70 | 1 | |
| MP821-41GG | 8.00 | 4.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.75 | 0.50 | 1.0 | 70 | 1 | |
| BP52411 | 8.00 | 5.30 | 0.40 | 1.80 | 1.48 | 1.00 | 4.60 | 0.50 | 1.0 | 30 | 1 | |
| BP50711 | 7.20 | 4.20 | / | / | 2.00 | 1.50 | 1.80 | 0.90 | 1.8 | 200 | 1 | |
| BP57411 | 12.00 | 8.50 | / | / | 2.60 | 1.70 | 2.00 | 1.50 | 9.0 | 300 | 3 | |
| BP62411 | 5.60 | 2.30 | 0.80 | 3.90 | 2.40 | 1.30 | 4.40 | 2.20 | 1.2 | 120 | 3 | |
| BP57211 | 7.00 | 5.00 | 0.50 | 2.50 | 2.00 | 1.40 | 2.50 | 1.40 | 1.0 | 100 | 1 | |
| BP62111 | 9.50 | 6.50 | / | / | 2.50 | 1.70 | 2.50 | 2.00 | 1.5 | 110 | 2 | |
| BP43041 | 5.20 | 4.00 | / | / | 1.02 | 0.60 | 1.50 | 0.50 | 0.6 | 40 | 1 | |
| BP51711 | 4.50 | 3.30 | 0.40 | 1.80 | 1.50 | 1.00 | 1.75 | 0.50 | 0.7 | 50 | 1 | |
| BP63811 | 5.00 | 3.80 | 0.40 | 1.80 | 1.50 | 1.00 | 1.75 | 0.50 | 0.6 | 30 | 1 | |
| BP63511 | 3.70 | 2.60 | 0.40 | 1.80 | 1.48 | 1.00 | 1.20 | 0.50 | 0.8 | 50 | 1 | |
| BP61611 | 12.50 | 8.00 | 2.00 | 3.20 | 2.70 | 2.00 | 3.50 | 2.40 | 4.5 | 100 | 1 | |
| BP64211 | 6.90 | 4.90 | 1.50 | 2.70 | 1.50 | 0.90 | 3.90 | 1.80 | 1.7 | 50 | 1 | |
| BP55911 | 9.70 | 7.70 | 0.50 | 2.20 | 1.85 | 1.20 | 3.00 | 1.00 | 1.6 | 130 | 1 | |
| BP69711 | 8.50 | 5.50 | / | / | 3.00 | 2.10 | 5.50 | 1.20 | 1.5 | 40 | 1 | |
| BP58111 | 4.50 | 3.30 | 0.40 | 1.80 | 1.28 | 0.80 | 1.75 | 0.50 | 0.7 | 35 | 1 | |
| BP63121 | 4.20 | 3.20 | 0.50 | 1.80 | 1.50 | 1.00 | 0.50 | 0.90 | 1.0 | 50 | 1 | |
| BP63111 | 5.50 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 1.0 | 40 | 1 | |
| PB68511 | 10.00 | 5.20 | 0.40 | 1.80 | 1.48 | 1.00 | 2.90 | 0.65 | 2.3 | 70 | 1 | |
| BP24211 | 13.00 | 9.50 | / | / | 2.80 | 2.00 | 3.00 | 1.00 | 2.5 | 150 | 2 | |
| BP60211 | 5.80 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | / | / | 1.0 | 70 | 3 | |
| BP57011 | 8.20 | 5.30 | 0.50 | 1.40 | 1.02 | 0.60 | 1.50 | 0.50 | 1.0 | 70 | 2 | |
| BP62521 | 5.50 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | / | / | 1.0 | 70 | 3 | |
| BP62511 | 5.70 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.90 | 1.0 | 70 | 3 | |
| BP46611 | 7.30 | 5.30 | 0.40 | 1.40 | 1.26 | 0.80 | 2.50 | 0.50 | 0.7 | 40 | 2 | |
| BP71711 | 2.90 | 1.40 | 0.40 | 2.00 | 1.50 | 1.00 | / | 1.50 | 0.7 | 100 | 1 | |
| PB59811 | 8.60 | 7.20 | 2.50 | 1.20 | 0.90 | 0.48 | / | 0.76 | 0.7 | 50 | 1 | |
| BP71791 | 3.40 | 2.40 | 0.40 | 2.00 | 1.50 | 1.00 | / | 1.50 | 0.7 | 100 | 1 | |
| BP72931 | 5.50 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 1.0 | 40 | 3 | |
| BP66721 | 2.55 | 1.55 | 0.30 | 2.00 | 1.50 | 1.00 | 0.85 | 1.53 | 0.7 | 100 | 1 | |
| BP66711 | 5.75 | 4.00 | 0.40 | 1.50 | 1.02 | 0.60 | 1.50 | 0.50 | 0.8 | 40 | 1 | |
| BP73711 | 9.00 | 6.00 | 1.00 | 6.00 | 3.00 | 1.40 | 4.00 | 1.80 | 3.0 | 80 | 1 | |
| BP75211 | 5.30 | 3.50 | 1.00 | 2.00 | 1.48 | 1.00 | 1.10 | 1.48 | 1.0 | 70 | 2 | |
| BP76311 | 4.50 | 3.30 | 0.40 | 1.80 | 1.50 | 1.00 | 1.75 | 0.50 | 1.0 | 30 | 1 | |
| BP78122 | 6.50 | 4.00 | / | 2.80 | 2.50 | 1.90 | 2.30 | 0.60 | 2.00 | 20 | 1 | |
| BP77611 | 21.50 | 13.90 | / | / | 4.45 | 3.00 | 2.95 | 2.50 | 3.0 | 160 | 3 | |
| BP64711 | 6.40 | 5.00 | 0.30 | 1.05 | 0.90 | 0.40 | 1.00 | 0.50 | 0.7 | 50 | 1 | |
| BP78311 | 8.00 | 6.30 | 0.40 | 1.60 | 1.35 | 0.90 | 2.75 | 0.60 | 2.0 | 110 | 1.5 | |
| BP69311 | 4.90 | 4.00 | / | 1.50 | 1.02 | 0.60 | 1.10 | 0.50 | 0.6 | 30 | 1 | |
| BP74711 | 5.50 | 4.30 | 3.90 | 0.40 | 1.28 | 0.80 | 4.20 | 0.50 | 1.0 | 70 | 1 | |
| BP69911 | 5.80 | 4.30 | 0.40 | 1.40 | 1.26 | 0.80 | 1.70 | 0.50 | 0.9 | 80 | 1 | |
| BP74811 | 6.00 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 1.0 | 70 | 2 | |
| BP73311 | 5.10 | 3.60 | 0.50 | 1.80 | 1.50 | 1.00 | 1.0 | 0.70 | 1.0 | 6 | 1 | |
| BP73321 | 5.40 | 3.60 | 0.50 | 1.80 | 1.50 | 1.00 | 1.80 | 0.70 | 1.5 | 70 | 1 | |
| BP67211 | 7.00 | 4.00 | 0.40 | 1.80 | 1.50 | 1.00 | 2.90 | 0.65 | 1.7 | 60 | 1 | |
| BP64511 | 10.50 | 8.50 | 0.50 | 2.00 | 1.50 | 1.00 | / | / | 0.8 | 70 | 1 | |
| BP81611 | 9.50 | 7.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 1.0 | 70 | 3 | |
| BP623XX | 4.20 | 3.00 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 1.0 | 40 | 1 | |
| BP77111 | 3.20 | 2.20 | 0.50 | 2.00 | 1.50 | 1.00 | 0.60 | 0.60 | 1.0 | 100 | 1 | |
| BP73511 | 6.60 | 5.00 | 0.40 | 4.00 | 2.98 | 2.00 | 1.40 | 1.00 | 1.0 | 60 | 2 | |
| BP78931 | 5.40 | 4.00 | / | / | 1.20 | 0.70 | 2.50 | 0.60 | 4.8 | 50 | 1 | |
| BP77411 | 15.80 | 12.50 | / | / | 2.70 | 1.80 | 3.50 | 1.60 | 1.0 | 120 | 3 | |
| BP79611 | 6.50 | 4.80 | 0.40 | 1.50 | 1.28 | 0.80 | 1.75 | 0.50 | 1.3 | 50 | 3 | |
| BP82921 | 12.00 | 9.40 | 0.40 | 1.85 | 1.70 | 1.00 | 2.00 | 1.30 | 1.5 | 100 | 3 | |
| BP78531 | 4.20 | 3.10 | 0.40 | 1.80 | 1.48 | 1.00 | 1.00 | 0.50 | 1.0 | 40 | 1 | |
| BP65311 | 6.00 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 1.0 | 40 | 2 | |
| BP58711 | 9.60 | 7.40 | 0.40 | 2.00 | 1.48 | 1.00 | 4.00 | 1.35 | 1.4 | 40 | 3 | |
| BP58721 | 10.10 | 7.40 | 0.40 | 2.00 | 1.48 | 1.00 | 4.00 | 1.35 | 1.5 | 50 | 3 | |
| BP75611 | 13.40 | 9.00 | 1.20 | 4.60 | 2.90 | 2.00 | / | / | 2.0 | 60 | 3 | |
| BP72921 | 3.40 | 2.00 | 0.30 | 2.60 | 1.48 | 1.00 | / | / | 0.6 | 70 | 1 | |
| BP76711 | 6.00 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 1.0 | 40 | 1 | |
| BP86911 | 7.00 | 5.50 | 2.50 | 2.00 | 1.48 | 1.00 | 1.50 | 0.75 | 1.0 | 70 | 2 | |
| BP87201 | 4.00 | 3.00 | 0.50 | 2.00 | 1.50 | 1.00 | 1.15 | 1.50 | 0.8 | 120 | 1 | |
| BP80621 | 8.80 | 7.20 | 0.50 | 2.00 | 1.50 | 1.00 | 1.00 | 1.00 | 2.0 | 70 | 2 | |
| BP80611 | 5.60 | 3.70 | 0.40 | 1.80 | 1.48 | 1.00 | 1.00 | 0.50 | 1.0 | 40 | 1 | |
| BP86811 | 4.80 | 3.75 | / | / | 2.08 | 1.50 | 1.50 | 1.00 | 1.0 | 70 | 1 | |
| BP90831 | 5.40 | 4.40 | / | 1.05 | 1.00 | 0.50 | 1.40 | 0.50 | 0.8 | 110 | 1 | |
| BP60411 | 8.30 | 6.30 | 0.40 | 1.80 | 1.48 | 1.00 | 2.50 | 0.80 | 1.0 | 100 | 3 | |
| BP60421 | 9.00 | 6.30 | 0.40 | 1.80 | 1.48 | 1.00 | 2.50 | 0.80 | 1.0 | 100 | 3 | |
| BP88511 | 6.55 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.30 | 0.50 | 1.0 | 40 | 1 | |
| BP75111 | 2.70 | 1.70 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 0.6 | 100 | 1 | |
| BP92101 | 10.00 | 7.50 | 2.50 | 2.50 | 2.00 | 1.40 | 2.50 | 1.00 | 2.0 | 110 | 2 | |
| BP50211 | 5.60 | 4.90 | 0.50 | 1.35 | 1.08 | 0.60 | / | / | 0.6 | 40 | 1 | |
| BP90911 | 2.80 | 1.85 | 0.35 | 1.80 | 1.50 | 1.00 | 1.05 | 0.60 | 2.1 | 60 | 1 | |
| BP92411 | 6.10 | 4.40 | 0.60 | 2.00 | 1.50 | 0.90 | 4.00 | 0.60 | 0.8 | 100 | 2 | |
| BP66731 | 6.80 | 5.00 | 0.40 | 1.50 | 1.02 | 0.60 | 1.50 | 0.50 | 0.80 | 40 | 1 | |
| BP86311 | 5.10 | 4.10 | 1.40 | 1.80 | 1.48 | 1.00 | 1.20 | 0.50 | 1.0 | 40 | 1 | |
| BP82211 | 7.00 | 5.30 | 0.40 | 2.00 | 1.48 | 1.00 | 2.20 | 1.50 | 1.0 | 70 | 3 | |
| BP82511 | 7.20 | 5.00 | 0.60 | 1.05 | 0.90 | 0.48 | 2.00 | 0.50 | 0.7 | 50 | 1 | |
| BP85911 | 5.70 | 2.50 | / | / | 1.48 | 1.00 | 1.40 | 0.80 | 1.10 | 80.00 | 100ma | |
| BP92102 | 10.690 | 7.50 | 2.50 | 2.50 | 2.00 | 1.40 | 2.50 | 1.00 | 2 | 110 | 2 | |
| BP95911 | 11.00 | 8.00 | / | / | 5.00 | 3.00 | 2.50 | 2.50 | 2.5 | 210 | 3 | |
| BP96811 | 5.60 | 3.20 | / | 1.80 | 1.58 | 0.90 | 2.90 | 1.20 | 1.7 | 120 | 2 | |
| BP86711 | 5.30 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 1.00 | 50 | 1 | |
| BP96011 | 13.50 | 10.30 | 0.40 | 2.00 | 1.48 | 1.00 | 1.75 | 0.85 | 2.50 | 135 | 3 | |
| BP96021 | 12.50 | 10.30 | 0.40 | 2.00 | 1.48 | 1.00 | 1.75 | 0.85 | 1.50 | 95 | 3 | |
| BP96031 | 12.00 | 10.30 | 0.40 | 2.00 | 1.48 | 1.00 | 1.75 | 0.85 | 1.50 | 95 | 3 | |
| BP96811 | 9.00 | 7.30 | 0.40 | 1.80 | 1.48 | 1.00 | 2.50 | 0.50 | 1.00 | 70 | 3 | |
| BP97011 | 7.50 | 6.50 | / | / | 4.00 | 2.00 | 2.50 | 2.00 | 0.80 | 100 | 1 | |
| BP94311 | 7.00 | 5.30 | 0.40 | 1.80 | 1.48 | 1.00 | 6.00 | 0.50 | 1.00 | 70 | 1 | |
| BP94321 | 7.00 | 5.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.70 | 0.50 | 1.00 | 70 | 1 | |
| BP94711 | 5.80 | 4.30 | 0.40 | 1.80 | 1.48 | 1.00 | 1.75 | 0.50 | 1.00 | 70 | 2 | |
| BP73011 | 8.00 | 5.30 | 0.40 | 1.80 | 1.48 | 1.00 | / | 0.50 | 1.00 | 70 | 3 | |
| BP99721 | 5.50 | 4.30 | 0.40 | 1.50 | 1.28 | 0.80 | 1.75 | 0.50 | 1.00 | 40 | 0.5 | |
| BP96411 | 5.60 | 4.90 | 0.50 | 1.35 | 1.08 | 0.60 | / | / | 0.60 | 40 | 1 | |
| BP95602 | 3.70 | 2.10 | 0.90 | 3.90 | 2.50 | 2.00 | 1.10 | 2.50 | 1.00 | 150 | 1 | |
| BP95603 | 3.50 | 2.60 | 0.40 | 3.10 | 2.55 | 1.90 | / | / | 0.80 | 130 | 1 | |
| BP89811 | 4.50 | 2.70 | 0.40 | 1.90 | 1.52 | 1.00 | 1.75 | 0.50 | 1.00 | 65 | 1 | |
| BP85111 | 9.95 | 7.40 | / | / | 4.20 | 2.60 | 2.50 | 2.00 | 1.90 | 130 | 2 | |
| BP99611 | 8.50 | 3.00 | 1.00 | 4.00 | 2.50 | 1.90 | 8.00 | 2.50 | 1.20 | 80 | 3 | |
| BP102811 | 5.40 | 4.00 | 0.50 | 4.00 | 3.00 | 1.80 | 1.50 | 2.60 | 1.00 | 170 | 3 | |
| BP98411 | 7.00 | 5.30 | 0.40 | 1.80 | 1.48 | 1.00 | 5.60 | 0.50 | 1.00 | 70 | 3 | |
| BP99111 | 7.70 | 6.50 | 0.40 | 1.80 | 1.48 | 1.00 | 4.60 | 0.50 | 1.00 | 70 | 3 | |
| BP101011 | 9.00 | 7.00 | / | / | 2.50 | 1.80 | 3.00 | 1.20 | 2.00 | 120 | 3 | |
| BP50961 | 5.70 | 3.70 | 0.50 | 1.80 | 1.50 | 1.00 | 0.60 | 0.70 | 0.70 | 95 | 1 | |
| BP50971 | 6.00 | 3.70 | 0.50 | 1.80 | 1.50 | 1.00 | 0.60 | 0.70 | 1.00 | 120 | 1 | |
| BP105311 | 8.00 | 5.30 | 0.40 | 1.80 | 1.48 | 1.00 | 2.50 | 0.50 | 1.00 | 70 | 1 | |
| BP17611 | 16.20 | 13.30 | / | / | 4.00 | 3.00 | 3.30 | 3.30 | 1.3 | 100 | 1 | |
| BP13804 | 8.30 | 6.40 | / | / | 1.80 | 1.20 | 2.00 | 1.00 | 1.5 | 80 | 2 | |
| BP106511 | 6.50 | 4.80 | 0.50 | 1.80 | 1.50 | 1.00 | 2.00 | 0.60 | 1.1 | 80 | 3 | |
| BP49541 | 5.40 | 3.20 | 0.80 | 1.80 | 1.50 | 1.00 | / | 0.70 | 1.3 | 60 | 1 | |
| BP49551 | 5.10 | 3.20 | 0.00 | 1.80 | 1.50 | 1.00 | / | 0.70 | 1.3 | 60 | 1 | |
| BP27031 | 5.70 | 4.50 | 0.60 | 1.50 | 1.18 | 0.70 | 2.40 | 0.50 | 0.6 | 40 | 1 |
Learn more about How to order special pogo pin, If you have special requirements please contact us
Application of Spring loaded contact probes pogo pin supplier
 |
 |
 |
||
Learn more type of Pogo pin
 |
 |
 |
 |
 |
 |
|||||
| SMT/SMD | DIP | Right angle | Double head | Solder cup | Screw thread |
Contact us
Dongguan CFE Electronic Co., Ltd. is a China leading precision spring-loaded connector manufacturing company. We focused on the development and manufacture of Pogo Pin & connector 9 years long. As the leading electronic components manufacturer in China, CFE has accomplished over 300 customized Pogo Pin chargers range from 2 pins to 30 pins. We also achieved the innovation of Pogo Pin product, which is the first invention in the Asian, the second invention around the world. What’s more, CFE also provides the short delivery times and competitive price for our clients. Learn more about us
