[BP93611] Spring loaded PCB SMD SMT pogo pin

[BP93611] Spring loaded PCB SMD SMT pogo pin

  • Plating: Gold plated (According to customer requirements)
  • Rated current & voltage: DC12V; 1A~5A
  • High durability: the pogo pin contacts life highest can be 1,000,000 times
  • Application: PCB, AV equipment, Data communication device,health equipment
Inquiry Now

Description

Spring loaded PCB SMD SMT pogo pin. Gold plated spring loaded PCB SMD SMT pogo pin, stable quality, the bottom of barrel is designed as flat shape, easy to be mounted on PCB. Uneven mating surfaces, floating height requirements and exposure to extreme vibration all challenge the integrity of electrical connections. CFE Pogo Pin contacts provide a reliable electrical connection in the most rigorous environments.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of Spring loaded PCB SMD SMT pogo pin


 Spring loaded PCB SMD SMT pogo pin

Download PDF

Part No. BP93611
Materials Plunger Brass 0.25um Au over Ni
Barrel Brass 0.25um Au over Ni
Spring SUS 304 Au
Mechanical Contact force 255g ±20% at 3.7mm working stroke
Full stroke 2.6mm
Life test 20,000 cycles
Electrical Rated current and voltage 12V DC, 5A max
Contact-resistance 50 milliohms max .The contact is more stable and the conductivity will be better

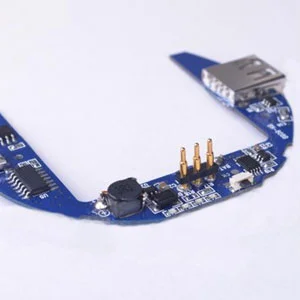

Application of Spring loaded PCB SMD SMT pogo pin

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
