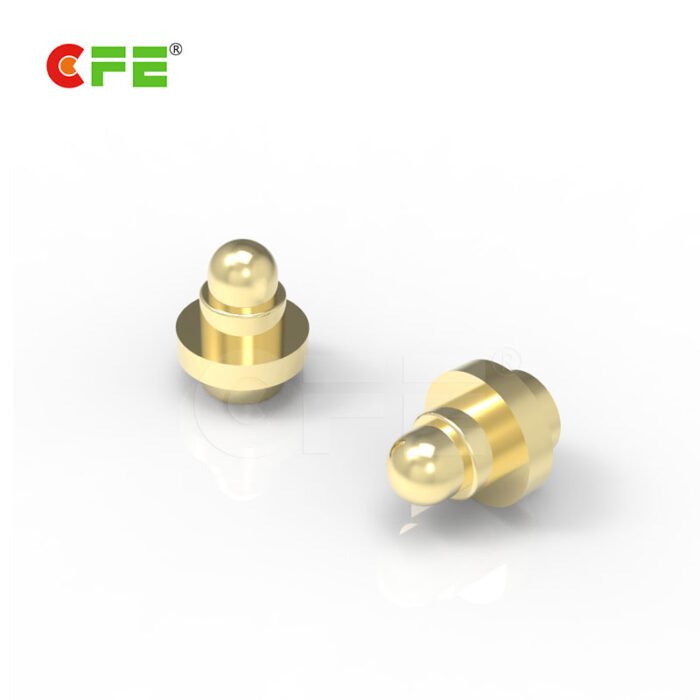

[BP95602] Spring test probe SMT SMD pogo pins

[BP95602] Spring test probe SMT SMD pogo pins

  • Materials: body + piston brass, spring stainless steel
  • Electrical contact resistance max. 30 milliohms
  • Rated current & voltage: DC12V; 1A~5A
  • Highest life can be 1,000,000 times
Inquiry Now

Description

Spring test probe SMT SMD pogo pins,it’s plunger and barrel is brass Au over Ni, and the spring is Sus surface treatment. CFE has over 100 styles to choose from to ensure you find the right spring-loaded pin for your design. What’s more, the pogo pin is high durability, it’s highest life can be 1,000,000 times.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

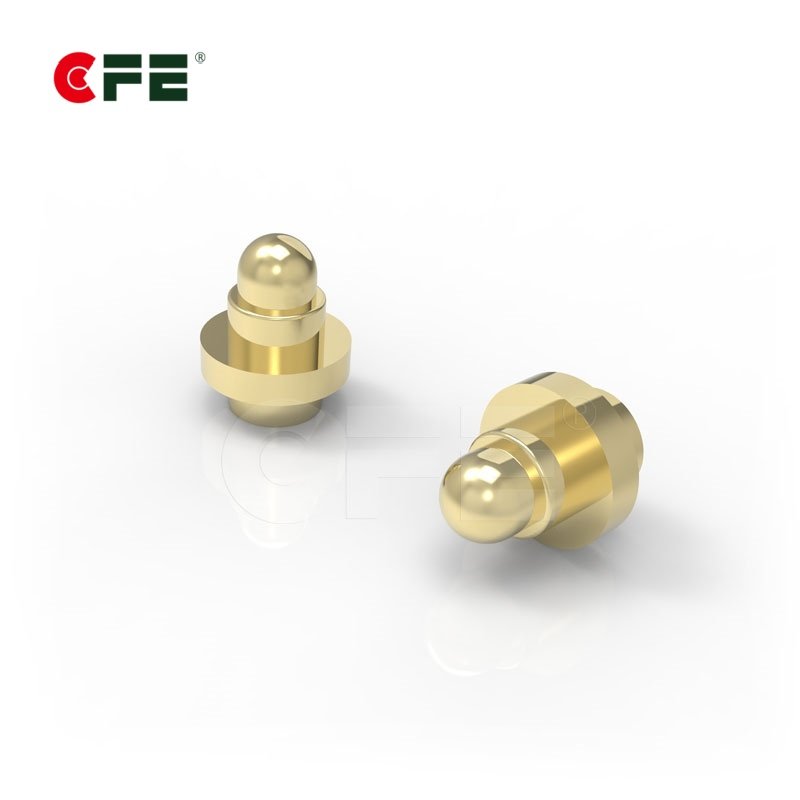

Details of Spring test probe SMT SMD pogo pins


 spring test probe SMT SMD pogo pins

Download PDF

Part No. BP95602
Materials Plunger Brass 0.25um Au over Ni
Barrel Brass 0.25um Au over Ni
Spring SUS 304 Au
Mechanical Contact force 150g ±20% at 1.00mm working stroke
Full stroke 1.2mm
Life test 20,000 cycles
Electrical Rated current and voltage 12V DC, 1A
Contact-resistance 50 milliohms max .The contact is more stable and the conductivity will be better

Application of Spring test probe SMT SMD pogo pins

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
