- Insulator:Black plastic (265℃) UL94 V-0
- Spring force: 90g±20% at 1.0mm working storke
- Rated current & voltage: DC 12V,1A max,Contact resistance:50 milliohm Max
- Life test: 100,000 cycles
Description
Though hole spring loaded probe connector.Gold-plated components and springs ensure the highest conductivity, corrosion resistance and durability, ensuring reliable operation over 1 million cycles. Excellent performance and specially suitable for high-frequency application, providing a reliable electrical connection in the most rigorous environments.
Advantages of our company
- World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
- World’s second manufacturer developed 1.27 pitch pogo pin connector
- Asia’s first manufacturer achieved compression mechanical 1 million life times
- Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
- China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

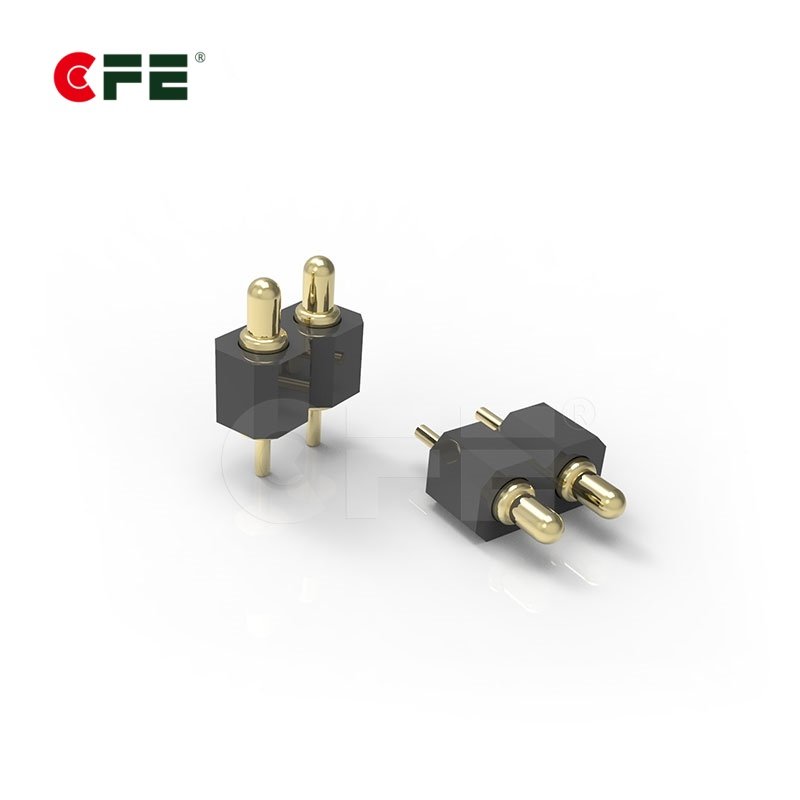

Details of Though hole spring loaded probe connector
|
Part No. | MP110-2112-A02100A | |
| Materials | Insulator | Black high (265℃) plastics UL94 V-0 | |
| Plunger | Brass Au over Ni | ||
| Barrel | Brass Au over Ni | ||
| Spring | SUS surface treatment | ||
| Mechanical | Contact force | 90g+20g at 1.0mm working stroke | |
| Full stroke | 1.40mm | ||
| Life test | 100,000 cycles | ||
| Electrical | Rated current and voltage | DC 12V,1A max | |
| Contact-resistance | 50 milliohms max .The contact is more stable and the conductivity will be better | ||
Customized service
Learn more about How to order special pogo pin, If you have special requirements please contact us
Learn more type of Pogo pin
 |
 |
 |
 |
 |
 |
|||||
| SMT/SMD | DIP | Right angle | Double head | Solder cup | Screw thread |
