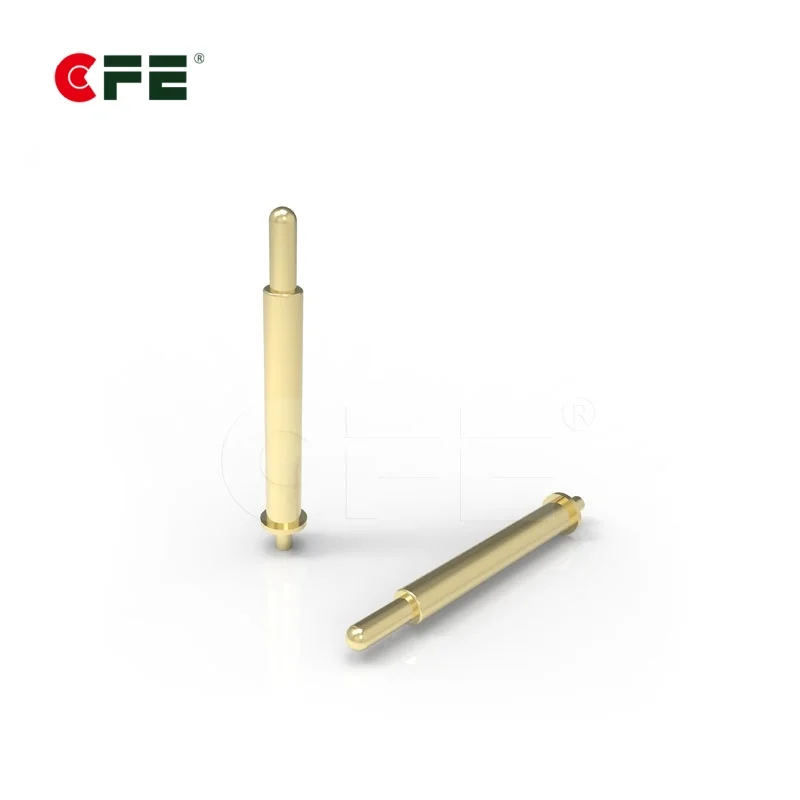

[BP67711] Through hole mount spring loaded pogo pins

[BP67711] Through hole mount spring loaded pogo pins

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze

  • Gold plated (According to customer requirements)

  • R&D low height pogo pin for 1.3mm

  • Rated current & voltage: DC12V; 1A~5A

  • Highest life can be 1,000,000 times

Inquiry Now

Description

Through hole mount spring loaded pogo pins. Spring loaded pogo pins, sometimes called Spring-loaded contacts, spring probes, or pogo pins, provide a highly-reliable, precision made interconnect solution ideal for a number of demanding application requirements in the fast moving world of electronic interconnects, for cardiac defibrillator, car charging,air purifier, charging and signal transmission products etc.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

Details of Through hole mount spring loaded pogo pins


 Through hole mount spring loaded pogo pins

Download PDF

Part No. BP67711
Materials Plunger Brass 0.075um Au over Ni
Barrel Brass 0.075um Au over Ni
Spring SUS 304 Au
Mechanical Contact force 200g ±20% at 3.0mm working stroke
Full stroke 4.20mm
Life test 20,000 cycles
Electrical Rated current and voltage 12V DC, 2A
Contact-resistance 50 milliohms max .The contact is more stable and the conductivity will be better

Application of Through hole mount spring loaded pogo pins

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
