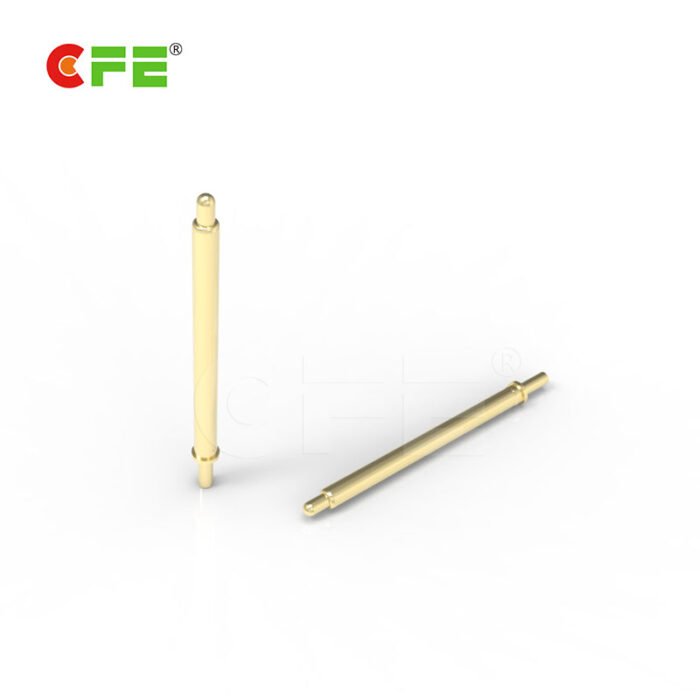

[BP26311] Through hole spring loaded electrical contact pins

[BP26311] Through hole spring loaded electrical contact pins

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze
  • Plating: Gold plated (According to customer requirements)
  • Variety heights design, lowest can be 1.33 mm
  • Contact resistance: 30 mOhm Max
  • Rated current & voltage: DC12V; 1A~5A,
Inquiry Now

Description

Through hole spring loaded electrical contact pins. Pogo pin contacts are precision machined, with variety heights design, lowest can be 1.33 mm. CFE has over 100 styles to choose from to ensure you find the right spring-loaded pin for your design. You can customized the pogo pin, you only need to tell us some important parameters.

Advantages of our company

  • World’s first manufacturer developed large current pogo pin with 20A, 15A series has been mass produced
  • World’s second manufacturer developed 1.27 pitch pogo pin connector
  • Asia’s first manufacturer achieved compression mechanical 1 million life times
  • Asia’s first professional medical, industrial, special industries such as automobile industry suppliers
  • China’s first pogo pin product with magnet combined connector manufacturer and own most solutions

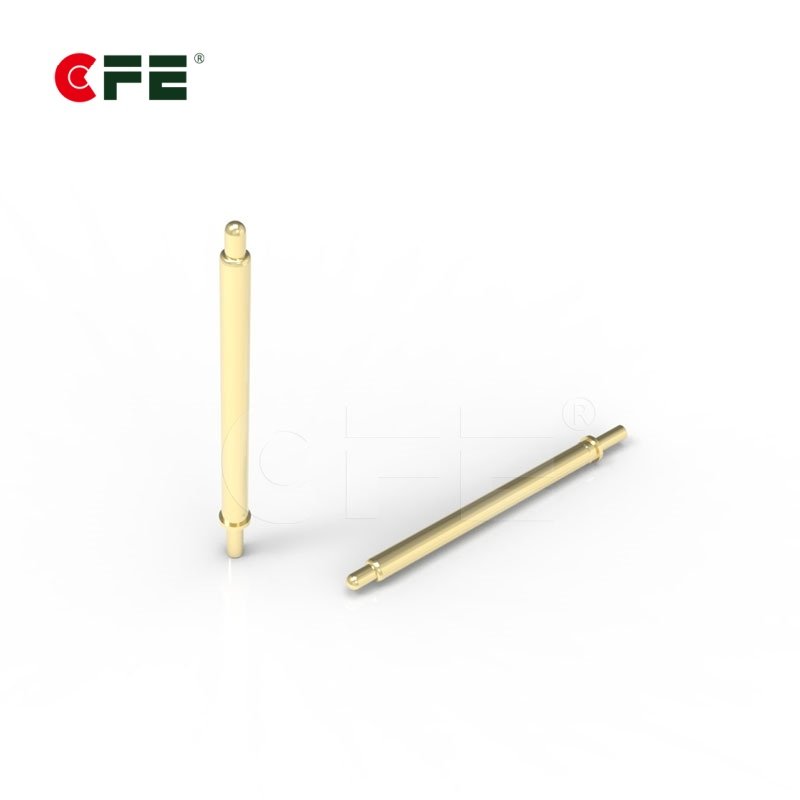

Details of Through hole spring loaded electrical contact pins


 Through hole spring loaded electrical contact pins

Download PDF

Part No. BP26311
Materials Plunger Brass  Au over 0.25um Ni
Barrel Brass Au over0.25um Ni
Spring SUS
Mechanical Contact force 40g ±10g at 1.0mm working stroke
Full stroke 1.40mm
Life test 50,000 cycles
Electrical Rated current and voltage 12V DC, 1A
Contact-resistance 50 milliohms max .The contact is more stable and the conductivity will be better

Application of Through hole spring loaded electrical contact pins

Customized service

Learn more about How to order special pogo pin, If you have special requirements please contact us

Learn more type of Pogo pin

 SMT/SMD  DIP  Right angle  Double head  Solder cup  Screw thread
