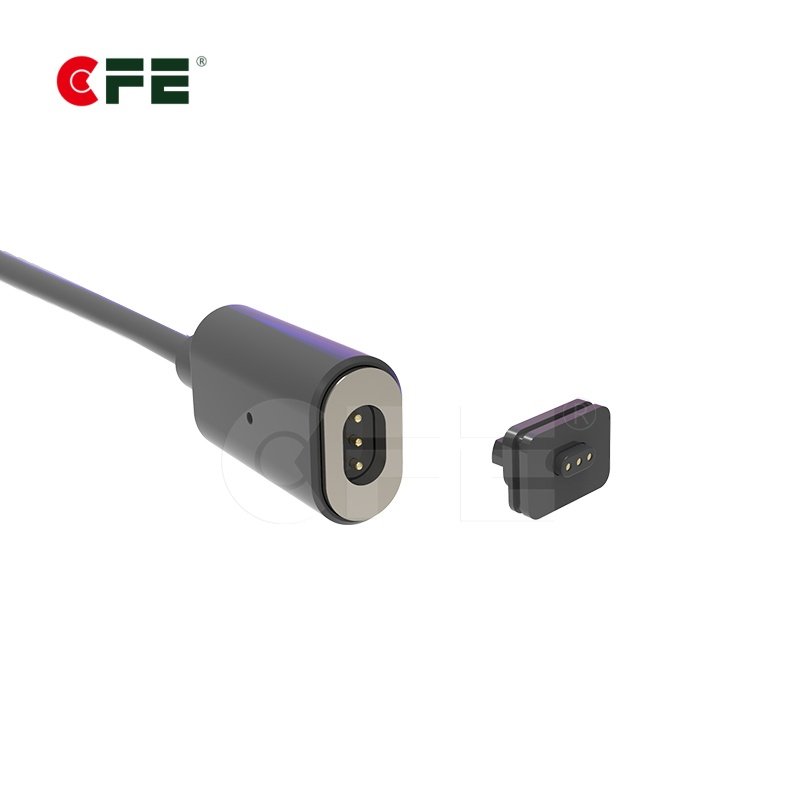

Universal type 3 pin magnetic charging cable support smart watch

[CXA-0119] Universal type 3 pin magnetic charging cable support smart watch

P/N: CXA-0119
Magnetic force: 0.4N
Rated Voltage&Current: DC 5V, 1A
Life test: 50,000 cycles ,good quality and long service life
Environment: anti-corrosion, 48 hours salt-spray test, Pass Rohs, reach, HF, environmental protection

Description

Universal type 3 pin magnetic charging cable support smart watch, CFE magnetic charging cable ensures compact design,stable connection ,diverse uses and safe protection when detached from devices, we are also focusing on developing high-performance connectors.

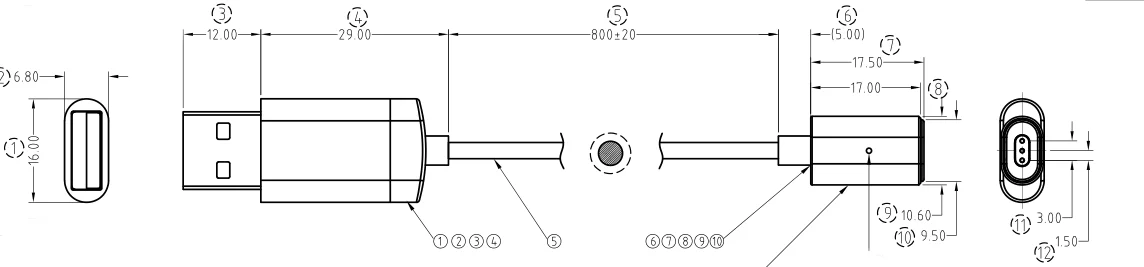

Specification of Universal type 3 pin magnetic charging cable support smart watch—Male Part

Part No.	CMA-0119
Cable Shape	Round cable, flat cable
Voltage & Current	5 V, 1 A
Material	PVC, TPE, Silica gel
Cable End	USB, JST,Adapter, Open circuit
Certification	RoHs, Reach, HF
Application	Smart watch

Universal type 3 pin magnetic charging cable support smart watch, magnetic charging cable support smart watch smart wristbands charging, magnetic cable usb

Specification of Universal type 3 pin magnetic charging cable support smart watch—Female Part

Part No.	MFA-0119
Plastic Core	HTN plastic (265°C) UL 94 V-0
Voltage & Current	5 V, 1 A
Environment	Anti-corrosion, 48 hours salt-spray test
Installation	Screw fixation,solder,structure limit
Certification	RoHs, Reach, HF
Application	Smart watch

Introduction to magnetic charging cable

— In the fierce differentiated product strategy competition, user experience has become the pursuit for any intelligent product designers. After the traditional plug-in board self-locking connector products,a new connection scheme which is the magnetic charging cable is gradually applied to the intelligent high-end product market. The connection solution has the advantages of a long life of pogo pin connector for more than 50000 times, automatic adsorption connection, easy removal of adsorption interface, high waterproof level and unlikely to loosen the machine.

— The magnetic charging cables consist of a pogo pin magnetic connector and connecting cables. It is an optimized upgraded solution based on the function of charging and statistics and signal transmission applying traditional I / O adapters, micro USB, Type-C, HDMI, RJ45. More than 20 kinds of standard magnetic charging cables and more than 300 customized ones are currently available in CFE. CFE products conform to RoHS 2.0, HF, CP65, REACH, NP, etc.

— The applications of magnetic cables enjoy increasing popularity such as Consumer Electronics, Smart Wear, Smart Home, Health Detectors, Internet of Things, Medical Industry, Household Appliances, etc.

Solutions

The founder of CFE has been involved with the R & D and manufacturing of pogo pin connectors since 2003 and has accumulated a wealth of technological experience. The mature product structure can meet the requirements of various industries, such as low impedance, high current, high life, lateral contact, etc. To provide customers with the safest and most reliable product solutions is always our pursuit and mission.
