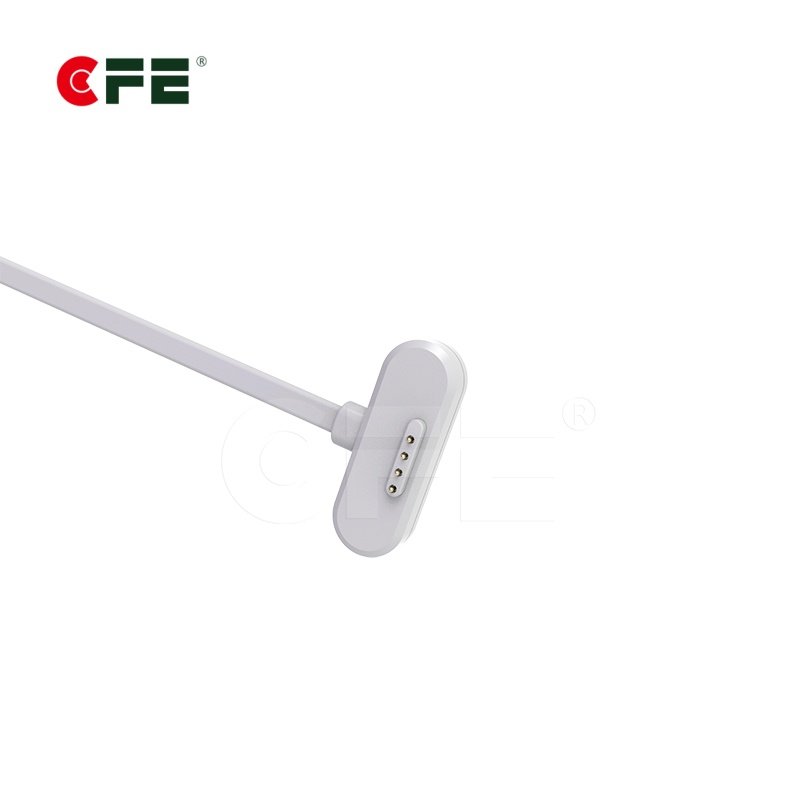

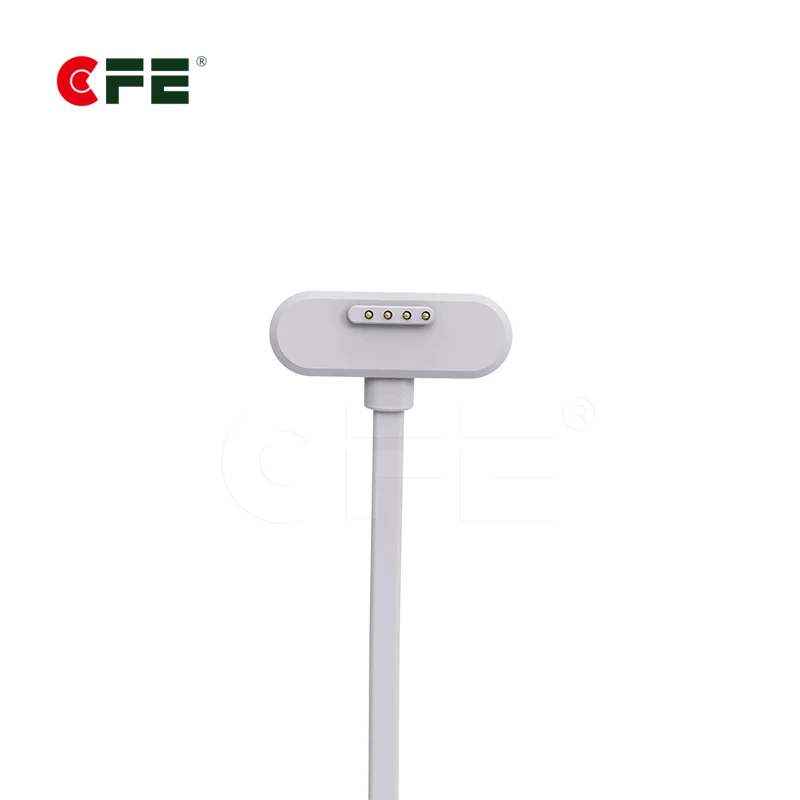

Magnetic usb 4 pin pogo pin white cable connector for children bracelet

Description

Magnetic usb 4 pin pogo pin white cable connector for children bracelet, CFE magnetic charging cable connectors having the features of the high life and short circuit protection, strong magnetic and safe etc, the best magnetic connector, it can suitable the children bracelet, we are offering finest quality in custom magnetic wire connector and magnetic connector

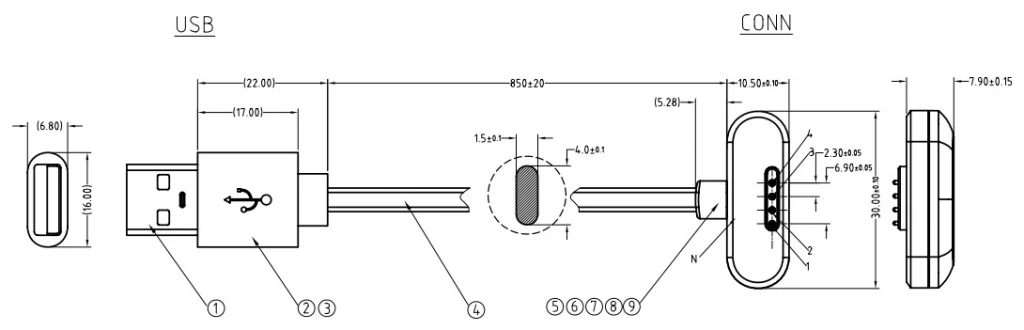

Specification of Magnetic usb 4 pin pogo pin white cable connector for children bracelet—Male Part

Part No.	CMA-0061
Contact force
Life test	50,000 cycles
Rated voltage & current	12 V, 1 A
Contact resistance	50 milliohm Max
Application	Children bracelet

Introduction to magnetic charging cable

— In the fierce differentiated product strategy competition, user experience has become the pursuit for any intelligent product designers. After the traditional plug-in board self-locking connector products,a new connection scheme which is the magnetic charging cable is gradually applied to the intelligent high-end product market. The connection solution has the advantages of a long life of pogo pin connector for more than 50000 times, automatic adsorption connection, easy removal of adsorption interface, high waterproof level and unlikely to loosen the machine.

— The magnetic charging cables consist of a pogo pin magnetic connector and connecting cables. It is an optimized upgraded solution based on the function of charging and statistics and signal transmission applying traditional I / O adapters, micro USB, Type-C, HDMI, RJ45. More than 20 kinds of standard magnetic charging cables and more than 300 customized ones are currently available in CFE. CFE products conform to RoHS 2.0, HF, CP65, REACH, NP, etc.

— The applications of magnetic cables enjoy increasing popularity such as Consumer Electronics, Smart Wear, Smart Home, Health Detectors, Internet of Things, Medical Industry, Household Appliances, etc.

Solutions

The founder of CFE has been involved with the R & D and manufacturing of pogo pin connectors since 2003 and has accumulated a wealth of technological experience. The mature product structure can meet the requirements of various industries, such as low impedance, high current, high life, lateral contact, etc. To provide customers with the safest and most reliable product solutions is always our pursuit and mission.
