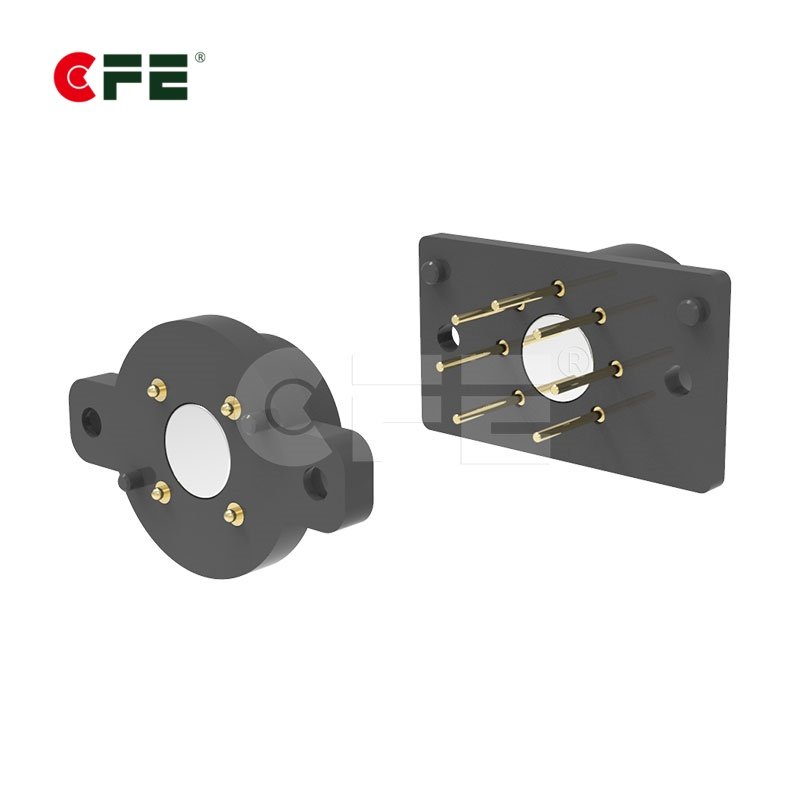

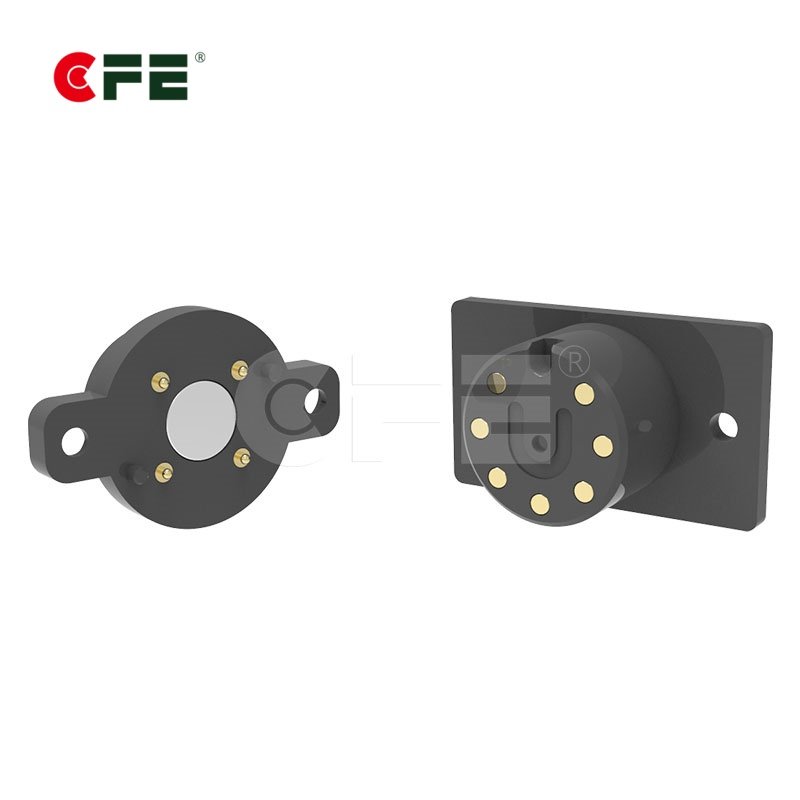

[MXA0040] Magnetic electrical connector for bicycle electronic systems

  • P/N:MXA0040
  • Magnetic force: 10 N
  • Rate Voltage&Current: DC 12 V, 2 A
  • Life test: 20,000 cycles
  • Environment: anti-corrosion, 48 hours salt-spray test
    Pass Rohs, reach, HF, environmental protection
Inquiry Now
Categories: , Tags: , ,

Description

Magnetic electrical connector for bicycle electronic systems, CFE Magnetic electrical connector can be waterproof design, suitable forbattery management systems (BMS) , the magnetic connector has the advantage of automatic adsorption connected experience，made the easy operation.

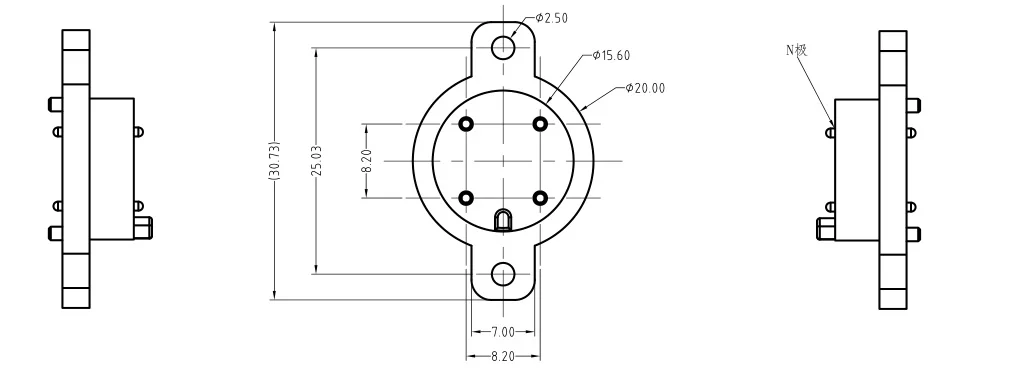

Specification of Magnetic electrical connector for bicycle electronic systems—Male Part

Magnetic electrical connector for bicycle electronic systems

Part No. MMA0040
Contact force 80±20g at 2.0mm working stroke
Life test 20,000 cycles
Rated voltage & current 12V, 2A
Contact resistance 50 milliohm Max
Application Bicycle system，Robot
 Downloaded



Specification of Magnetic electrical connector for bicycle electronic systems—Female Part

Magnetic electrical connector for bicycle electronic systems

Part No MFA0040
Rated voltage & current 12V, 3 A
Contact resistance 50 milliohm Max
Magnet NdFeB
Application Bicycle system，Robot
Downloaded



CFE magnetic connector advantages

— The magnetic connector consists of magnets on the base of the pogo pin connector, and a Ru iron boron permanent magnet to ensure the reliable and safe connection of the male and female parts.

— CFE has been involved with the customization of magnetic connectors since 2011. Combining this with the original pogo pin connector technology, CFE has accumulated multiple design solutions which have covered nearly 800 products in more than 200 fields so far.

— The magnetic connector supplements the deficiency of the traditional connectors, with the advantages of convenient insertion and extraction, safety, compact volume, easy cleaning and lateral pull-out, realizing the functions of 100% automatic positioning, automatic connection, fast insertion and extraction, separation under external force, forced disconnection to protect the connection port from damage.
