- Barrel & plunger: Brass/Be-Cu/Phosphor bronze
- Plating: Gold plated (According to customer requirements)
- Spring: SUS surface treatment
- Life test:20,000 cycles
- Rated current & voltage: DC 12V; 2.5A max

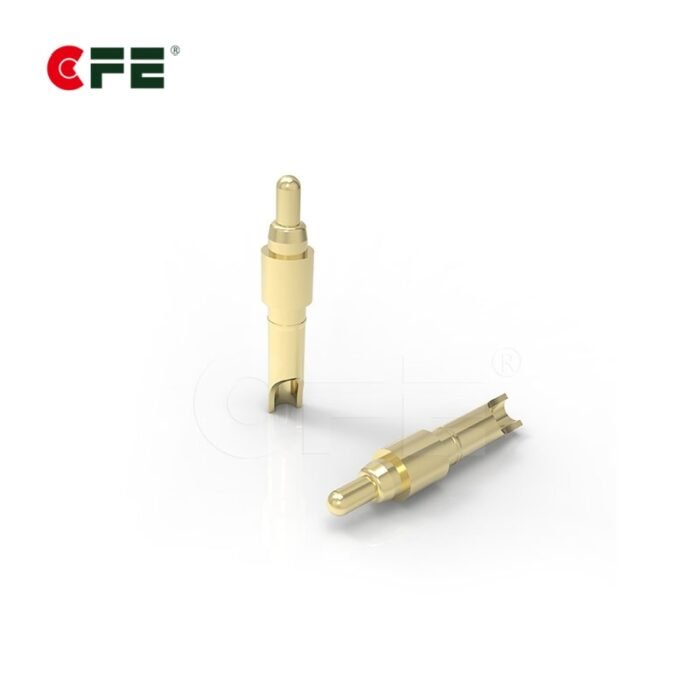

[BP103711] 2.5a solder cup type pogo pin spring contact
Description
2.5a solder cup type pogo pin spring contact manufacturer in China. Except the standard specification, we also provide the customization service for customers special needs in pogo pin connector field. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. Solder terminals are machined terminals used primarily for attaching wires to circuit boards. You may like Types of Pogo pin and their uses
Specification of 2.5a solder cup type pogo pin spring contact
|
Part No. | BP103711 | |
| Materials | Plunger | Brass 0.25um Au over Ni | |
| Barrel | Brass 0.25um Au over Ni | ||
| Spring | SUS surface treatment | ||
| Mechanical | Contact force | 85g±15% at 1.5mm working stroke | |
| Full stroke | 1.8mm | ||
| Life test | 20,000 cycles | ||
| Electrical | Rated current and voltage | DC 12V; 2.5A Max | |
| Contact-resistance | 50milliohm Max | ||

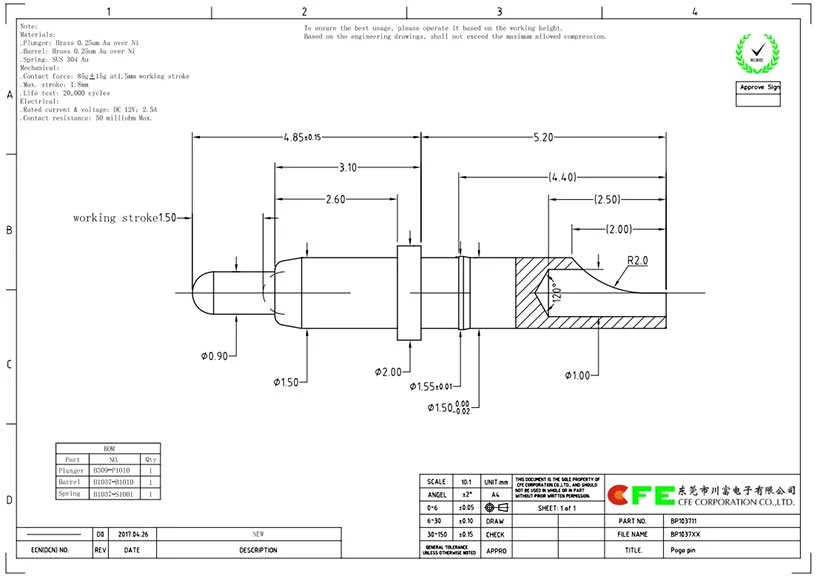

Drawing of 2.5a solder cup type pogo pin spring contact
To ensure the best usage, please operate it based on the working height. Based on the engineering drawings, shall not exceed the maximum allowed compression.
Customized service
The unit of A, B, C, D, E, F, G is mm
| Part NO. | A | B | C | D | E | F | G | Stroke(mm) | Force(g) | Current(A) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BS01711 | 7.10 | 5.30 | / | 1.30 | 1.20 | 0.80 | 0.80 | 0.7 | 50 | 1 |  |
| BS08111 | 7.80 | 6.20 | / | 1.80 | 1.20 | 0.70 | 2.50 | / | 100 | 1 | |
| BS14511 | 10.00 | 7.00 | / | / | 4.80 | 3.00 | 3.00 | 3.0 | 150 | 1 | |
| BS16911 | 10.50 | 8.50 | 1.50 | 3.50 | 2.70 | 2.00 | 2.00 | 1.0 | 100 | 3 | |
| BS17101 | 7.80 | 6.40 | 0.65 | 1.98 | 1.48 | 1.00 | / | 1.0 | 70 | 3 | |
| BS23201 | 12.00 | 7.00 | / | 4.50 | 3.40 | 2.40 | 11.00 | 4.0 | 500 | 1 | |
| BS23701 | 11.80 | 8.50 | / | 1.90 | 1.90 | 1.02 | 7.00 | 1.0 | 100 | 3 | |
| BS30111 | 11.90 | 7.60 | 2.00 | 1.90 | 1.90 | 1.02 | 4.40 | 1.2 | 100 | 4 | |
Learn more about How to order special pogo pin, If you have special requirements please contact us
You may like our customized pogo pin connector
Application of 2.5a solder cup type pogo pin spring contact
 |
 |
 |
||
Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details
- Consumer electronics products/PCB board
- Digital camera/Medical products/ Printer cartridges
- Golf handle/ Electric vehicles/ Telephony applications
- Cardiac defibrillator/Car charging /Air purifier
- LED flat luminaries/LED flash light/Tablet/Laptop/PC
- Power bank/ Digital product/ Small household electrical application
- Charging products/Signal transmission products etc
Learn more type of Pogo pin
 |
 |
 |
 |
 |
 |
|||||
| SMT/SMD | DIP | Right angle | Double head | Solder cup | Screw thread |
