- Barrel & plunger: Brass/Be-Cu/Phosphor bronze
- Plating: Gold plated (According to customer requirements)
- Spring: SUS surface treatment
- Life test:20,000 cycles
- Rated current & voltage: DC 12V; 5A max

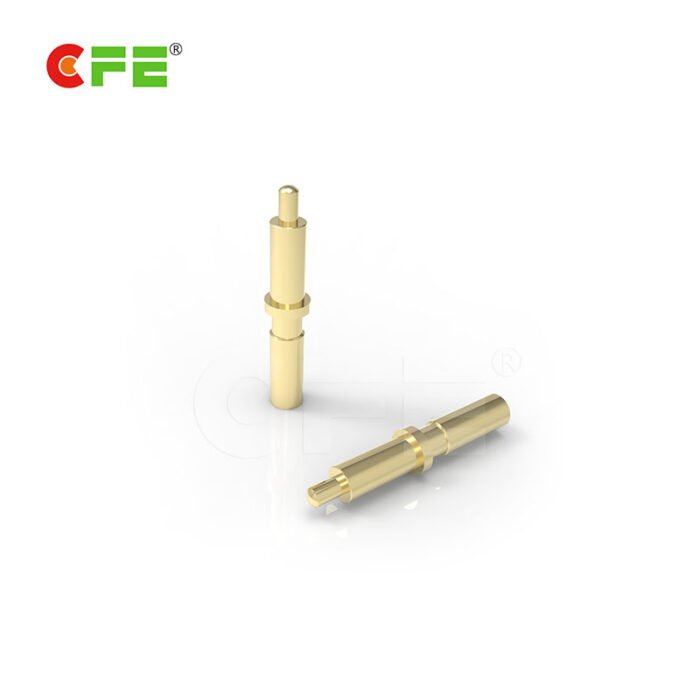

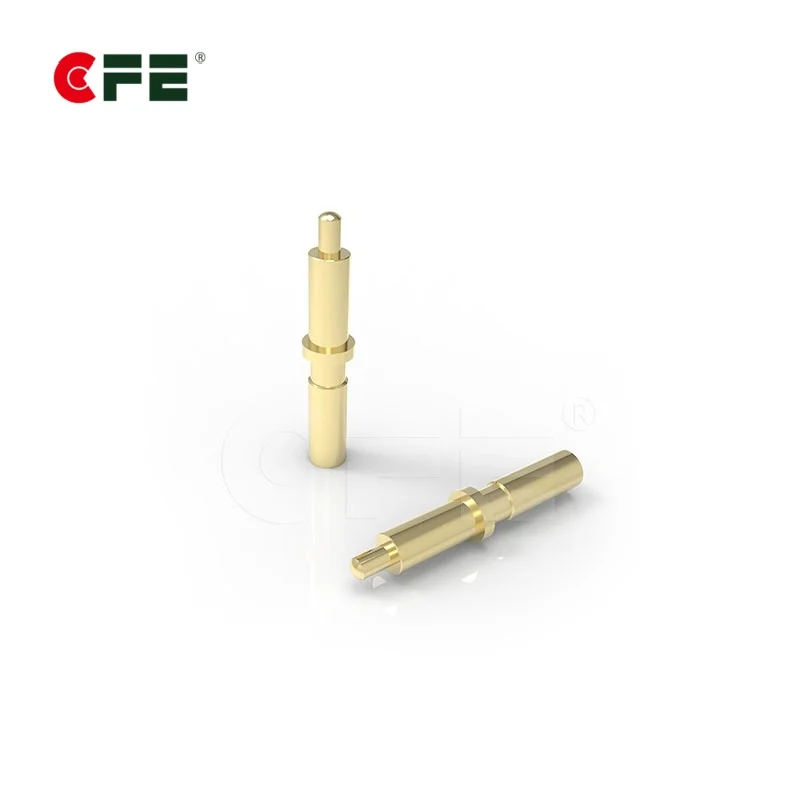

[BS25111] 5a pogo pin solder terminals supply
Description
5a pogo pin solder terminals manufacturer in China. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. Solder terminals are machined terminals used primarily for attaching wires to circuit boards. You may like Types of Pogo pin and their uses
Specification of 5a pogo pin solder terminals supply
|
Part No. | BS25111 | |
| Materials | Plunger | Brass 0.5um Au over Ni | |
| Barrel | Brass 0.5um Au over Ni | ||
| Spring | SUS surface treatment | ||
| Mechanical | Contact force | 120g±20% at 1.1mm working stroke | |
| Full stroke | 2.3mm | ||
| Life test | 20,000 cycles | ||
| Electrical | Rated current and voltage | DC 12V; 5A Max | |
| Contact-resistance | 50milliohm Max | ||
Customized service
The unit of A, B, C, D, E, F, G is mm
| Part NO. | A | B | C | D | E | F | G | Stroke(mm) | Force(g) | Current(A) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BS01711 | 7.10 | 5.30 | / | 1.30 | 1.20 | 0.80 | 0.80 | 0.7 | 50 | 1 |  |
| BS08111 | 7.80 | 6.20 | / | 1.80 | 1.20 | 0.70 | 2.50 | / | 100 | 1 | |
| BS14511 | 10.00 | 7.00 | / | / | 4.80 | 3.00 | 3.00 | 3.0 | 150 | 1 | |
| BS16911 | 10.50 | 8.50 | 1.50 | 3.50 | 2.70 | 2.00 | 2.00 | 1.0 | 100 | 3 | |
| BS17101 | 7.80 | 6.40 | 0.65 | 1.98 | 1.48 | 1.00 | / | 1.0 | 70 | 3 | |
| BS23201 | 12.00 | 7.00 | / | 4.50 | 3.40 | 2.40 | 11.00 | 4.0 | 500 | 1 | |
| BS23701 | 11.80 | 8.50 | / | 1.90 | 1.90 | 1.02 | 7.00 | 1.0 | 100 | 3 | |
| BS30111 | 11.90 | 7.60 | 2.00 | 1.90 | 1.90 | 1.02 | 4.40 | 1.2 | 100 | 4 | |
Learn more about How to order special pogo pin, If you have special requirements please contact us
You may like our customized pogo pin connector
Application of 5a pogo pin solder terminals supply
 |
 |
 |
||
Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details
- Consumer electronics products/PCB board
- Digital camera/Medical products/ Printer cartridges
- Golf handle/ Electric vehicles/ Telephony applications
- Cardiac defibrillator/Car charging /Air purifier
- LED flat luminaries/LED flash light/Tablet/Laptop/PC
- Power bank/ Digital product/ Small household electrical application
- Charging products/Signal transmission products etc
Learn more type of Pogo pin
 |
 |
 |
 |
 |
 |
|||||
