- Barrel & plunger: Brass/Be-Cu/Phosphor bronze
- Plating: Gold plated (According to customer requirements)
- Spring: SUS surface treatment
- Life test:50,000 cycles
- Rated current & voltage: DC 12V; 1A (Can be customized)
Customized pogo pin connector factory. Pogo pin is a special connector the basic structure of a turning barrel, a cutting plunger and Compression spring. The barrel tube mouth edge, keep the plunger in the barrel, by the spring provide contact force the Electrical connections between plunger and the butt joint parts. You may like Types of Pogo pin and their uses
|

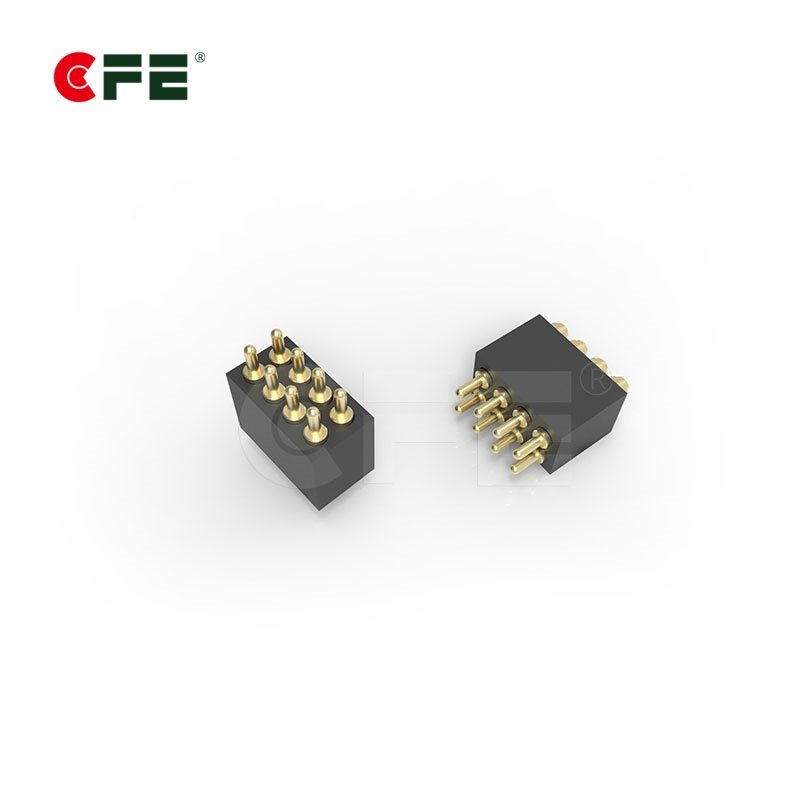

Part No. | BP11811-08127R0A | |
Materials | Plunger | Brass Au 3u” over Ni | |
Barrel | Brass 0.125um Au over Ni | ||
Spring | SUS surface treatment | ||
Mechanical | Contact force | 90g±20g at 1.0mm working stroke | |
Full stroke | 1.4mm | ||
Life test | 50,000 cycles | ||
Electrical | Rated current and voltage | DC 12V; 1A (Can be customized) | |
Contact-resistance | 50 milliohm Max |
Pogo pin Connectors developed & produced by CFE, can be applied to unlimited applications. Below are just some of the examples of how the products can be used Please feel free to contact CFE for more details
SMT/SMD | DIP | Right angle | Double head | Solder cup | Screw thread |
You may like our customized pogo pin connector
Dongguan CFE Electronic Co., Ltd. is a China leading precision spring-loaded connector manufacturing company. We focused on the development and manufacture of Pogo Pin & connector 9 years long. As the leading electronic components manufacturer in China, CFE has accomplished over 300 customized Pogo Pin chargers range from 2 pins to 30 pins. We also achieved the innovation of Pogo Pin product, which is the first invention in the Asian, the second invention around the world. What’s more, CFE also provides the short delivery times and competitive price for our clients. Learn more about us
